|Size:||48" X 96"||SWD:||0.25"|
|Material:||Aluminum Sheet,Stainless Steel/Aluminum,galvanized Plate||Application:||Protecting Mesh,Filters,Screen,Fencing|
|Type:||Expanded Mesh,Flattened And Standard,Raised Type||Technique:||Woven|

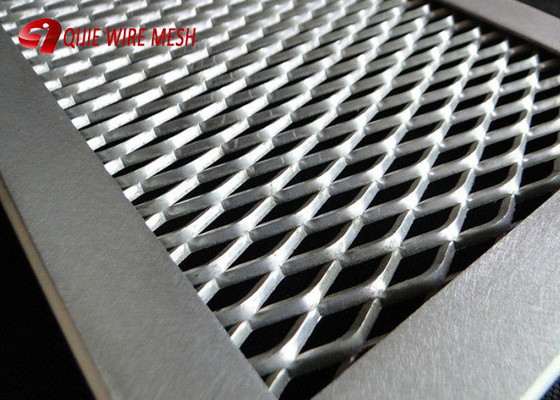

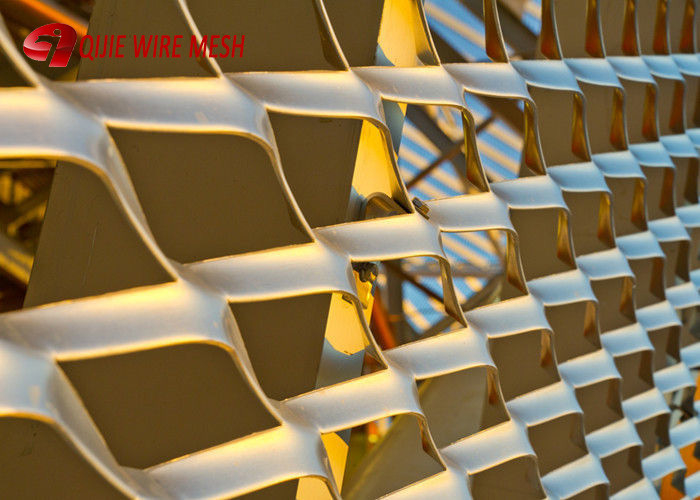

Galvanized or Aluminum or Stainless Steel Expanded Metal Mesh Sheet
1. material:expanded wire mesh usually made of stainless steel plate,copper plate,galvanized plate,
aluminum plate,alloy plate,iron or other material,we can custom according your request.
2. hole shape:diamond,hexagon or other shape
3. surface treatment:hot-galvanized,cold-galvanized,pvc coated,electro-galvanized,spray anti-rust paint and
4. features:the surface of expanded wire mesh is smooth and flat,the appearance is beautiful,the surface
treatment made it anti-rust and anti-acid and anti-alkali .the copper material made it's colour more beautiful.
SWD - Nominal dimension, Short Way of Design
LWD - Nominal dimension, Long Way of Design
When referring to a sheet size the SWD is always referred to before the LWD. For example a 4x8 sheet means 4 foot dimension is in the SWD direction and 8 foot dimension is in the LWD direction.
SWO - Short Way of Opening
LWO - Long Way of Opening
STRAND THICKNESS - Gauge thickness of the base metal
STRAND WIDTH - Amount of metal fed under dies to produce one strand.
EDGE CONFIGURATION - Condition of the edge of an expanded metal sheet. Usually refers to “open” (random) or “closed” (bond) diamond edges produced from shearing.
EXPANDING - An expanding press simultaneously slits and stretches base material to form a diamond pattern.
LEVELLING - Expanded metal is usually levelled after the expansion process by a levelling roller.
RAISED (abbreviated R) - Expanded metal as it comes from the press. The strands and bonds are set at a uniform angle to the plane of the sheet. This gives added strength and rigidity, as well as a skidding resistant surface.
FLATTENED (abbreviated F) - Expanded metal that has been cold-rolled after expansion, to provide a smooth, flat and level sheet. The flattening process reduces the original gauge of the the base metal and the strand width increases slightly. Some of the heavier expanded metals can not be flattened.
SHEARING - Cutting expanded metal to size to produce various sheet sizes. May be “bond” or “random” sheared.
Expanded metal is often referred to as diamond punched, stretched metal or security mesh. Due to its method of manufacture, expanded metal is one of the most economical steel mesh, or grating material, on the market.
The strength of expanded metal runs along the long dimension, not the short dimension. Sheets of expanded generally come in 4’ short dimension and 8’ long dimension. The long dimension is approximately double that of the short dimension. Expanded metal open area percentage typically falls between 60% to 80%.
This product is ideal for security, decoration or traction applications.
|Aluminum Expanded Mesh Detail Specification||Sheet Width (mm)||Sheet Length(mm)||Weight
|Thickness(mm)||Opening in Width(mm)||Opening in length (mm)||Stem(mm)|
