Product Details:

Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: CBT65

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: Inside waterproof paper , outside plastc weaving bags or carton box
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance Before loading
Supply Ability: 100ton per week
Contact Now
Detailed Product Description
Surface Treatment: Hot Dipped Galvanized Type: BTO-10 ,BTO-12,BTO-18,BTO-22,BTO-25,BTO-28, BTO-30,CBT-60,CBT-65
Loops: 56 Loops , 33 Loops , 55 Loops , 144 Loops Clips: 5clips , 3 Clips , Without Clip
Packing: Inside Waterproof Paper Material: Hot-dipped Galvanized , Stainless Steel 430,

Razorwire Flat profile – a useful alternative to Concertina Razor wire

When the over hang of concertina is a problem, for instance if the protrusion of Concertina Razor wire beyond your boundary is a problem then Flat profile being vertical solves this issue. The other advantage is its neater in appearance than Concertina and is also very easy to fit.


Barbed Tape Wire Specification
Outside DiameterNo. of LoopsStandard Length per CoilTypeNotes
450mm337-8MCBT-60.65Single coil
500mm5612-13MCBT-60.65Single coil
700mm5613-14MCBT-60.65Single coil
960mm5614-15MCBT-60.65Single coil
450mm568-9M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
500mm569-10M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
600mm5610-11M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
600mm568-10M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
700mm5610-12M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
800mm5611-13M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
900mm5612-14M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
960mm5613-15M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
980mm5614-16M (5 CLIPS)BTO-10.12.18.22.28.30Cross type


Product features: anticorrosion, prevent aging, sun resistance, weather resistance, etc. Corrosion forms of electroplating, hot dip.
Mesh:
Conductor material: high quality, hot dip galvanized high carbon steel wire, stainless steel wire, etc.
Blade material: high quality, hot dip galvanized steel plate, stainless steel plate.
Process: it USES the steel plate (dao) package attached stamped on the hot dip galvanized steel wire (core), made the blade sharp Angle of galvanized steel or stainless steel sheet, high tensile steel wire do a mix of conducto
Features:
Razor wire and stinging scraper type, is a kind of protective developed in recent years, the capability of isolation of new fence products. A sharp knife stab type by double occurs after snapping into shape, are beautiful and chilling. Has played a very good deterrent effect. Beautiful and practical
USES:
Countries around the world have razor wire is widely used in military stronghold, prison, government agencies, Banks, and residential fence, private house, villa walls, doors and Windows, highway, rail barrier and border to security protection


Installation of Razorwire Flat Profile

Installation of Razor Wire (flat profile) is particularly simple. It can either be supported by clipping or wire tying to the surface part way up or alternatively by fitting brackets to the existing fence posts and then running a line of support wire through the top hole of the bracket and weaving it through the Razor Wire.
Either way we can supply you with the necessary vertical uprights, straining wire and bolting to enable self fit to a fence or wall.

Supplied in 10m x 500mm rolls



Flat Razorwire Specs

PRODUCTBLADE STYLEBLADE THICKNESSWIRE DIAMBARB LENGTHHEIGHT
BT-22Flat Profile Razorwire Diagram0.5MM2.5MM22MM500MM

Choosing your Razor wire

The bigger the diameter the more of an obstacle and deterrent the Razor wire is. 450mm diameter is the smallest size we recommend for domestic type applications. This size is normally an adequate deterrent and also the easiest to fit as standard support brackets will generally do for this diameter and weight of razor wire. 730mm or even 900mm diameter will require specially made brackets for the installation.
If fitting to the ground then we would recommend a size that cant be vaulted over, then the suggested options would be to install a single run of 900mm diameter Razorwire or alternatively stack smaller diameter Razorwire on top of each other either vertically or in a pyramid fashion.

Razorwire Flat Profile – A Useful Alternative To Concertina Razor Wire With Clips



Points to note when selecting Razor Wire

  • The core wire diameter:
    2.5mm is the industry standard, anything less has proportionately less tensile and inherent strength.
  • The number of loops per coil
    This determines the amount of Razorwire on the coil and therefore the profile density when deployed, an important point when comparing prices. All our coils have 55 loops per coil, this means the coils can be extended easily up to 10m whilst maintaining a dense profile of Razorwire.
  • Stainless Steel or Galvanised?
    The environment the product is being deployed in may determine whether Stainless Steel or Galvanised is the best option. Stainless Steel is considerably more expensive but offers greater durability especially in salt air environments and over time will outlast Galvanised therefore making it the best long term option in salt air. However Galvanised is more than adequate for most UK regions and applications. We would always suggest you check the level of zinc coating when selecting Razorwire, all our Galvanised products are 200g/m2, if the supplier cant provide the information, you may only be getting a product with 60g/m2 which will deteriorate and rust much more quickly.
  • Blade type
    Smaller blades such as BTO10 (10mm) are quite small and therefore less of a deterrent, larger blade profiles such as CBT65 (65mm) are much more effective but the blade type will also be reflected in the price.
  • Blade thickness
    0.5mm is the industry standard, anything less is likely to bend easily.

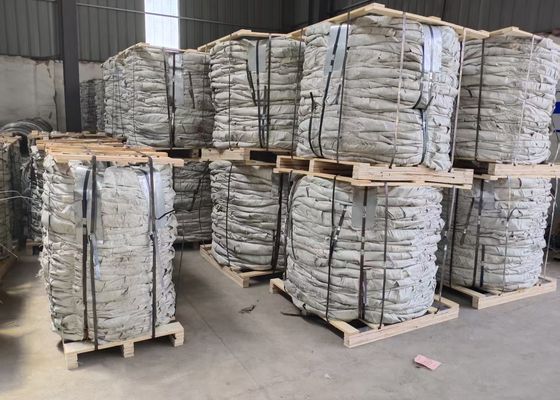

razor wire loading
razor wire loading

concertina razor wire when pull open
concertina razor wire when pull open

razor wire with clips
razor wire with clips

security fence with razor wire
security fence with razor wire
