Product Details:
Payment & Shipping Terms:
|
| Barb Length: | 10mm | Color: | Silver |
|---|---|---|---|
| Barbed Distance: | 3" | Coil Outside Diameter: | 960mm |

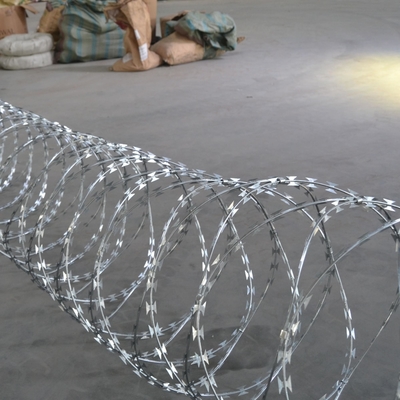

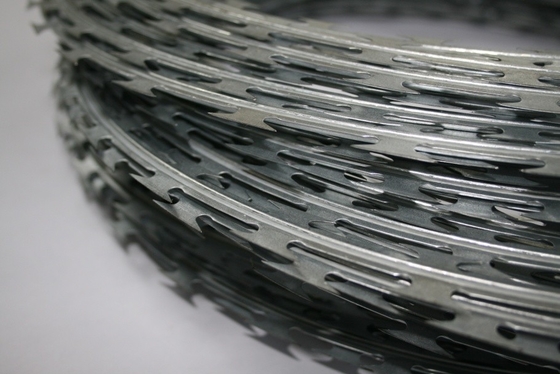

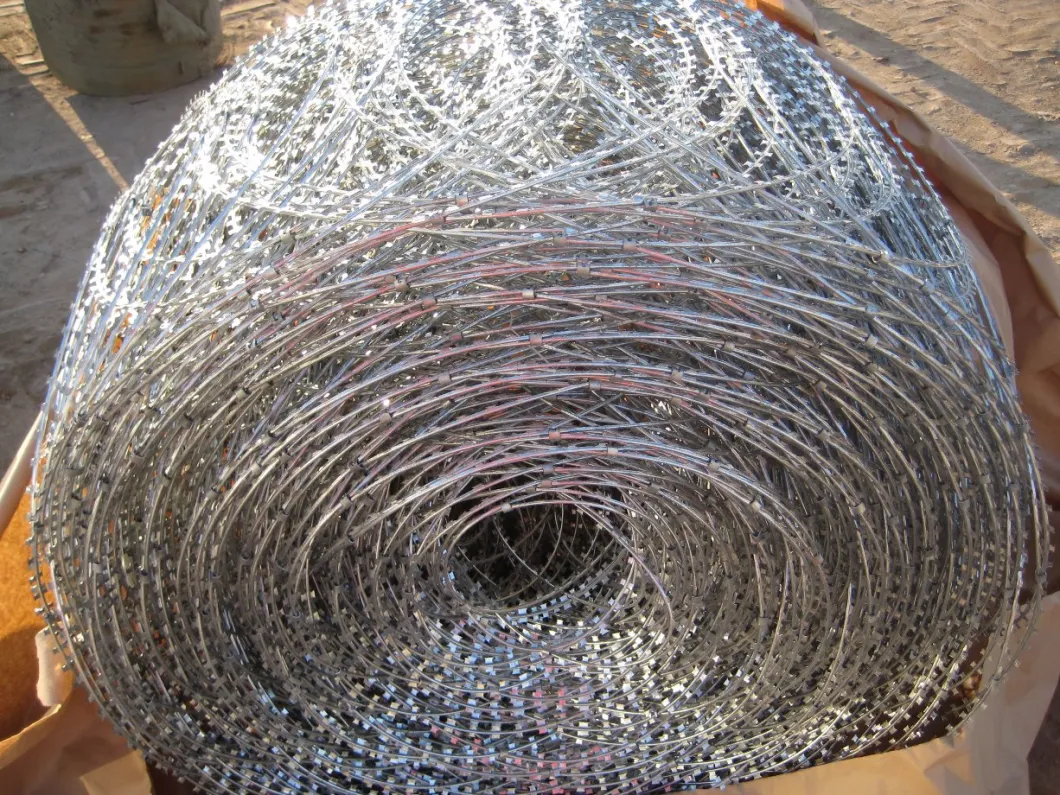

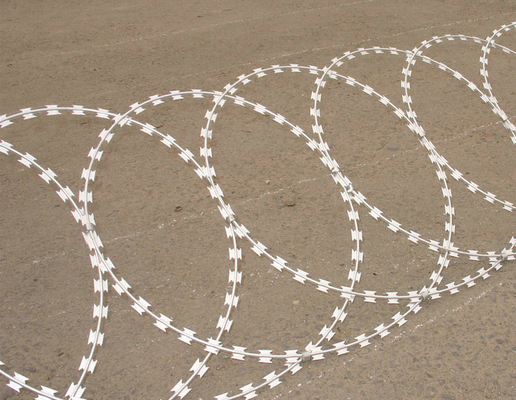

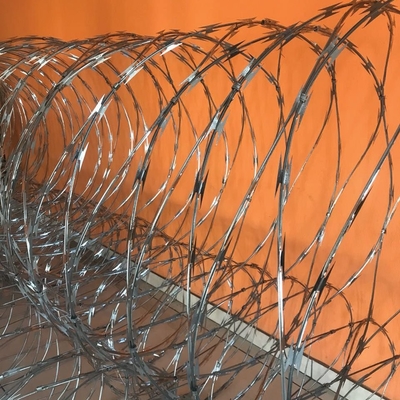

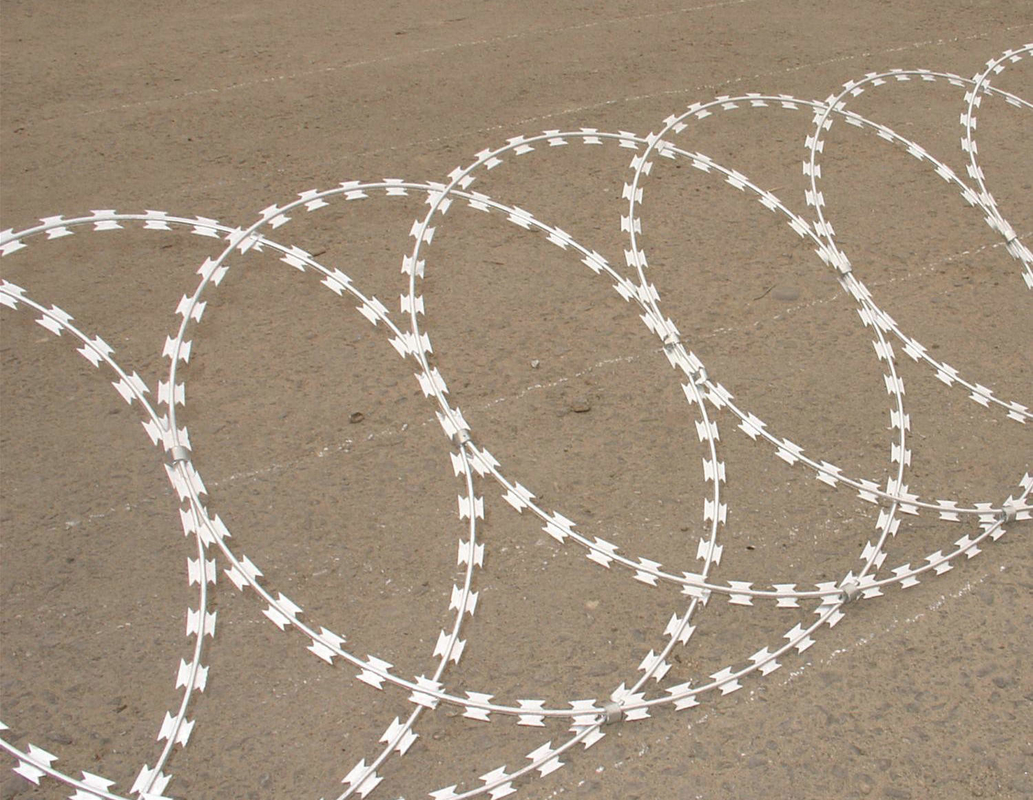

| Specification: | 7-16m | Name: | Bto-22 Cbt-60 Cbt-65 Concertina Razor Coil |
| High Light: | concertina razor coil galvanized,cbt 65 concertina razor coil,galvanized cbt 60 razor wire |
||
| Reference number | Thickness | Wire Dia | Barb length | Barb width | Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Specification of concertina razor wire | ||||
| Outside diameter | No.of loops | Standard length per coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5clips) | CBT-10.10.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5clips) | CBT-10.10.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
