Product Details:
Payment & Shipping Terms:
|
| Barbed Distance: | 26-100mm | Coil Outside Diameter: | 450mm |
|---|---|---|---|
| Sample: | Available | Specification Diameter: | BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65 |
| Wire Gauge: | 2.5mm | Barb Length: | 18,22,30,60,65 |
| Color: | Silver | ||
| High Light: | bto-18 concertina razor wire,hd gi concertina razor wire,bto-18 gi concertina wire |
||

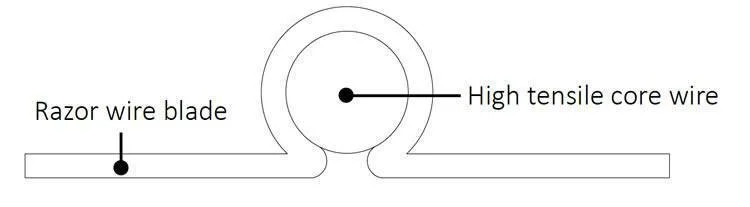

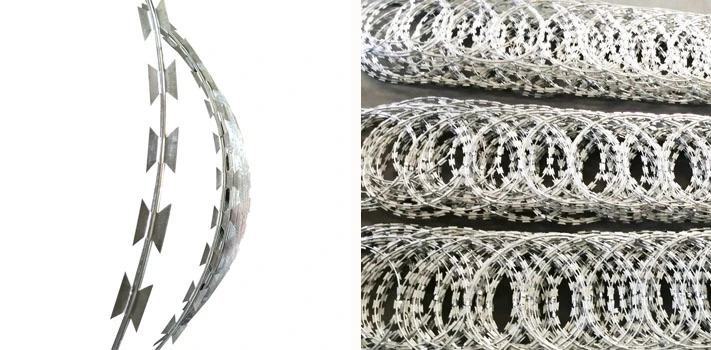

Product Description| FEATURE | Modern and economical way as perimeter barriers against illegal invasion to restricted areas. Attractive design in harmony with natural beauty. Fabricated from hot-dipped galvanized steel or stainless steel, high resistance to corrosion. Sharp blade with multiple profiles has piercing and gripping action, which performs psychological deterrent to intruders. Abrasion resistance for long service life. Enclosed high tensile core wire makes it difficult to cut with standard tools. Provides much better security compared with traditional barbed wire. Easy installation and low maintenance. |
| Razor Wire Specification | |
| Material: | Stainless steel (304, 304L, 316, 316L, 430), carbon steel. |
| Surface Treatment | Galvanized, PVC coated (green, orange, blue, yellow, etc.), E-coating (electrophoretic coating), powder coating. |
| Dimentions | Modern and economical way as perimeter barriers against illegal invasion to restricted areas. Attractive design in harmony with natural beauty. Fabricated from hot-dipped galvanized steel or stainless steel, high resistance to corrosion. Sharp blade with multiple profiles has piercing and gripping action, which performs psychological deterrent to intruders. Abrasion resistance for long service life. Enclosed high tensile core wire makes it difficult to cut with standard tools. Provides much better security compared with traditional barbed wire. Easy installation and low maintenance. |
 |
|

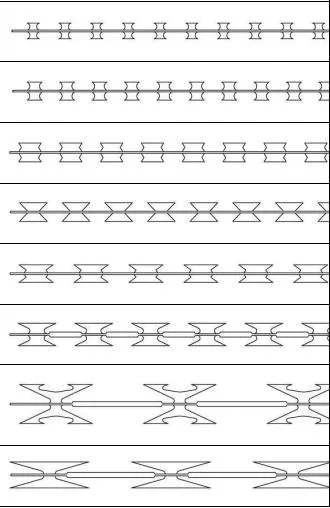

| No. | Blade Profiles | Blade Thickness | Core Wire Diameter | Blade Length | Blade Width | Blade Space |
| BTO-10 |  |
0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
| BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 | |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 | |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |
| CBT-68 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |

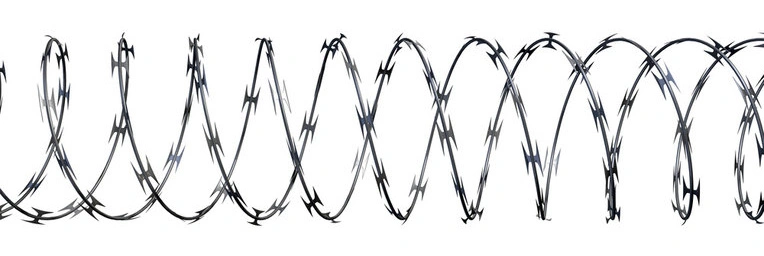

| Spiral Razor Wire | |

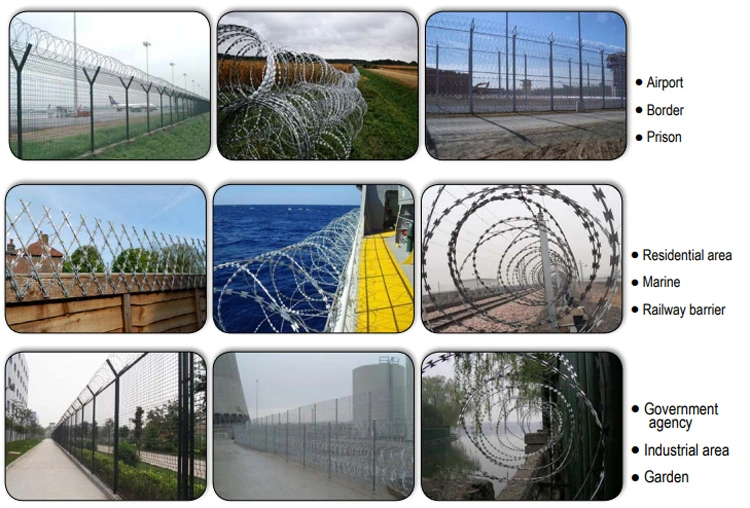

| To add primary security on borders or in residential areas, governmental agencies. Spiral razor wire is the simplest pattern in a barbed tape coil where there are no clips binding adjacent loops and each coil loop is left free in its natural spiral. Spiral razor wire can also be used as straight runner wire when stretched totally. |
 |
| Feature Spring wire for extra strength. Custom made parameters are available. Installed onto the existing fences or brick/wood walls. Easy installation and no maintenance cost. |
|
| Blade Type BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65. |
|
| Spiral Razor Wire Coil Specification | |||
| Diameter(mm) | Loops per coil | Clips | Recommended Stretch Length(m) |
| 200 | 33 | - | 6 |
| 300 | 33 | - | 10 |
| 450 | 33 | - | 15 |
| 600 | 33 | - | 15 |
| 750 | 33 | - | 15 |
| 900 | 33 | - | 15 |

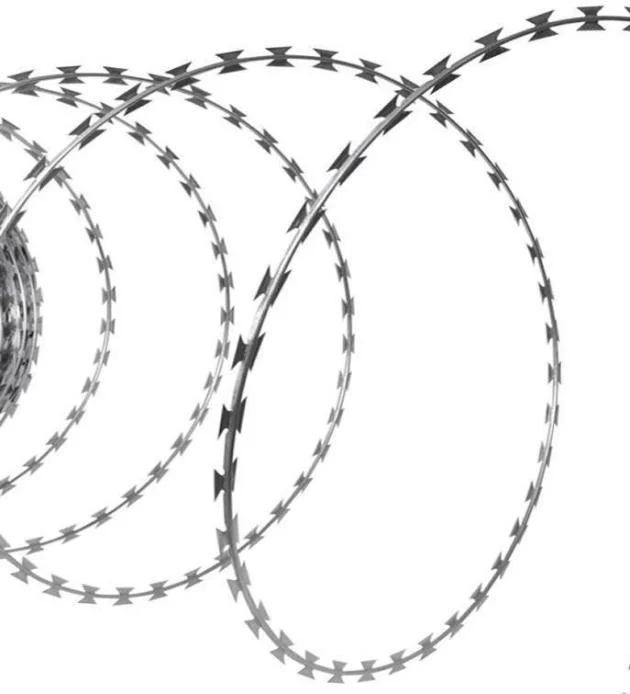

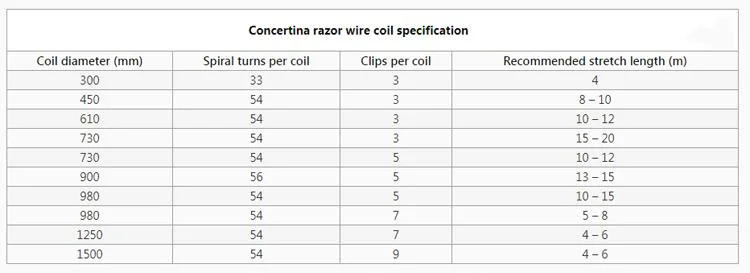

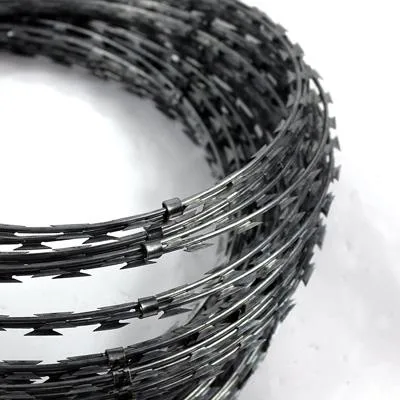

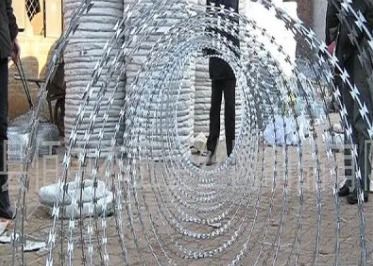

| Concertina razor wire | |
 |
Concertina wire is fabricated by attaching adjacent loops of helical coils to one another at specified points on the circumference, forming an accordion-like configuration. In this way, there are no gaps of sufficient size for persons to squeeze through. It provides unrivaled security and is widely used in applications such as border barriers. |
| Feature Galvanized steel or stainless steel construction for corrosion resistant. Visual and psychological deterrent to unwanted intruders. Clipped form increases time for breaking in. Multiple blade specs for choice. No maintenance cost. |
|
| Blade Type BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65. |
|
 |
|
| Line Formed Razor Wire | Flat Wrap Razor Wire |
| BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65. | BTO-10, BTO-22, BTO-30. |

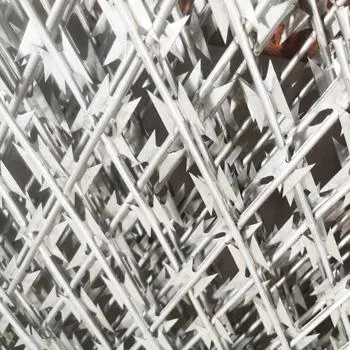

| Razor Mesh | |
| Welded Razor Wire in Mesh Form With Diamond and Rectangular Openings, Three Finishes Available. Razor mesh is one of the security fencing products that can be used to protect industrial, commercial and government institutions. The typical feature of razor mesh is that it's a complete security fence requiring no additional top options when installed. |
 |
| Feature Extremely hard to cut with standard tools. Galvanized steel, stainless steel and PVC coated with custom colours are available. Nearly impossible to climb. |
|
