Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Steel Sheet | Application: | Protecting Mesh, Fence Mesh |
|---|---|---|---|
| Finish: | Hot Dipped Galvanized | Coil Outside Diameter: | 960mm |
| Extended Length: | 15m | Name: | Concertina Razor Barbed Wire |
| High Light: | bto-12 concertina razor barbed wire,960mm concertina razor barbed wire,hot dipped galvanized concertina razor wire |
||
Galvanized Razor Barbed Wire Concertian Razor Wire Coil Razor Wire
Hot Dipped Galvanized Concetrtina Razor Barbed Wire Introduction

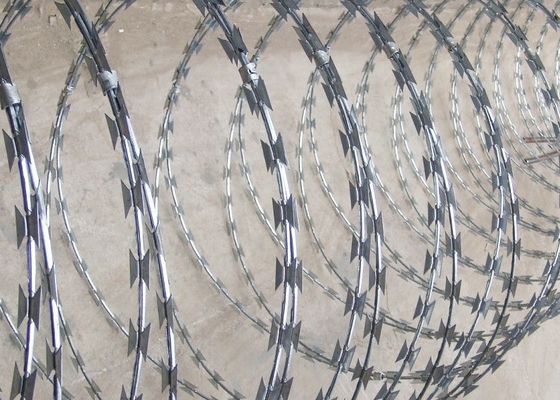

Razor barbed wire is composed of blade and core wire. The blade is made of galvanized steel sheet or stainless steel sheet, which is punched into blade shape. And the core wire is high tension galvanized iron wire, or stainless steel wire, plastic barbed wire. Razor barbed wire is easily and expediently installation.
Sorts of the Hot Dipped Galvanized Concetrtina Razor Barbed Wire:
1). Single loop razor wire (Coin type)
2). Double loop concertina razor wire (Cross type)
3). Flat razor wire (Flat/Ring type)
4). Welded razor wire mesh panel (Welded type)

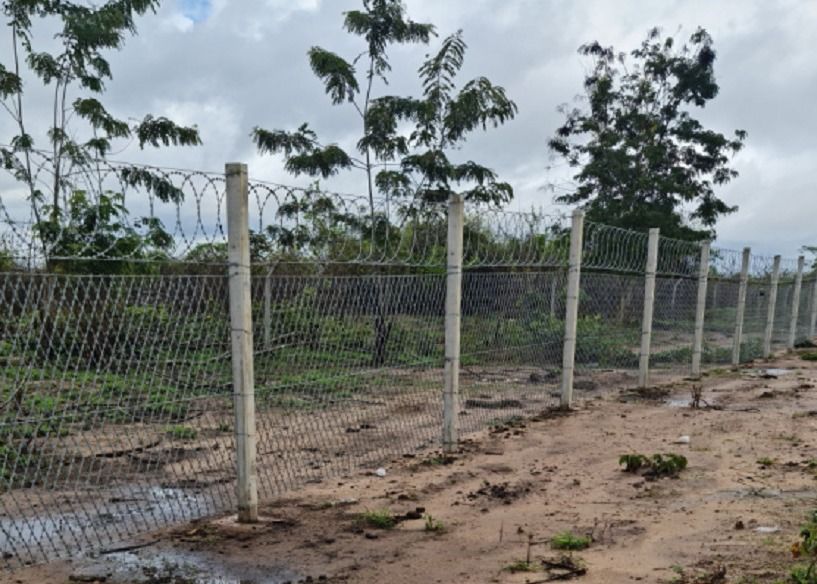

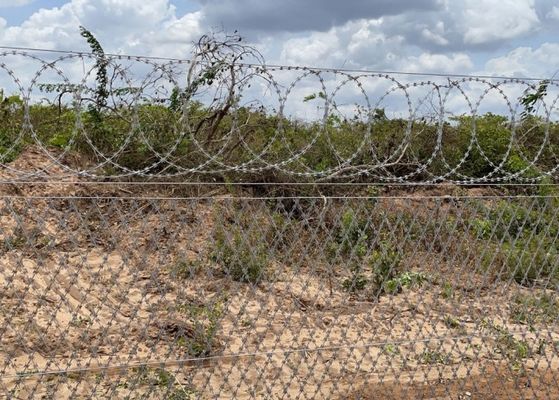

Cross type (double loops) razor barbed wire is also called concertina barbed wire. The two contiguous razor barbed wires cross and fastened by iron clips. The steel plate is punched and cut into sharp blade strip and enwrapped the mid-carton steel wire (core wire). It's widely used in the airport, prison, railway, etc.
| Razor Blade Specification: | ||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel. Standard packages products are shown in the tables above, special specifications available on request. |
||||||||||||||||||||||||||||||||||||
Specifications:
| Reference number | Thickness | Wire Dia | Barb length | Barb width | Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Specification of concertina razor wire | ||||
| Outside diameter | No.of loops | Standard length per coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5clips) | CBT-10.10.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5clips) | CBT-10.10.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
