Product Details:
Payment & Shipping Terms:
|
| Material: | Black Wire, Spring Steel Wire, 65mn | Aperture: | 0.8 - 8 Mm |
|---|---|---|---|
| Size: | 1.5mx1.95m | Install: | Hooked |
| Surface Treatment:: | Galvanized Or Painted | Mesh Size: | 1mm - 100mm |
| Hole Type: | Square, Rectangular And Long Slot. | ||
| High Light: | vibrating stainless steel woven screen,304 stainless steel woven screen,ss 304 woven metal screen |
||

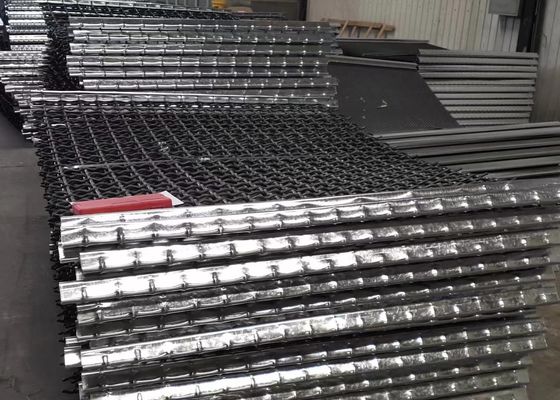

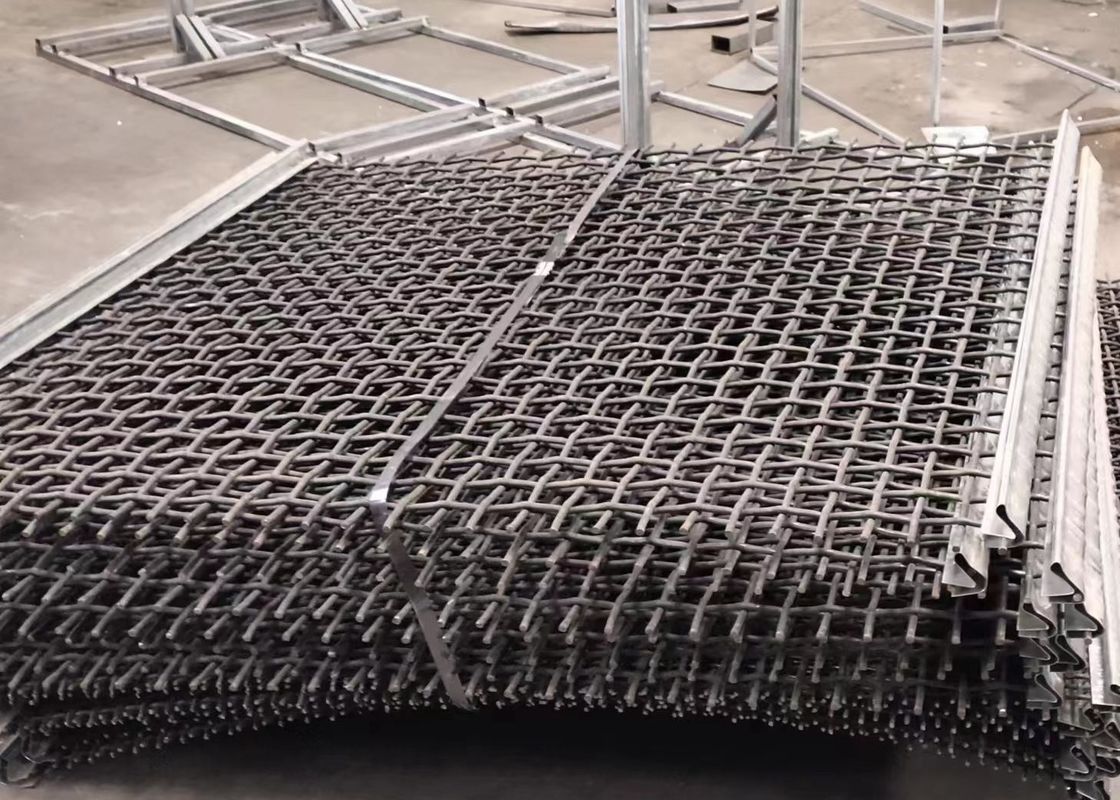

Manganese Crimped Crusher Vibrating Mesh/Stone Screen Mesh/Hooked Mine Sieving Mesh
Crimped wire mesh is a wire mesh product that the wire has been embossed by a ginning machine and then was woven into a metal mesh of different specifications through a new type of woven mesh machine.
Crimped woven wire mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
Product Name: crimped wire mesh, Square wire mesh, quarry screen mesh, mining screen wire mesh
Material: mild steel/low carbon steel, carbon iron wire, 65Mn steel wire.
Wire diameter: 0.5-22mm
Hole size: 1-30mm or as your requested
Width: 0.5-1.5m
Length: 1-30m or as your requestd
1. Double Crimp Woven Wire
Used for medium to heavy wire in relation to screen opening size.
2. Lock pre-crimp mesh
Unlike plain crimped mesh, lock crimped mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.
3. Flat Top Woven Wire
Flat top is similar to the lock crimp, but all of its crimping is offset to one side of the material. This creates a smooth top surface-with no high points-as all wires are woven on a single plane. Its bottom side, however, has crimp bumps approximately twice the height of lock crimp bumps. Flat top was originally created to allow for the smooth flow of materials over the surface and provide a flat face for use as backer screens. Flat top is ideal for aggregate sizing and sorting, agriculture, filtration, and heat-treating applications.
4. Intermdiate Crimp Woven Wire
Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).
| Name | Heavy duty wire Crimped Wire Mesh.Mine Mesh. Vibratingscreen mesh |
| material | 65Mn,45#,50#,55#,60#,70#,72A, 304, 316, 316L |
| wire | 0.8mm-12.7mm |
| Opening | 2mm to 100mm |
Applications
Used for
Packing
Packing: In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.
