SUS 304 Fly Screen Mesh , Stainless Steel Insect Screen Mesh Roll Nature Color

SUS 304 Fly Screen Mesh , Stainless Steel Insect Screen Mesh Roll Nature Color
SUS 304 Fly Screen Mesh , Stainless Steel Insect Screen Mesh Roll Nature Color SUS 304 Fly Screen Mesh , Stainless Steel Insect Screen Mesh Roll Nature Color SUS 304 Fly Screen Mesh , Stainless Steel Insect Screen Mesh Roll Nature Color SUS 304 Fly Screen Mesh , Stainless Steel Insect Screen Mesh Roll Nature Color

Large Image :  SUS 304 Fly Screen Mesh , Stainless Steel Insect Screen Mesh Roll Nature Color

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 18 x 14 mesh
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: wood case, palelts
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000meters per week
Detailed Product Description
Mesh: 18 X 14 Mesh Surface Treatment: Nature Color
Material: SUS304 Color: Nature
Products Name: Stainless Steel Insect Screen Width: 6ft
Length: 30meters Use: Window Insect Screen
High Light:

insect screen fabric

,

insect screen mesh

SUS 304 Fly Screen Mesh , Stainless Steel Insect Screen Mesh Roll Nature Color​


Stainless steel security window screen is also called security insect screen, security mesh, safety net, bulletproof net, guard against theft window screening, It is made of high quality stainless steel wire.



By cutting, flatting, cleaning and then electrostatic powder coating, the mesh flat, best transmittance, same longitude and latitude curvature, better transmittance, anti-mosquito, anti insect. It is the first choice of safety production for anti-theft, bulletproof and home & office.Because it usually used for the doors and window, we also call it as metal security doors and windows screen.

SUS 304 Fly Screen Mesh , Stainless Steel Insect Screen Mesh Roll Nature Color 0

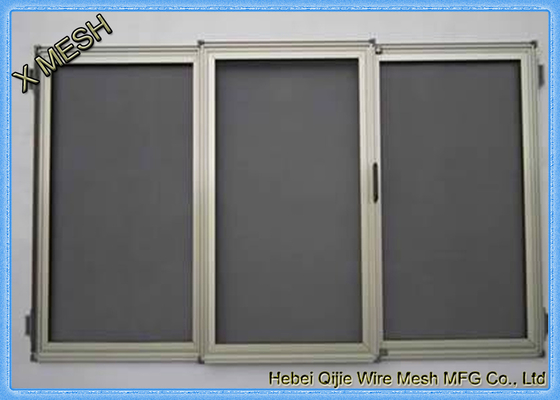

stainless steel window screen-001

stainless steel window screen

stainless steel window screen-002



Material Of stainless steel insect screen:
stainless steel 304 ,316,316L mesh, carbon steel mesh
Aperture: 11x11mesh, 12x12 mesh, 14x14mesh,etc. .
Wire diameter: 0.7mm,0.80mm, 0.90mm, etc.



Characteristics of stainless steel insect screen:
Stainless steel insect screen has nice properties, such as good stablity, rust-resistance, heat-resistance, acid-resistance and corrosion-resistance and so on.
With those unique features, stainless steel window screening could be applied under high temperature workshops and civil constructions.
Various of Colors:
The color of stainless steel window screening could be white, green, black,etc. which could be ordered according to cunstomers' requirements.



Material Mesh per inch Wire Dia (mm) Wire Dia (inch) Open Area
AISI 316 or 304 10 x 10 0.9mm 0.035" 41.7
AISI 316 or 304 10 x 10 1.2mm 0.028" 27.8
AISI 316 or 304 10 x 10 0.8mm 0.032" 46.9
AISI 316 or 304 10 x 10 1.15mm 0.045" 29.9
AISI 316 or 304 11 x 11 0.8mm 0.032" 42.5
AISI 316 or 304 11 x 11 0.7mm 0.027" 48.3
AISI 316 or 304 12 x 12 0.7mm 0.027" 44.8
AISI 316 or 304 12 x 12 0.58mm 0.023" 52.8
Special mesh can be made according to customers requirement



Feature

  • Prevent from mosquitoes, flies and other insects.
  • Resist the thieves and intruders.
  • Fire proof and knife proof.
  • Equal aperture and wire diameter.
  • High tensile.
  • Long life and durable.
  • Easy to clean and install.
  • Resistance for corrosion and rust.
  • Adjust for harsh environments such as hurricane or storm.
  • Clear from inside and vague from outside.
  • Excellent for fresh air flowing.

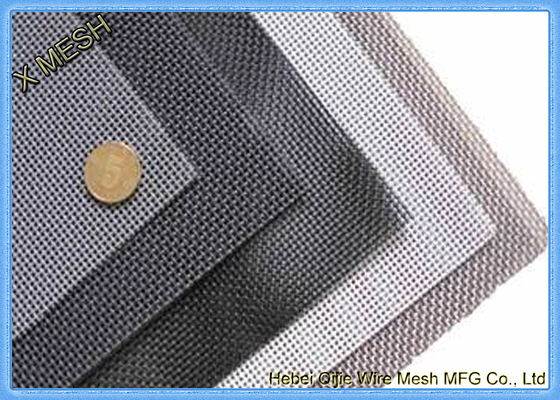

SUS 304 Stainless Steel Insect Screen-S0001

SUS 304 Stainless Steel Insect Screen-S0001



SUS 304 Stainless Steel Insect Screen-S0002

SUS 304 Stainless Steel Insect Screen-S0002



Application:

  • Stainless steel security screen can resist the thieves and intruders, so it is used in the residences, hotels and other place for security.
  • Due to the anti-mosquitoes and flies feature, it can be used in the windows, doors, porches and patios to prevent the harmful insects.
  • Stainless steel security screen can resist the corrosion, rust and fire, it can be used in the harsh environments where is corrosive, dusty. It can also be used in the fire fighting accesses.
  • Another importance feature of the stainless steel security screen is bullet-proof, so it can be used in military base, and other safety places.

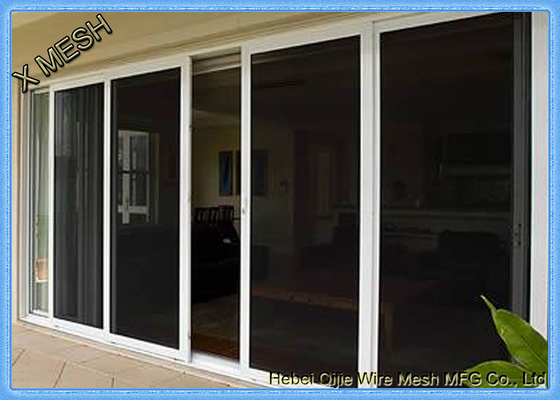

SUS 304 Stainless Steel Insect Screen - S0003

SUS 304 Stainless Steel Insect Screen - S0003

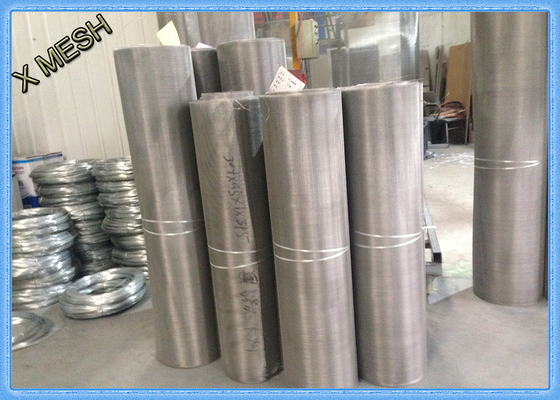

SUS 304 Stainless Steel Insect Screen - S0004

SUS 304 Stainless Steel Insect Screen - S0004
