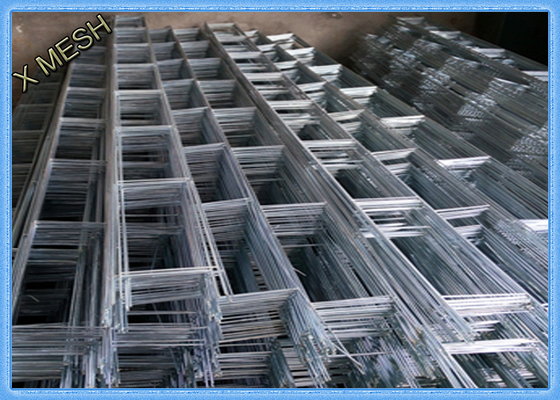

9 Gauge Hot Dipped Galvanized Brick Construction Block Ladder Mesh 10' Length

9 Gauge Hot Dipped Galvanized Brick Construction Block Ladder Mesh 10' Length
9 Gauge Hot Dipped Galvanized Brick Construction Block Ladder Mesh 10' Length 9 Gauge Hot Dipped Galvanized Brick Construction Block Ladder Mesh 10' Length

Large Image :  9 Gauge Hot Dipped Galvanized Brick Construction Block Ladder Mesh 10' Length

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 9gauge
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: bundle
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 10000 pieces per week
Detailed Product Description
Wire Diameter: 9gauge Surface Treatment: Galvanized
Length: 10' Width: 2'' 4'' 6'' 8'' 10'' 12'' 14''
Material: Stainless Steel Wire,Galvanized Steel Wire,Black Wire Mesh Application: Screen,Woven Wire Mesh
Weave Style: RDW Technique: Perforated
Type: Weave Wire Mesh,Expanded Mesh Color: Sliver
Highlight:

metal mesh screen

,

metal mesh fabric



9 Gauge Galvanized Brick Construction Block Ladder Mesh 10' Length



The reinforcing ladder structural mesh is configured by welding of galvanized steel rod in H form or designed angle. Galvanized before welded or galvanized after welded ladder mesh products are provided by Concreate for horizontal joint reinforcement of the masonry wall system. In construction, the ladder mesh is put embedded in the horizontal mortar joints of masonry walls. It consists of two parallel side wire rods with cross rods welded at 16” (400 mm) O. C., thus forming a ladder configuration. Overall measurement (side-to-side rod) is approximately 2” (50 mm) less than the nominal wall thickness.



Ladder mesh has long proven to be necessary for superior performance of masonry wall construction. Being embedded into the horizontal mortar joints of masonry walls, it can greatly reduce wall cracking caused by thermal stresses, improve the resistance to water penetration.



Truss is available with different main wire nos (2 wires, 3 wires and 4 wires) for specific structural loading situations, widths to suit different block or brick leaf construction.

Standard ladder mesh main wire and cross wire diameter are 9 gage.
Heavy duty ladder mesh main wire diameter is 3/16”and cross wire diameter is 9 gage.
Super heavy duty ladder mesh main wire and cross wire diameter are 3/16”.


Product Specification

Width Length Wire Diameter Finish Packing
2''(50mm) 10' 9GA uncoated,galvanized 50pc/bdl,20bdl/plt;25pc/bdl,40dbl/plt
4''(100mm)
6''(150mm)
8''(200mm)
10''(250mm)



All ladder mesh products conform to:

ASTM A641 - (Electro  galvanized )
ASTM A153 Class B2 - (Hot dipped after fabrication)
ASTM A 82 - (Cold drawn steel wire)
Tensile Strength:80,000 PSI;Yield Point:70,000 PSI minimum; Reduction of Area:30 %.
ASTM A951-96 - (Masonry wall reinforcing)
ASTM 580 Type 304 - (Stainless steel)

Ladder mesh reinforcement also called Brick Wall Reinforcement Mesh is welded wire sheet for reinforced masonry construction. It is used in building surface, wall, ground, bridge, bank and airport. And its feature is that welding spots of warp wire and weft wire are on the same surface.

Wire Diameter: 2.5-6.0 mm
Width: 5cm-27cm
Length: 3mm.
Spacing: 40cm

Surface Treatment of Ladder Mesh: Can be divided into five types:
Welded after hot dipped galvanized;
Welded after electro galvanized;
Welded before electro galvanized;
Welded before hot dipped galvanized;
 Welded by stainless steel wire.



General Technical Information:
Weight: 2kg-10kg.
Usage: Masonry wall construction.
Materials Available: hot dipped galvanized steel, electro galvanized steel or stainless steel. Wire diameter: from 2.5mm to 6mm.
Truss Mesh Structure Width: 5cm, 10cm, 15cm, 20cm.
Structure Length: 3mm.
Wire Spacing: 40cm.

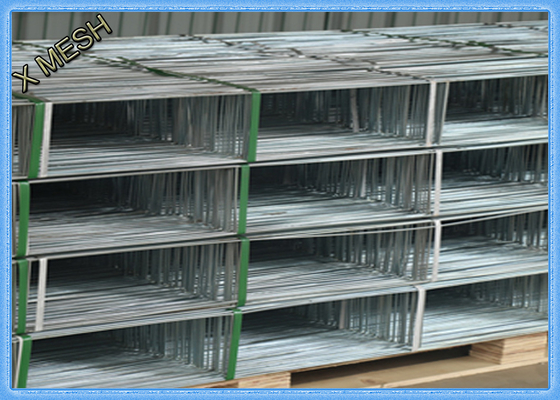

Packaging & Shipping

1. 50 pieces per bundle, 20 bundles per pallet. (North America market)

2. 25 pieces per bundle, 40 bundles per pallet. (Europe market)

3. 15 days per container.

loading of ladder mesh



Block Ladder Mesh-BLM001

Block Ladder Mesh-BLM001

Block Ladder Mesh-BLM002

Block Ladder Mesh-BLM002

Block Ladder Mesh-BLM003

Block Ladder Mesh-BLM003

Block Ladder Mesh-BLM004

Block Ladder Mesh-BLM004
