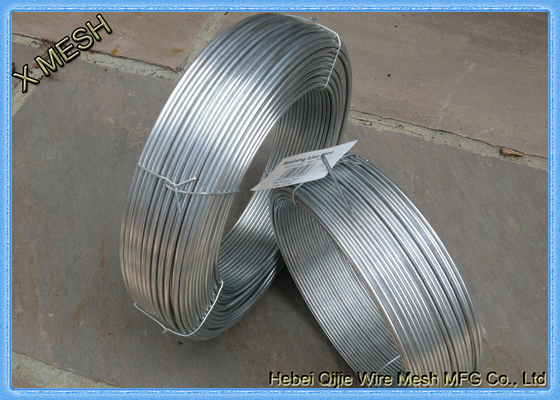

Heavily Galvanized Binding Wire Big Coils High Tensile Strength For Construction

The wire is with heavily galvanized and with high tensile strength, and always with big coils.

Binding wires are made of galvanized, plastic coated annealed and stainless steel wire. It is softness, good ductility and high strength, and is easily bent and tied in a knot.

Binding wire with heat treatment will have high strength and become softer. Cover the wire with zinc, its resistance to corrosion will be strength. Galvanized binding wire has a matte or shiny finish, and it is easy to oppose the negative effects of the environment. PVC coated binding wire has resistance to corrosion.

Manufacturing technology of baling wire consists of two stages. In the first stage are made of steel billets, and burn it, and the second - passed under high pressure through a hole by drawing. It has a circular cross section.

Binding wire without coating has a diameter of 0.16 mm - 2 mm, and coated diameter from 0.2 mm to 2 mm. The most common use diameter is 0.8 mm, 1 mm and 1.2 mm.

Black annealed baling wire new specifications:

• Size: 2.64 mm, 3.15 mm, 3.8 mm (+0.1/-0 mm).
• Tensile Test: 380-480 N/mm2.
• Range: 23% - 30%.
• Steel grade: C1012.
• Size of reel/stem: 20 kg Coils, 40 kg Coils, 1000 kg Stems.

Materials: high carbon steel.

According to the difference of zinc coating process can be divided into: electro galvanized steel wire and hot-dipped galvanized steel wire.

• Galvanized Wire in Big Coils:
  Wire diameter: 0.6-1.6mm.
  Tensile strength: 300--500MPa.
  Elongation: =15%.
  Packing: Big coils of 150kg-800kg.

Gauge	SWG in mm	BWG in mm
8#	4.06	4.19
9#	3.66	3.76
10#	3.25	3.4
11#	2.95	3.05
12#	2.64	2.77
13#	2.34	2.41
14#	2.03	2.11
15#	1.83	1.83
16#	1.63	1.65
17#	1.42	1.47
18#	1.22	1.25
19#	1.02	1.07
20#	0.91	0.89
21#	0.81	0.813
22#	0.71	0.711





Application:

1. Binding wire is used for binding reinforcement slabs, metal mesh processing, beams, walls, columns and so on. In particular, it is used in concrete construction. Binding wire shall provide a secure hold reinforcing bars of different diameters.
2. When you need to install fences and barriers, binding wire is used for making ropes, cables, springs, nails and electrodes. Through a combination of flexibility and strength of binding wire bonding is indispensable for the various elements of structures, and strengthen ceilings.
3. Used in various industries for packing finished products.
4. Binding wire used for hanging hops and vineyards, as it is a basic material for tapestries. Used for hanging vines binding wire diameters from 2.2 mm to 2.5 mm, and for the hop with a diameter of 1 mm.
5. Binding wire used for the production of welded wire mesh and for the manufacture of barbed wire. Barbed wire is made of knitting nets with a diameter of 1.4 mm - 2.8 mm.
