Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Core Wire | Wire Diameter: | 0.7 - 5.0 Mm |
|---|---|---|---|
| Hole Shape: | Rectangular | Roll Width: | 0.9 M, 1.2 M, 1.5 M, 1.8 M |
| Technic: | Welded Mesh | Roll Size: | 1.0 X 30 M, 1.2 X 30 M, 1.5 X 30 M, 1.8 X 30 M |
| Application: | Screen,Woven Wire Mesh | Technique: | Welded Mesh |
| Type: | Welded Mesh | Color: | Silver,gold |
| Usage: | Construction,fireplace Screen,filtration | ||
| High Light: | metal mesh panels,metal mesh fabric |
||

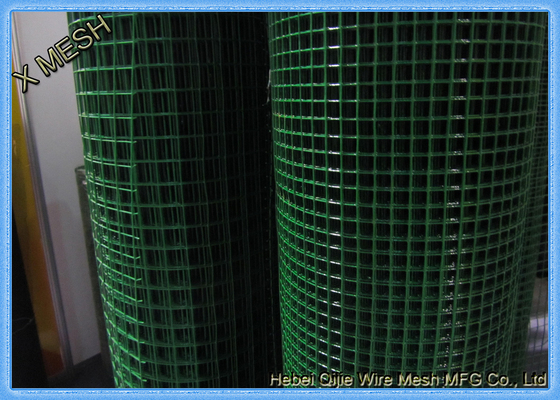

PVC coated Welded Wire Mesh with 1.2 x 30 m Roll for Outdoor Fencing
Product descriptions
We offer PVC coated wire mesh and PVC coated wire mesh for customers.
PVC Coated Wire is manufactured with quality iron wire. Common colors available for PVC coated wire are green and black. Other colors also available on request.
PVC Coated Wire Application: The most popular use for PVC coated metal wire mesh screen is in the construction of chain link fences for industrial security fences, freeways and tennis courts. It is also used in other applications such as coat hangers and handles.
PVC coated wire mesh mainly serves as fencing wire mesh.
Welded wire mesh is made by resistance-welding with superior wires. They provide a high corrosion resistance as well as the strength and hygiene properties. It is used extensively in pharmaceutical industries, food and catering industries as well as in health care, construction and automotive industries.
Characteristics: it has the good property of corrosion-resisting and oxidation-resisting.
Material: galvanized steel core wire, then PVC coated after welded
Our standard roll length is 30m, various of roll widths are available, such as 0.9m, 1.2m, 1.5m and 1.8m. Customized specifications are also accepted.
Welded wire mesh have 4 kinds of product:
Elcetro galvanized Welded wire mesh
Hot dipped galvanized welded wire mesh
PVC coated galvanized welded wire mesh
Black wire/ no coated welded wire mesh
Specifciation:
| Mesh mm |
Wire Diameter mm |
Width mm |
Roll Weight Kg |
| 50.8 x 50.8 | 2.0 | 1220 | 37 |
| 38.1 x 38.1 | 2.0 | 1220 | 48 |
| 25.4 x 25.4 | 2.0 | 1220 | 72 |
| 25.4 x 25.4 | 1.6 | 1220 | 46 |
| 25.4 x 25.4 | 1.0 | 1220 | 18 |
| 19.05 x 19.05 | 2.0 | 1220 | 95 |
| 19.05 x 19.05 | 1.6 | 1220 | 60 |
| 12.7 x 25.4 | 1.2 | 1220 | 39 |
| 12.7 x 12.7 | 1.6 | 915 | 69 |
| 12.7 x 12.7 | 1.6 | 1220 | 92 |
| 12.7 x 12.7 | 1.2 | 915 | 39 |
| 12.7 x 12.7 | 1.2 | 1220 | 52 |
| 12.7 x 12.7 | 1.2 | 1525 | 64 |
| 11.0 x 11.0 | 0.8 | 1220 | 27 |
| 9.5 x 9.5 | 0.8 | 1220 | 30 |
| 9.5 x 9.5 | 1.0 | 1220 | 48 |
| 9.5 x 9.5 | 1.0 | 1525 | 60 |
|
Mesh
|
Wire Diam
|
||
|
Inch
|
mm
|
BWG
|
mm
|
|
1/4" × 1/4"
|
6.4mm × 6.4mm
|
22# - 24#
|
0.7mm - 0.6mm
|
|
3/8" × 3/8"
|
10.6mm × 10.6mm
|
19# - 22#
|
1.0mm - 0.7mm
|
|
1/2" × 1/2"
|
12.7mm × 12.7mm
|
16# - 23#
|
1.6mm - 0.6mm
|
|
5/8" × 5/8"
|
16mm × 16mm
|
18# - 21#
|
1.2mm - 0.8mm
|
|
3/4" × 3/4"
|
19.1mm × 19.1mm
|
16# - 21#
|
1.6mm - 0.8mm
|
|
1" × 1/2"
|
25.4mm × 12.7mm
|
16# - 20#
|
1.6mm - 0.9mm
|
|
1" × 1"
|
25.4mm × 25.4mm
|
14# - 21# |
2.0mm - 0.8mm
|
|
11/2" × 11/2"
|
38mm × 38mm
|
14# - 19#
|
2.0mm - 1.0mm
|
|
1" × 2"
|
25.4mm × 50.8mm
|
14# - 16#
|
2.0mm - 1.6mm
|
|
2" × 2"
|
50.8mm × 50.8mm
|
12# - 16#
|
2.6mm - 1.6mm
|
| Note: Special specifications can be customized. | |||
Usage:
It is widely used on the industry, agriculture, building, transportation, mine, field, lawn, cultivation, Profession's guard, decorate, machie protection etc.
PVC Coated Welded Wire Mesh Panels-WWMP001
PVC Coated Welded Wire Mesh Panels-WWMP002
PVC Coated Welded Wire Mesh Panels-WWMP003
PVC Coated Welded Wire Mesh Panels-WWMP004
