Width 27" Stucco Plaster Mesh Spray Diamond Wire Mesh SGS Approved

Width 27" Stucco Plaster Mesh Spray Diamond Wire Mesh SGS Approved
Width 27" Stucco Plaster Mesh Spray Diamond Wire Mesh SGS Approved Width 27" Stucco Plaster Mesh Spray Diamond Wire Mesh SGS Approved Width 27" Stucco Plaster Mesh Spray Diamond Wire Mesh SGS Approved Width 27" Stucco Plaster Mesh Spray Diamond Wire Mesh SGS Approved Width 27" Stucco Plaster Mesh Spray Diamond Wire Mesh SGS Approved

Large Image :  Width 27" Stucco Plaster Mesh Spray Diamond Wire Mesh SGS Approved

Product Details:
Place of Origin: Hebei, China
Brand Name: Xmesh
Certification: SGS
Model Number: EGMRL
Payment & Shipping Terms:
Minimum Order Quantity: 500sheets
Packaging Details: Pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 10000 pcs per month
Detailed Product Description
Material: Metal Sheet Width: 27"
Length: 96" Thickness(mm): 0.35-0.5mm
Weight Lbs/Sqyd: 1.75
High Light:

metal mesh screen

,

metal mesh fabric

Stucco Plaster Mesh Spray Mesh Diamond Mesh



Expanded metal lath(wall plaster mesh) is manufactured from pre-galvanised steel to BS EN 10142 quality, this metal lath is to avoid the cracking on wall due to different contraction rate of concrete and plaster material. Use with galvanised angle bead, galvanised stop bead, plasterer can be sure of perfect workmanship and quality of plastering job.
Specifications:



1. Regular diamond metal lath: regular diamond metal lath is a multi-purpose plaster base and reinforcement, it is ideal as a plaster base and reinforcement for all types



Code Weight Sheet size Pcs/Bdl Pcs/Plt
MG-RML 1.7lbs 27'' x 96'' 10 500
MG-RML 2.5lbs 27'' x 96'' 10 500
MG-RML 3.4lbs 27'' x 96'' 10 500





2. Slef-furring metal lath: Dimples or embossed a "V"groove hold the lath appropriately 1/4'' away from the wall, allow the plaster to fill up the space between, insuring it is embedded.



Code Weight Sheet size Pcs/Bdl Pcs/Plt
MG-RML 1.7lbs 27'' x 97'' 10 250
MG-RML 2.5lbs 27'' x 97'' 10 250
MG-RML 3.4lbs 27'' x 97'' 10 250


3: Paper backed metal lath: Paper backed metal lath is regular or self-furring, which offset asphalt, saturated Kraft building paper will be used, It provides protection against wet areas during stucco curing.



Code Weight Sheet size Pcs/Bdl Pcs/Plt
MG-RML 1.7lbs 27'' x 97'' 10 250
MG-RML 2.5lbs 27'' x 97'' 10 250
MG-RML 3.4lbs 27'' x 97'' 10 250

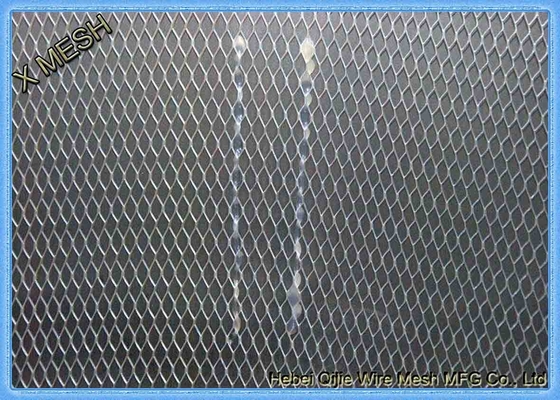

diamond rib lath

diamond rib lath

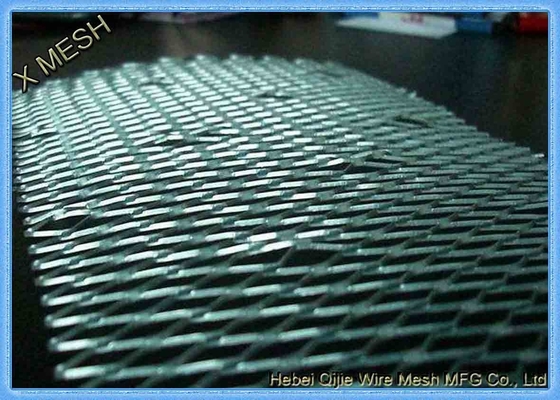

self-furring rib lath

self-furring rib lath

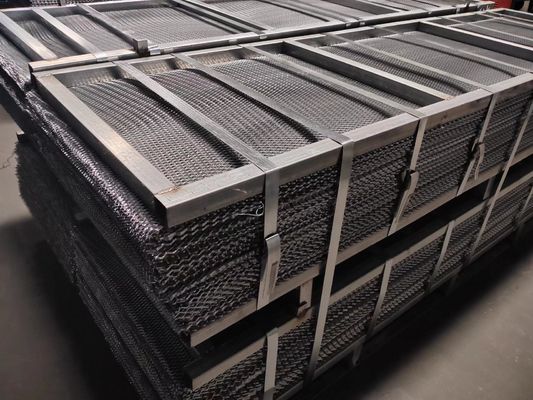

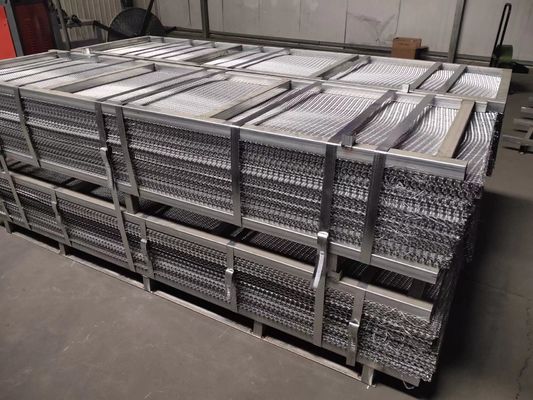

packing of diamond stucco plaster mesh





packing of diamond stucco plaster mesh

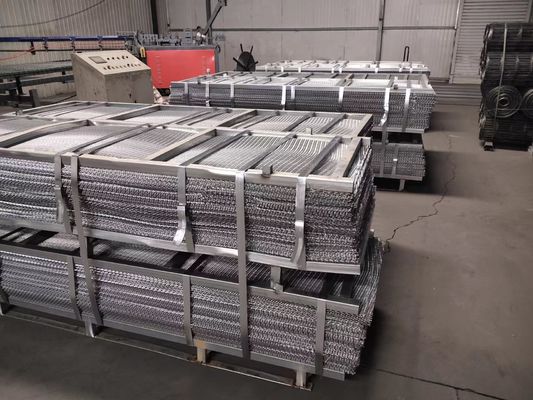

stucco mesh



stucco mesh



stucco mesh
