316 High Tensile Stainless Steel Insect Screen Mesh Marine Grade 11 X 11 Mesh

316 High Tensile Stainless Steel Insect Screen Mesh Marine Grade 11 X 11 Mesh
316 High Tensile Stainless Steel Insect Screen Mesh Marine Grade 11 X 11 Mesh 316 High Tensile Stainless Steel Insect Screen Mesh Marine Grade 11 X 11 Mesh

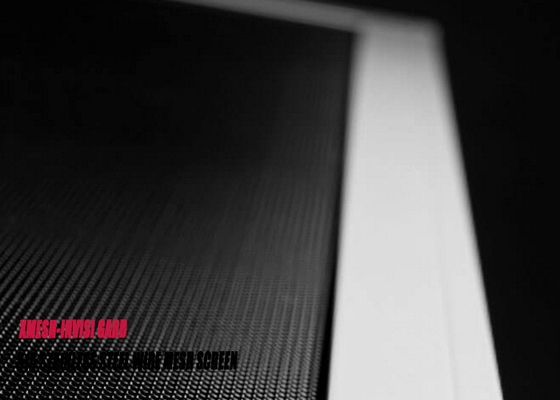

Large Image :  316 High Tensile Stainless Steel Insect Screen Mesh Marine Grade 11 X 11 Mesh

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-966
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: Packs of 5 pcs in cardboard with paper interleaving, then in timber crates of 50 pcs
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 10000 pcs one month
Detailed Product Description
Material: T316 Wire Diameter: 0.8mm
Mesh: 11 X 11 Surface Finish: Powder Coated
Color: Black, Grey, Nature Size: 0.75 X 2.0 M, 0.9 X 2.0 M, 0.9 X 2.4 M, 1.2 X 2.0 M, 1.2 X 2.4 M
High Light:

fly screen netting mesh

,

insect screen mesh

316 Grade Tensile Marine Grade Stainless Steel Insect Screen Mesh



Product Description

SS Windon Screen Mesh, Anti-Theft Stainless Steel Security Window Screen, Insect window screen, Fire proof insect window screen.
Invisible metal window screen. anti-insect window screen, anti-fly mesh, anti-mosquito screen.Anti-Theft Stainless Steel Security Window Screen,Knife Proof stainless steel window screen.



Material type: Stainless steel 304,304l,316,316l,
Weave type: plain weave style
Common specification: 11 mesh * 0.8mm wire, 11 mesh* 0.9mm wire,10 mesh * 0.9mm wire, 12mesh* 0.7mm wire,14 mesh* 0.6mm wire, 14 mesh * 0.7mm wire
Standard size: 750mm×2000mm 900mm×2000mm 1200mm×2000mm 750mm×2400mm 900mm×2400mm 1200mm×2400mm,1300mmx2600mm, 1500mmx2400mm.
Color: black,white, gray, dark gray,



Product Stainless Steel Security Window Screen
Material SS302, 304, 304L, 316, 316L, etc
Weaving Pattern Plain Weaving; Twill Weaving; Dutch Weaving; etc
Wire Dia. 0.18mm-1.2mm
Mesh Number 11mesh-30mesh
Width 0.6m-1.5m
Edge Processing Closed Selvage; Flash; Perm Border
Color White; Black; Green; Gray; etc
Characteristic acid proof, alkali proof, high temperature resistant, wear-resisting
Application 1. stall in window or door as window screen or mosquito
2. used in greenhouse as anti-insect or anti trip net
3. used in fishing breed or poultry rasing as pool or garden guard
4. uesd in agricutlure product for food drying


Light duty specification list



Product name Specification Introduction
Mesh/Inch Wire diameter

Roll size

(m)


Stainless Steel insect screen 16 × 16 0.35mm

0.6 x 30.5

0.9 x 30.5

1.2 x 30.5

Material: ss304, ss316
18 × 18 0.23mm
18 × 14 0.28mm
20 × 20 0.18mm
24 x 24 0.22mm



For high traffic areas, such as doors or windows, you can select our heavy duty stainless steel insect mesh. The mesh can be installed to protect windows or doors; it can also play a part to keep insects out, but also provide extra security without comprising ventilation.



Heavy duty specification list

Product name Specification Introduction
Mesh/Inch Wire diameter

Panel size

(mm)



Stainless steel fly

screen mesh

10 × 10 0.9mm

1500 x 2500

1300 x 2600

1200 x 2000

1200 x 2400

1000 x 2400

Material: T 304, T 316
11 × 11 0.8mm
12 × 12 0.7mm



  1. Customized sizes can also be supplied
  2. 316 marine grade stainless steel
  3. Corrosion resistant and ideal for bushfire-prone or coastal areas
  4. Black powder coated to minimize glare and has excellent visibility
  5. Ember protection
