CNC Welded Wire Mesh Machine Fully Automatic for Fence Panel or Construction

CNC Welded Wire Mesh Machine Fully Automatic for Fence Panel or Construction
CNC Welded Wire Mesh Machine Fully Automatic for Fence Panel or Construction CNC Welded Wire Mesh Machine Fully Automatic for Fence Panel or Construction CNC Welded Wire Mesh Machine Fully Automatic for Fence Panel or Construction CNC Welded Wire Mesh Machine Fully Automatic for Fence Panel or Construction CNC Welded Wire Mesh Machine Fully Automatic for Fence Panel or Construction CNC Welded Wire Mesh Machine Fully Automatic for Fence Panel or Construction

Large Image :  CNC Welded Wire Mesh Machine Fully Automatic for Fence Panel or Construction

Product Details:
Place of Origin: Heibei, China
Brand Name: Qijie
Certification: ISO
Model Number: QJ-03
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 12000 -- 25000
Delivery Time: 20-25 days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 8 set/month
Detailed Product Description
Hole Shape: Square, Rectangle Width: 1-6m
Hole Size: 5cm Material: Black Or Galvanized Wire
Operation: Fully Automatic Control System: PLC Touch Screen
Voltage: 220V/380V/415V/440V Welding Head Material: High Chromium Copper
Highlight:

fence mesh welding machine

,

wire mesh welding machine

Fence Mesh Panel Welding Machine

CNC Welded Wire Mesh Machine Fully Automatic for Fence Panel or Construction 0

CNC Welded Wire Mesh Machine Fully Automatic for Fence Panel or Construction 1

1.Feeding material:

The warp wire and weft wire are straightened and cutted from coil wire material ,realized by auto straightening and cutting machine.

The warp wire are placed on a corresponding wire penetrating mold by worker, and the weft wire will be automatic falling down one by one ,from the weft wire system
2.Welding mesh panel system:

The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a Panasonic ( Japan ) PLC digital programming system, and the mesh opening size can be adjusted only by direct input on a touch screen; and it could be exist different weft distance on one piece of one mesh sheet
3.Drawing mesh panel system:

Panasonic ( Japan ) servo motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.



Model QJ-04 Welding electrodes 48pcs
Wire diameter 2.5mm-6mm Welding speed 50/75times/min
Longitude wire space 50mm-300mm Rated electrical power 125kva*6pcs
Cross wire space 25/12.5mm-300mm Needed power Min.160kva
Width of mesh Max.2.5m Weight 4.2T
Length of mesh Max.6m Overall size 5.4m*3.2m*1.7m
Longitude wire feeding Pre-straightened&pre-cut Cross wire feeding Pre-straightened&pre-cut



Notes:when wire diameter is 2.5mm-5mm,the minimum longitude wire space is 50 mm.One transformer controls 8 welding electrodes,you can use max 48 pcs. when wire diameter is 5mm-6mm,the minimum longitude wire space is 100mm.One transformer controls 4 welding electrodes,you can use max 24 pcs.


Applications

Application materials : welding machine is good at welding various metal wire : stainless steel wire , low carbon steel wire , round steel bar, ribbed steel bar

Application mesh panel : welded mesh panel widely used as reinforce mesh panel for building, construction ;railway wire mesh fence, security fence and others.



Welded fence mesh panel welding machine

Fence mesh panel welding machine, also called security fence machine, anti-climb fence welding

machine, used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.

Machine Image

Panasonic, Schneider, ABB, SMC, Igus electric components.

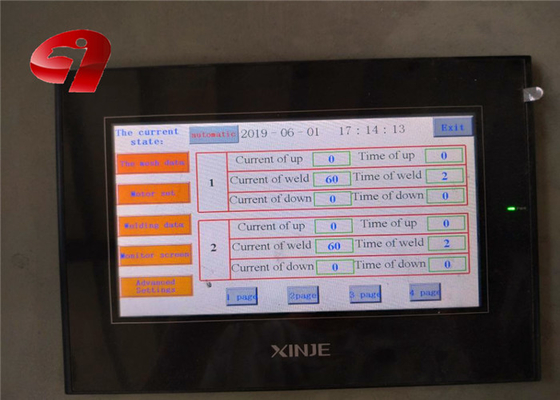

Touch screen interface.
PLC control of cross wire space and welding current.
Pre-straightened & pre-cut wires.
Panasonic servo technology for mesh pulling.
Pure welding electrodes, upper Φ20*120mm, lower 20*20*20mm.
Water-cooling system.
Brake motor & reducer connect the principal axis directly.

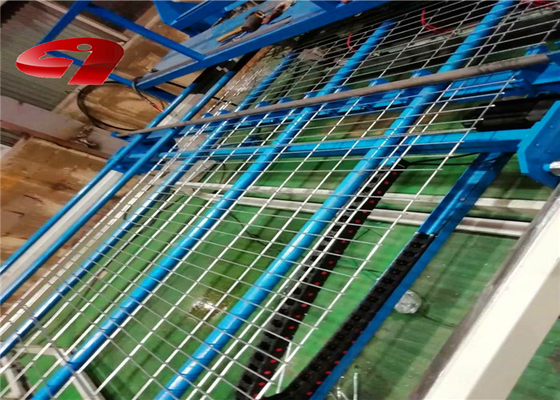

High precision mesh


Fence Mesh Welding Machine Function features and advantages:
1. This machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit. The input panel has two types touch screen and button, more intelligent and rational, once pressing, and separate welding.
2. The welding power is electric power. The cross wire is fed from hopper driven by stepper motor, and the line wire is fed by brake motor driven car and the mesh is pulled by the stepper motor driven car.
3. The cross and the line wires are both pre-straightened and pre-cut by the special straightening and cutting machine.
4. The biggest advantage of the machine is that there is different cross spacing in the same mesh.
5.The welding electrodes and transformer are equipped with the water cooling system,thus prolong the machine life and working time.
