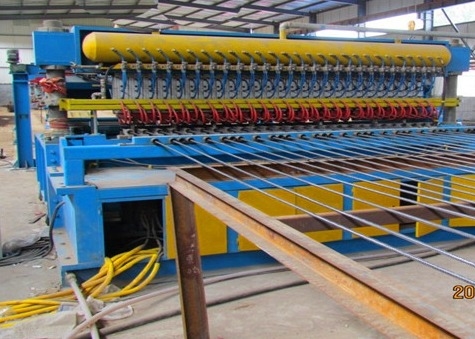

Fully Automatic Wire Mesh Welding Machine , Weld Mesh Making Machine

Fully Automatic Wire Mesh Welding Machine , Weld Mesh Making Machine
Fully Automatic Wire Mesh Welding Machine , Weld Mesh Making Machine Fully Automatic Wire Mesh Welding Machine , Weld Mesh Making Machine Fully Automatic Wire Mesh Welding Machine , Weld Mesh Making Machine

Large Image :  Fully Automatic Wire Mesh Welding Machine , Weld Mesh Making Machine

Product Details:
Place of Origin: Heibei, China
Brand Name: Qijie
Certification: ISO CE SGS
Model Number: QJ-09
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 12000 -- 25000

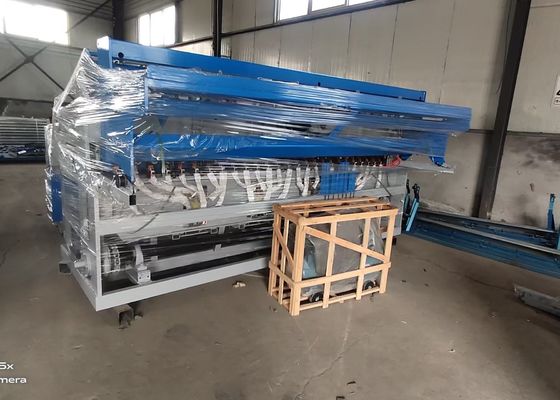

Packaging Details: plastic film
Delivery Time: 20-25 days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 6 set/month
Detailed Product Description
Hole Shape: Square, Rectangle Width: 1-3m
Hole Size: 2.5cm-150cm Material: Black Or Galvanized Wire
Operation: Fully Automatic Control System: PLC Touch Screen
Voltage: 220V/380V/415V/440V Welding Head Material: High Chromium Copper
High Light:

fence mesh welding machine

,

wire mesh welding machine

Automatic Welded Mesh Machine Making Welded Mesh in Rolls and Panels



Product Discription

The steel mesh welding machine adopts modular structure design, which is more convenient for upgrading the functional structure, and provides convenience for satisfying different needs of customers in different periods. According to its structure, it is divided into vertical wire discharging frame, welding part, horizontal line blanking and drawing part, etc. It has the characteristics of novel structure, firm frame, easy operation and easy learning, and has high cost performance.



Wire diameter

6-13mm

Welding method

Silicon controlled synchronous control

Hole size

150-300mm

Transformer power

250-315KVA

Mesh width

3m

Machine size

22000*5500*2100mm

Wire feeding mode

Pre-straight and cutting

Machine weight

16.0T

Welding speed

60-70times/min

Transformer

160KVA×11

Welding spot

21

Motor

11KW frequency conversion

Voltage

380V 3P 50HZ

Way of pressure

Mechanical pressure



Applications

Application materials : welding machine is good at welding various metal wire : stainless steel wire , low carbon steel wire , round steel bar, ribbed steel bar

Application mesh panel : welded mesh panel widely used as reinforce mesh panel for building, construction ;railway wire mesh fence, security fence and others.

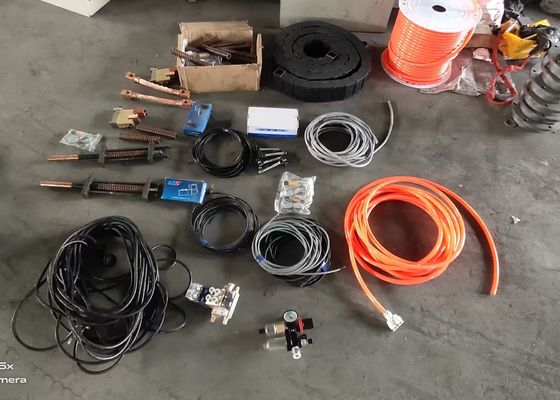

Standard accessory

1,Straightening Automatically and Cutting Machine : two/set

2,Wire Tray :two piceses



1 Both of line wire and cross wire are fed from wire coils automatically.
2 Raw material can be black wire, galvanized wire or stainless steel wire.
3 One time two or three mesh rolls can be produced.
4 The mesh roll length can be set by counter switch on the control panel.
5 The welding transformers can be adjusted for different wire diameters.
6 The welding time and welding current can be adjusted on the control panel to guarantee solid welding.
7 Sturdy structure and world famous electric components are used like Simens, Schneider, Delta etc.
8 Water cooling transformer is used for hot area.
9 Patent design for process of thick hard black wire.ne time two or three mesh rolls can be produced.



Fence Mesh Welding Machine Function features and advantages:
1. This machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit. The input panel has two types touch screen and button, more intelligent and rational, once pressing, and separate welding.
2. The welding power is electric power. The cross wire is fed from hopper driven by stepper motor, and the line wire is fed by brake motor driven car and the mesh is pulled by the stepper motor driven car.
3. The cross and the line wires are both pre-straightened and pre-cut by the special straightening and cutting machine.
4. The biggest advantage of the machine is that there is different cross spacing in the same mesh.
5.The welding electrodes and transformer are equipped with the water cooling system,thus prolong the machine life and working time.

Fully Automatic Wire Mesh Welding Machine , Weld Mesh Making Machine 0

Automatic Welded Mesh Machine
