Steel Iron Wire Nail Making Wire Draw Machine

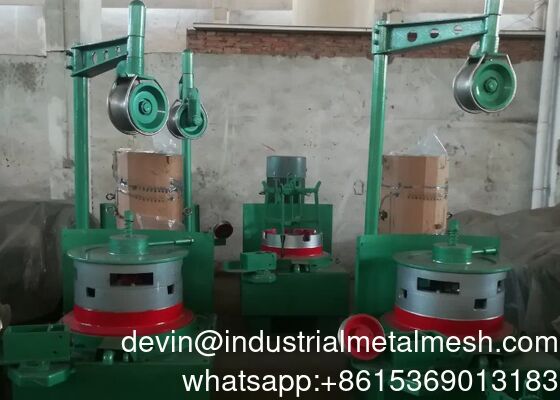

Large Image : Steel Iron Wire Nail Making Wire Draw Machine

Product Details:

Place of Origin:	China
Brand Name:	nail machine
Certification:	sgs
Model Number:	nail machine

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	wood case
Delivery Time:	10-15days
Payment Terms:	TT,LC,
Supply Ability:	1000/pcs

Contact Now

Detailed Product Description

Feeding Roller:	7 Pieces Of Straighten Roller	Nail Length:	10-200mm
Motor Power:	2-11kw	Nail Production Capacity:	2 Tons Per Shift
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	steel wire nail making machine , iron wire draw machine , wire mesh machine with warranty

Steel Iron Wire Nail Making Wire Draw Machine

Wire drawing machine

Wire drawing machine is ideal equipment to draw raw steel wire.
Most of the time, it is important for nail making line.
It can draw high medium low carbon steel wire from 6.5mm to 0.75mm.

The whole process from feeding wire to outlet wire can be finished in one time and only one worker can operate.

You can choose the model based on following specifications of wire drawing machines:

Item	Continuous Multi-block Type
Model	LW- 1-6/ 560	LW-1-7/450	LW-1-6/350
Tensile strength of wire rod	110kg/mm2	128/mm2	140/mm2
Max. dia. of wire rod	6.5mm	3.4mm	2.5mm
Min. dia. of wire wire	2.5mm	1mm	0.75mm
Typical configuration	LW1- 6/560	LW1-7/450	LW1-6/350
Max. average reduction	30%	20%	21%
Designed total reduction	78-88.5%	77.9%	78%
Max. speed of block	245 m/min	346.9 m/min	200 m/min
Total power	18.5-30kw	7.5-11kw	7.5-11kw
Weight	2000	1500	1000
Overall dimensions(LxWxH)	170x115x175cm	152x81x170cm	140x80x150cm

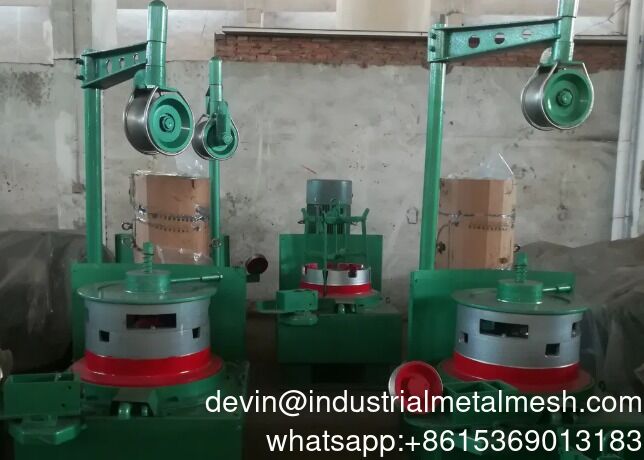

Steel Iron Wire Nail Making Wire Draw Machine 0

Steel Iron Wire Nail Making Wire Draw Machine 1

Accessory Equipments of Wire Drawing Machine:

Shucking Machine removes rust and surface oxide from raw material steel wire.

Sharpening machine is to make the point of the raw wire thinner, then it can enter through the wire drawing dies to draw.

Discharging Machine: To discharge finished steel wire from wire drawing machine.

Trunk Type Winding Machine: To discharge more heavier finished steel wire from wire drawing machine.

Butt Welding Machine: To welding split wire together.

Name	Model	Range of Dia.
Descaling
Pointing Machine	FZ-3	3-0.8mm
Pointing Machine	FZ-6	6.5-1mm
Butt-Welding Machine	UN-3	3--0.8mm
Butt-Welding Machine	UN-10	6.5-2mm
Automatic Discharging Machine	500	capacity 500kg
Automatic Discharging Machine	350	capacity 350kg
Trunk Type Winding Mahine	XBSJ-750	capacity 800-1000kg
Trunk Type Winding Mahine	XBSJ-650	capacity 500-800kg
