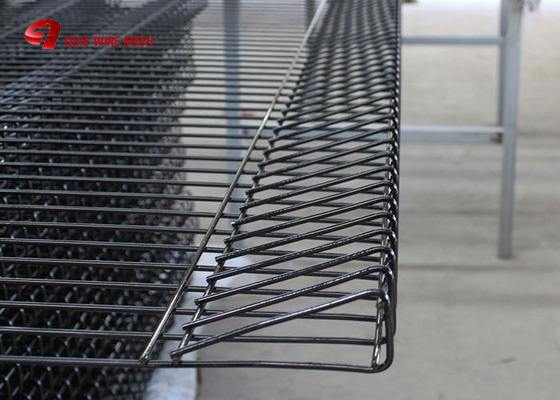

PVC Coated Or Galvanized Rolltop Weld BRC Fencing Mesh Panel For Welded Wire

PVC Coated Or Galvanized Rolltop Weld BRC Fencing Mesh Panel For Welded Wire
PVC Coated Or Galvanized Rolltop Weld BRC Fencing Mesh Panel For Welded Wire PVC Coated Or Galvanized Rolltop Weld BRC Fencing Mesh Panel For Welded Wire PVC Coated Or Galvanized Rolltop Weld BRC Fencing Mesh Panel For Welded Wire PVC Coated Or Galvanized Rolltop Weld BRC Fencing Mesh Panel For Welded Wire

Large Image :  PVC Coated Or Galvanized Rolltop Weld BRC Fencing Mesh Panel For Welded Wire

Product Details:
Place of Origin: China
Brand Name: Qijie
Certification: SGS
Model Number: TPP-001
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: Pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000pcs per month
Detailed Product Description
Products Name: BRC Roll Top Fence Surface Treatment: Hot Dipped Galvanized Or Powder Coated
Wire Diameter: 3mm/4mm/5mm/6mm Mesh Openning: 50x150mm/50x100mm/60x150mm
WIDTH: 1500mm / 2000mm / 2500mm Height: 1200mm / 1350mm / 1500mm / 1650mm / 1800mm / 1950mm / 2100mm / 2250mm
Highlight:

metal security fence panels

,

metal wire fence panels



PVC coated or galvanized Rolltop weld BRC Fencing Mesh Panel for Welded Wire​



Brif Introduction:

Rolltop weld fence are manufactured from high tensile steel bars that are welded together to provide accurate panel and mesh dimensions. Being durable, they are able to retain its shape and strength for years to come. Not to mention it is recyclabe. Thus, it is “Green” and reduces maintenance cost to a minimum.

BRC Fense also know as Euro fence ,also someone call it as Anchor link Fence.

The unique top and bottom “rolled” edges is not just decorative in appearance but give individual panel maximum rigidity and act as horizontal support between posts. Also, the uniform spacing enhances the aesthetics of the fence and provides good through visibility even during the night. Therefore, it is ideal security fencing.

What’s more, individual panels can be easily replaced and the ample spacing between wires allows the panels to be cut accurately for custom sizes.

Installation is simple and easy. They come complete with panels, posts, post caps, U-clips, bolts and nuts in either hot dip galvanised (MS 740:1981 equivalent to BS 729:1971) and or powder coated in colours. Steel posts are pre-drilled and ready for assembly on site. For fence height more than 2.4 m, we suggest “Multi-lift erection system” where one or more panels are placed on top of the bottom panel.

With these features and benefits, Rolltop Weld fence is preferred for residential, commercial and governmental projects. Whether you are a home owner, bussiness owner, architect, contractor or developer, Rolltop weld fence offer substance, style and peace of mind.

roll top fence

Panels

The roll top fence panels are made from 150 x 50mm welded mesh using 5.0mm heavy-duty wire to achieve high strength and rigidity.

The roll top fencing panels is 3.0m wide and standard fence height is 1.2m, other heights are available on request. To achieve a range of fence height of either 1.2m or 2.4m, the panels are designed so they can be added in 1.2m stages. In this case one or more panels are fitted above the bottom panel with the rolled beam sections being clipped securely being clipped securely together.



Specifications:

Wire Dia:3mm-6mm

Hole Size:5x20cm,5x15cm 5x10cm and so on.

Surface Treament:Pvc Coated,Powder Coated,Hot Dipped Galvanized,Pvc Coated &Galvanized,Powder Coated &Galvanized

Panel Height:1.2-2.4m

Panel Length:1.5-3.0m

Panel size Post
Panel height Panel width Wire Mesh holes Height(mm) Post Section
900mm 2.4m&3m 4.0&5.0mm

50×150mm

50×200mm

1500

Square

60×60mm

60×80mm

Round

φ48mm,φ60mm

1200mm 2.4m&3m 4.0&5.0mm 1800
1500mm 2.4m&3m 4.0&5.0mm 2100
1800mm 2.4m&3m 4.0&5.0mm 2400
2400mm 2.4m&3m 4.0&5.0mm 3000
Above are general specification,others are available.



The Roll Top fence
  Panels Posts
Fence Height m Panel Size Height/Width mm O/A Length Number of Fixings Inters Number of Fixings Corners
0.9 900 x 3000 1500 3 6
1.2 1200 x 3000 1800 4 8
1.5 1500 x 3000 2100 4 8
1.8 1800 x 3000 2500 5 10



Post

The posts for BRC fence, roll top fencing panels are manufactured from hot dip galvanized 60 x 60 x 2.0mm or 60×80mm( others are available) square hollow steel section and are available from stock to suit fence heights of 1.2m or 2.4m. Longer posts for higher fences can be supplied. Panels are secured to the posts with steel clips and 6.0mm galvanized security fixings screwed into threaded inserts in the posts. All posts are supplied with protective plastic end caps.

POST-Round profile

Mesh Wire Thickness Surface Treatment Holes Height
48mm
60mm
1.50mm
2.00mm
2.50mm
galvanized and electrostatic
polyester powder coated
or hot dipped galvanized
with several holes
drilled on itself
according to
the panel height



Gates

Swing gates are available to suit standard height in single and double leaf configuration with a twin wire welded mesh in-fill to match the your Roll top fence. Special sized swing gates or sliding gates can be manufactured to suit individual customer requirements.



Fittings:
Use metal clips, the desigh as follows:

roll top fence



Parts:

Standard Q195 or Q235 Low Carbon Steel Wire,Welded Pipe, pillars,etc.

Structure of Roll Top Fencing Welded Mesh:

Shaped by hydraulic pressure with welded high-strengthed cool-drawn low carbon steel wire and fixed with joint Accessories and steel pipe pillars.
PVC Coated Or Galvanized Rolltop Weld BRC Fencing Mesh Panel For Welded Wire 2

Coating

The roll top fencing panels are manufactured using galvanized steel wire with super-durable powder coating assures a long service life for the fence system. Our powder coating material is the top brand like AkzoNobel, which provides the industry's Highest Weather-ability and Gloss Retention in U.V. exposure.



Application:
Used for park, private gardens and parks, playgrounds, plays areas, pedestrian zone and public restriction area,factory fencing, residence fencing or house fencing

PVC Coated Or Galvanized Rolltop Weld BRC Fencing Mesh Panel For Welded Wire 3

galvanized-BRC-fence-001



PVC Coated Or Galvanized Rolltop Weld BRC Fencing Mesh Panel For Welded Wire 4

powder-coated-BRC-fence-002



Welded wire roll top fencing panel are manufactured from high tensile steel bars that are welded together to provide accurate panel and mesh dimensions. Being durable, they are able to retain its shape and strength for years to come. Not to mention it is recyclabe.Thus, it is "Green'' and reduces maintenance cost to a minimum.

The unique top and bottom ''rolled'' edges is not just decorative in appearance but give individual panel maximum rigidity and act as horizontal support between posts. Also, the uniform spacing enhances the aesthetics of the fence and provides good through visibility even during the night. Therefore, it is ideal security fencing.

What's more, individual panels can be easily replaced and the ample spacing between wires allows the panels to be cut accurately for custom sizes.

Installation is simple and easy. They come complete with panels, posts, Post caps, U-clips, bolts and nuts in either hot dip galvanised and or powder coated in colours.Steel posts are pre-drilled and ready for assembly on site. For fence height more than 2.4 m, we suggest[Multi-lift erection system'' where one or more panels are placed on top of the bottom panel.



PVC Coated Or Galvanized Rolltop Weld BRC Fencing Mesh Panel For Welded Wire 5

weld-BRC-fence-003





With these features and benefits, roll top weld fence is preferred for residential, commercial and governmental projects. Whether you are a home owner, bussiness owner, architect, contractor or developer, Rolltop weld fence offer substance, style and peace of mind.



Looking for ideal BRC Garden Fence Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Welded Iron Wire Brc Fence are quality guaranteed. We are China Origin Factory of Powder Coated BRC Fence. If you have any question, please feel free to contact us.

Product Categories : Public Wire Mesh Fence > BRC fence

Product Images

powder coated welded iron wire BRC garden fence

powder coated welded iron wire BRC garden fence



NOTES:

  1. Height: the height of the BRC fence panel.
  2. Width: the distance between two BRC fence posts, measure from center to center.
  3. Wire Thickness: diameter of the wire of BRC fence.
  4. Mesh Size: the size of the BRC fence panel mesh, normally is 150mm*50mm.
  5. Metal V Clamp: a “V” shape clamp for connecting the panel with post, normally the material is metal.
  6. Hot Dipped Galvanized: dip the fence in to a container that is full of liquid zinc, to prevent the BRC fence from getting rusty.
  7. Electric Galvanized + Polyester Powder Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, polyester powder layer outside, to prevent the BRC fence from getting rusty.
