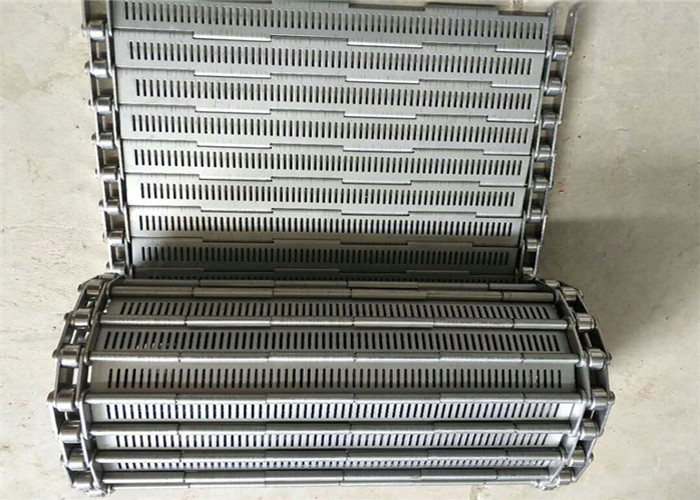

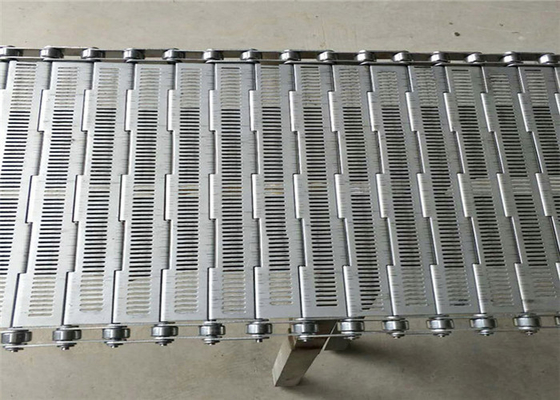

Metal Wave Wire Mesh Belt Food Grade Heat Conveyor Belt Conventional Link

Metal Wave Wire Mesh Belt Food Grade Heat Conveyor Belt Conventional Link
Metal Wave Wire Mesh Belt Food Grade Heat Conveyor Belt Conventional Link Metal Wave Wire Mesh Belt Food Grade Heat Conveyor Belt Conventional Link

Large Image :  Metal Wave Wire Mesh Belt Food Grade Heat Conveyor Belt Conventional Link

Product Details:
Place of Origin: HeBei,China
Brand Name: QiJie
Certification: Certification ISO20200303
Model Number: SGS202003030071
Payment & Shipping Terms:
Minimum Order Quantity: 1m
Price: discuss
Packaging Details: stainless steel covery belt Packaging Details: 1.inside:plastic films 2.outside:bag 3.within wood tray or iron tray, wood box
Delivery Time: 15-30 days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 20000m per month
Detailed Product Description
Material:: Stainless Steel,Carbon Steel Structure:: Belt Conveyor,Chain Conveyor
Wire Diameter:: 0.5-6mm Width:: 200-1200mm
Length:: 10-30m Spiral Pitch:: 50-150mm
Advantage:: 20 Years Production Experiences Packing:: By Craft
High Light:

fence mesh welding machine

,

wire mesh welding machine

Conventional Link Belts Metal Wave wire mesh belt food grade Heat Conveyor Belt

Balanced weave belt/wire link belts

Conveyor Belt Mesh is widely used in friction drive continuous material transport machines. Capable of handling granular materials, this belt is also compatible with the requirements of the production processes of various industrial enterprises, the formation of the rhythmic flow transport line.

Specifications of balanced weave conveyor belt

1, Material: high carbon steel, stainless steel, copper steel, brass steel and other types are available.
2, Spiral diameter: 0.9mm - 3.0mm.

3, Rod wire diameter: 1.2mm - 4.0mm.



Product Description
Metal Wave Wire Mesh Belt Food Grade Heat Conveyor Belt Conventional Link 0
Specifications of balanced weave conveyor belt
Spiral wire pitch
Cross rod pitch
Spiral wire diameter
Cross wire diameter
4mm
4mm
0.9mm - 1.2mm
1.2mm - 1.6mm
5mm
6.4mm
0.9mm - 1.2mm
1.2mm - 1.6mm
5mm
5mm
0.9mm - 1.6mm
1.2mm - 1.6mm
6mm
6mm
0.9mm - 1.6mm
1.2mm - 1.6mm
6mm
8mm
0.9mm - 1.2mm
1.2mm - 1.6mm
6mm
10mm
0.9mm - 1.6mm
1.2mm - 1.6mm
8mm
12mm
1.2mm - 2.0mm
1.2mm - 2.5mm
8mm
13mm
1.2mm - 2.0mm
1.2mm - 2.5mm
8mm
15mm
1.2mm - 2.0mm
1.2mm - 2.5mm
11mm
15mm
1.2mm - 2.0mm
1.2mm - 2.5mm
11mm
20mm
1.6mm - 3.0mm
1.6mm - 3.0mm
11mm
25mm
1.6mm - 3.0mm
1.6mm - 3.0mm
11mm
27mm
1.6mm - 3.0mm
1.6mm - 3.0mm
15mm
20mm
1.6mm - 3.0mm
1.6mm - 3.0mm
15mm
25mm
1.6mm - 3.0mm
1.6mm - 3.0mm
22mm
23mm
1.6mm - 3.0mm
1.6mm - 3.0mm
22mm
33mm
1.6mm - 3.0mm
2.0mm - 4.0mm

How to get exact price?

You would better advise us the specifications as below:

1,Spiral wire D and Rod wire C

2,Spiral pitch A and Rod pitch B

3,The overall length and width

If you don't have the exact data, please advise us your application, we can recommend you the best suitable ptoduct.

Details of belt mesh

Types of balanced weave conveyor belt

The balanced weave conveyor belt can be classified into four main types according to the cross rod and spiral wire.



round wire crimped cross rod type of balance conveyor belt mesh

flat wire crimped cross rod type of balance conveyor belt mesh

Edge types of balanced weave conveyor belt

To extend the lifespan of balanced weave conveyor belt and ensure the high efficient working and conveying, we can supply different edge types for your choice. The main types of balanced weave conveyor belts are as follows:

Welded edge



Welded edge conveyor belt

welded with chain link edge



U-shaped link edge of conveyor belt mesh



Application

The belt has excellent conveying performance no matter on the straight or spiral conveying equipment, so it is popular in the food industries, including cooling, cooling or freezing products.


Packing & Delivery

Mesh belt Packing details:
1. water-proof paper inside then with weaving bag or bubble,at last wooden case
2. according to your requirments
