Product Details:
Payment & Shipping Terms:
|
| Material: | Low Carbon Steel Iron Wire,galvanised Wire | Application: | Security, Prison Fence |
|---|---|---|---|
| Characteristics: | Strong Structure | Wire Diameter: | 4 Mm Usually |
| Product Name: | Security Wire Mesh Fence | Color: | RAL 6005 Green |
| Technique: | Welded Mesh | Surface Treatment: | Galvanized+PVC Coated |
| High Light: | metal security fence panels,metal wire fence panels |
||

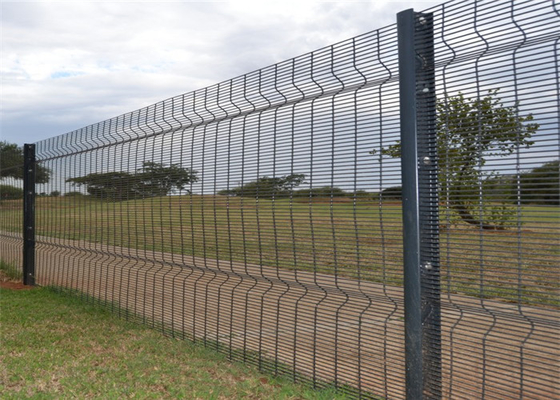

358 Anti-Climb Wire Mesh Fence/Fencing High Security Welded Mesh Fencing Manufacture
High Security Fence, also called 358 fence, which is well-known as anti-climb and anti-cut fence. Perfectly suited to high security applications,like military, airport, prison, warehouse, factory etc.
This high performance system provides the ultimate protection against anti-climb and cut through. With the additional V-top like barbed wire and razor barbed wire, the system will have multiple additional features to aid security.
Product advantage:
358 anti climb fence is in high security perimeter protection, this system is extensively used when defendable space is paramount, used throughout the world in varying application.
358 fence is extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools.
Production flow:
Steel wire -- wire drawing -- wire straightening -- welding -- Powder coating/fully galvanized -- packing
Our QC staff will control the 358 anti-climb fence quality strictly, from raw material, produce process, surface treatment, packing and loading panel into container. We take pictures of every step and send them to our customer.
High quality security wire mesh fence
| Master View 358 | 2.1m | 2.4m | 3.0m |
| Panel height | 2134mm | 2438mm | 2997mm |
| Panel width | 2515mm | 2515mm | 2515mm |
| Mesh size | 12.7 x 76.2mm | 12.7 x 76.2mm | 12.7 x 76.2mm |
| Horizontal wire | 4mm | 4mm | 4mm |
| Vertical wire | 4mm | 4mm | 4mm |
| Panel weight | 50kg | 57kg | 70kg |
| Posts | 60 x 90 x 4 mm | 60 x 90 x 4 mm | 80 x 80 x 4 mm |
| Post length | 2.8m | 3.1m | 4.0m |
Forms of corrosion resistance include electric galvanizing,
hot-dipp galvanizing, PVC spraying and PVC coating.
Colours: Standard colours are Green RAL6005, Black RAL9005 and Yellow RAL1021. Other colours are available on request
358 Security Fence Coating Technique
Panels made out of galvanised wires (min. 40 g/m2). An adhesion coating is given for a perfect adhesion with polyester coating (min. 100 micron)
The posts are polyester powder coated with a galvanised substrate in the accordance with Euro norm 10147 (min. 60 micron)
Our Services
Product Service
Our products offer 10 YEARS GUARANTEE.
Product customization services
We can customize products according to your requirements, including design and drawing.
After-sales service
Our after-sales service start immediately after signing the contract.
1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation, maintenance and repair instructions with full information.
