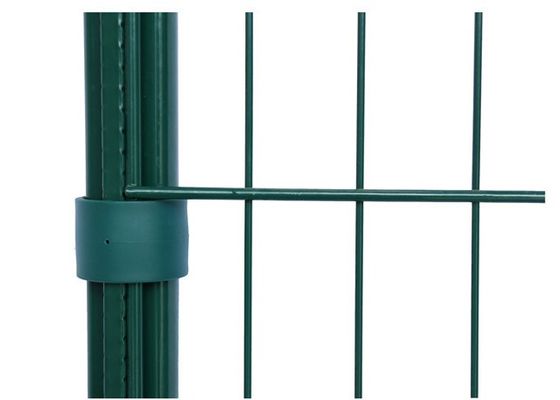

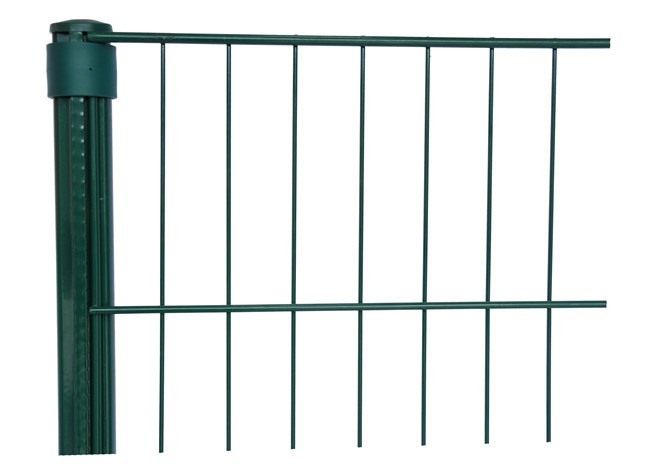

Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel

Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel
Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel

Large Image :  Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel

Product Details:
Place of Origin: CHINA
Brand Name: XMESH
Certification: ISO9001:2008, SGS
Model Number: MFG-656
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sqm
Price: USD $3.88-$20
Packaging Details: Plastic film and wooden pallet or case
Delivery Time: 10-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000 sqm/per day
Detailed Product Description
Material: Low Carbon Wire,galvanzed Iron Wire Mesh Opening: 50mmx100mm
Wire Diameter: 2x6mm,5mm Panel Height: 630mm To 2430mm
Panel Width: 2500mm Surface Treatment: Powder Coating
High Light:

8mm welded wire mesh panel

,

8mm welded wire fence panels

,

50mmx100mm welded wire mesh panel

Wire Fence Welded Mesh Safety Fencing Powder Coated 4/6/8mm Euro Panel



Product Details

Twin wire mesh fencing is considered to be one of the best solutions for those that need a high security fence that is less dangerous to children and young people than other types of security fencing such as palisade. The mesh is made up of 5mm vertical steel wires which are then pressed between two 6mm horizontal wires that run parallel to each other, it comes pre-galvanised and powder coated as standard with the most popular colour being green. This being said we can provide twin wire mesh fencing in any of the standard RAL colours to make sure that your fence suits the surrounding environment. Please note however that ordering some of the not so popular colours may result in the league time of your fence being increased by a few days.

2D Panels Parameters

Description SIZE color PCS/PALLET
DINO Panel, wire thickness 4/6/8mm, Mesh Size 250x50mm, galvanised iron wire and green powder coating 2000x500x250x50mm Dino panel,RAL6005 60
2000x750x250x50mm Dino panel,RAL6005 60
2000x1000x250x50mm Dino panel,RAL6005 60
2000x1250x250x50mm Dino panel,RAL6005 60
2000x1500x250x50mm Dino panel,RAL6005 60
2000x1750x250x50mm Dino panel,RAL6005 60
2000x500x250x50mm Dino panel.RAL7016 60
2000x750x250x50mm Dino panel.RAL7016 60
2000x1000x250x50mm Dino panel.RAL7016 60
2000x1250x250x50mm Dino panel.RAL7016 60
2000x1500x250x50mm Dino panel.RAL7016 60
2000x1750x250x50mm Dino panel.RAL7016 60

Product advantages

  • Rigidity - The 2D panels are rigid due to the use of heavy welded mesh in conjunction with double horizontal twin wires.
  • High longevity - The coating technology guarantees an extra high longevity. After galvanising an adhesion coating is applied for a perfect bond with the polyester coating of 100 micron to 120 micron.
  • Complete system - The Nylofor 2D system includes panels in different mesh apertures and heights, posts with adapted fixation systems and a large range of mesh and gates. All components guarantee a fast and professional installation.

Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel 0

Post Paremeters:

Post Height Post Style
Burying style Bass style
1400mm 1200mm

square

peach

round

1600mm 1400mm
2000mm 1700mm
2200mm 1900mm
2300mm 2000mm
2500mm 2200mm

Processing procedure

Straightening and cutting short - Welding - Galvanized - Powder coated - Packaging - Shipping
Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel 1

Packaging

Fence Panel:

1) It has a rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels.

2) It has 4 metal corners to keep the pallet more strong.

3) It has a metal plate under the plastic bandage to reduce the pressure of fence panels.

4) It has the wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.

Fence Post:

1) The caps have been installed on the top of the post, which reduce your labour cost and installing time.

2) Each post are packed by a long plastic bag avoiding damaged by friction.

3) All posts are packed by the metal pallet for loading and unloading.

Workshop&Loading

Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel 2 Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel 3

Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel 4 Safety Fencing Powder Coated 8mm Welded Wire Mesh Panel 5
