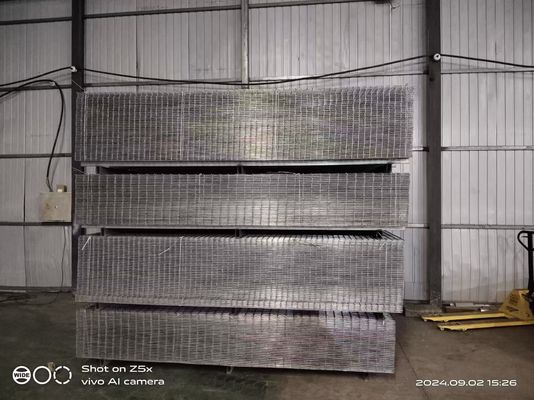

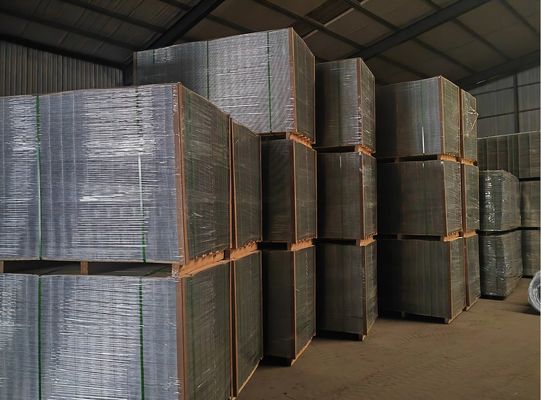

Low Carbon 50mmx50mm 2.5mm Welded Wire Mesh Panels

Low Carbon 50mmx50mm 2.5mm Welded Wire Mesh Panels
Low Carbon 50mmx50mm 2.5mm Welded Wire Mesh Panels Low Carbon 50mmx50mm 2.5mm Welded Wire Mesh Panels

Large Image :  Low Carbon 50mmx50mm 2.5mm Welded Wire Mesh Panels

Product Details:
Place of Origin: CHINA
Brand Name: XMESH
Certification: ISO9001:2008,SGS
Model Number: QJ20201103211
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: USD $5.99-$17.99
Packaging Details: Plastic film and pallet
Delivery Time: 10-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000 pcs/per day
Detailed Product Description
Material: Low Carbon Iron Wire,Galvanized Wire Hole Size: 50mmx50mm
Wire Gauge: 2.5mm-3.0mm Width: 1200mm
Length: 2000mm-3000mm Surface Treatment: Galvanized
High Light:

50mmx50mm welded wire mesh panels


2.5mm welded wire mesh panels


1200mm Welded Wire Mesh Panels

Low carbon galvanized iron wire/galvanized square welded wire mesh fence panels

Product Description

3D wire mesh panel is a new type of building wall material. It can replace the brick wall to be used as load-bearing walls, non-load-bearing walls and floors, balconies and so on. It has features of expanding building area (10% -15%), fire resistant, noise insulation, heat insulation, earthquake resistanct, waterproof and light weight etc. All these features greatly reduce the cost of your construction project.

Mesh Panel:

Wire panels generally welded with wires of diameter 2.5mm-3.0mm and surface treatment with galvanized or non-galvanized. All the processings involved in the production composing the 3D panel system are continuously abide ISO9001:2008.

EPS Polystyrene Foam:
The EPS (sintered foam polystyrene) is made up of carbon, hydrogen and air. It is realized starting from the polymerization of styrene, a monomer obtained from oil and present in common food too (ex.: wheat, strawberries, meat, coffee). The latter, before being foamed, shows itself in the shape of little transparent pearls. Thickness, shape and density of the Emmedue panel polystyrene core may change according to specific requirements. The minimum density normally used is equal to 15 kg/m³.

Low Carbon 50mmx50mm 2.5mm Welded Wire Mesh Panels 0

Standard Specification

The side panel mesh is commonly 2" opening with 11 or 12 gauge wire, surface with galvanized wire panel or hot dip galvanized wire panel. Inserted EPS size is 2", 2.5" and 4".

1. Wire Mesh Materail:galvanized iron wire(electric or hot dipped)
Wire diameter:2.0mm-4.0mm
Mesh size:50mm x 50mm,100mmx100mm
2. Diagonal Wire Material:galvanized iron wire(electric or hot dipped)
Type:truss type and W type. Spacing as required.
3. EPS Core W1200mmxL2400(length from 2000mm-6000mm)
Thickness:40mm or 50mm for interior wall;100mm for bearing wall;120mm for exterior wall.
4. Outer Shotcrete 10mm-16mm for wall, 20mm for load bearing wall.

Low Carbon 50mmx50mm 2.5mm Welded Wire Mesh Panels 1

Benifits of 3D EPS Panel

1. Thermal Insulation
The EPS foam that is known as the internal thermal insulation to reduce the loss of heat. It also makes the comfortable indoor space regardless of temperature variation in all seasons.
2. Fire proof
It has passed the test of the national construction institute and also been approved as the fireproofing materials for internal & external construction stuffs.

3. Humidity proofing
As we have used the high performance foaming polystyrene 100m/m2 of low absorptiveness, it shows an excellent prevention against the condensation on the wall.

4. Sound proof
On the base of sound insulation performance test, 3D panel has shown a distinguished feature. Especially, it shows a good operation capability with both sides plasterboard.

5. Light weight
3D EPS panels only weighs a quarter of the masonry wall, which alleviates the fixed load of structure and highly recommended in the enlargement of old buildings.

Applicaton of 3D EPS Panel

The 3D Panel building system has tremendous flexibility - it can be used in place of wood or metal-framed walls, masonry block walls or pre-cast panels. It is an excellent structural system that can be used in floors, ceilings, and roofs. The 3D Panel building system saves construction time while providing greater structural integrity.

Low Carbon 50mmx50mm 2.5mm Welded Wire Mesh Panels 2

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
