Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | Hebei, China | Brand Name:: | QIJIE |
|---|---|---|---|
| Model Number:: | QJ-0093 | Type:: | Welded Mesh |
| Application:: | Construction Wire Mesh | Hole Shape:: | Square |
| Wire Diameter:: | 8 Gauge 4mm, 3mm | Weight:: | 9.5KG/Sheet |
| High Light: | 1/4 x 1/4 inch welded wire mesh,1/4 x 1/4 inch construction wire mesh,3mm Welded Wire Mesh |
||

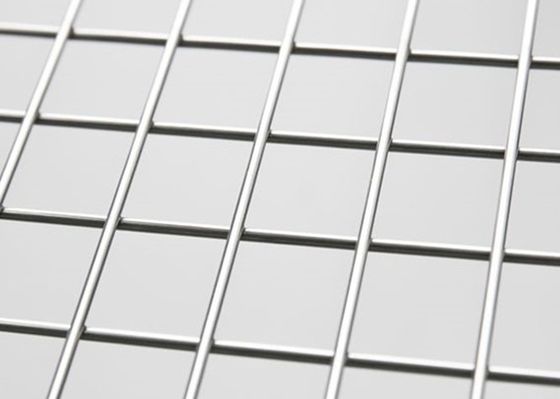

1/4x1/4inch,1/2x1/2inch,1x1inch,2x2inch Stainless Steel Welded Wire Mesh
Product Information
Raw Material: Available in Stainless Steel and Galvanized Material Types: Including galvanized welded wire mesh (electro galvanized welded wire mesh, hot-dip galvanized welded wire mesh),welded stainless steel wire mesh and PVC coated welded wire mesh. According to different process: Electro-galvanized welded wire mesh can be classified to electro-galvanized before welding and electro galvanized after welding. Hot-dip galvanized welded wire mesh can be classified to hot-dip galvanized before welding and hot-dip galvanized after welding. PVC /Powder Coated After Welded Characteristic: Steady construction, good corrosion resistance and oxidation resistance, etc. Application: Welded Wire Mesh widely used in the industry, agriculture, aquaculture, building, communication and transportation and mineral extraction, etc. It serves as guards,fences in buildings and factories, Welded wire mesh in agriculture as animal enclosure ,poultry cage, basket for holding eggs, foodstuff basket, paper basket or decorative fields in home or office.; Welded wire mesh also serves in horticulture industry as guards for trees and plants etc.
The details of stainless steel welded wire mesh/wire mesh welded netting:
|
WIRE DIAMETER
|
hole size
|
Width
|
Length
|
|
1.65mm
|
15x15mm
|
1.0/1.2/1.5m
|
25/30m
|
|
1.9mm
|
75x50mm
|
1.0/1.2/1.5/1.8/2.0m
|
20/25/30m
|
|
2.0mm
|
50x100mm
|
1.0/1.2/1.5/1.8/2.0m
|
20/25/30m
|
|
2.3mm
|
50x150mm
|
1.0/1.2/1.5/1.8/2.0m
|
20/25/30m
|
|
2.76mm
|
50x100mm
|
1.0/1.2/1.5/1.8/2.0m
|
20/25/30m
|
|
2.76mm
|
50x150mm
|
1.0/1.2/1.5/1.8/2.0m
|
20/25/30m
|
|
1.24mm
|
25x25mm
|
0.5/1.0m
|
25/50m
|
Technical specifications:
| Product Name | 1/4x1/4inch,1/2x1/2inch,1x1inch,2x2inch Stainless Steel Welded Wire Mesh |
|---|---|
| Certificate | SGS |
| Opening size | 1/4x1/4inch,1/2x1/2inch,1x1inch,2x2inch |
| Technique | Dutch Woven Wire Mesh |
| Material | Low carbon iron wire, galvanized iron wire, stainless steel wire SS304,316L etc |
| Application | Welded wire mesh are widely used in construction reinforcent, the ground gor the tunnels, bridges, highway,airport and wharf, also in construction of wall body. |
Feature of 1/4x1/4inch,1/2x1/2inch,1x1inch,2x2inch Stainless Steel Welded Wire Mesh:
1.Flat and bright surface,durable structure,
2.Won't become deformed even if part breaking,
3.Anti-corrosion
4.Widely applications and long lifetime
Technical specifications:
Pro Quality of 1/4x1/4inch,1/2x1/2inch,1x1inch,2x2inch Stainless Steel Welded Wire Mesh:
Stainless steel welded wire mesh is processed by projection welding,which results in the welded wire mesh surface much flat,uniform opening,much more stable and anti-corrosion.
PFM stainess steel welded wire mesh is widely made of Stainless steel201,202,304,304L,316,316L etc stainless steel wires.
With the precision automatic machine,the stainless steel welded wire mesh has the more advantages than the other material welded wire mesh:
Welded wire mesh is made of high quality low carbon steel wire line of welding and become, then cold (plating), hot dip plating, PVC plastic coated surface passivation, plasticizing process, smooth surface, uniform mesh, solder joints strong, local good machining performance, stability and good anti-corrosion.
Surface treatment: Hot-dipped galvanized after welding, hot dipped galvanized before welding, PVC coated wire mesh, electro galvanized after welding, electro galvanized before welding and stainless steel welded wire mesh.
There are many types of packaging for galvanized steel welded wire mesh 3mm for sale .Such as: In roll, in carton, on palle and so on.
