Product Details:
Payment & Shipping Terms:
|
| Material Feature:: | Heat Resistant | Structure:: | Belt Conveyor |
|---|---|---|---|
| Place Of Origin:: | Hebei, China | Voltage:: | 220V |
| Dimension(L*W*H):: | 100*3000*2 | Belt Material:: | SS304 / SS 316 |
| Spiral Pitch:: | 50mm | Rod Pitch:: | 6-12mm |
| High Light: | 50mm wire mesh conveyor belt,50mm wire mesh belt,SS304 wire mesh conveyor belt |
||

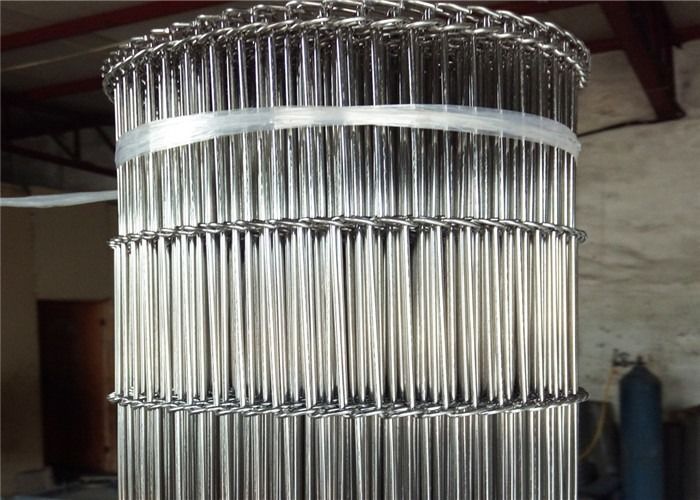

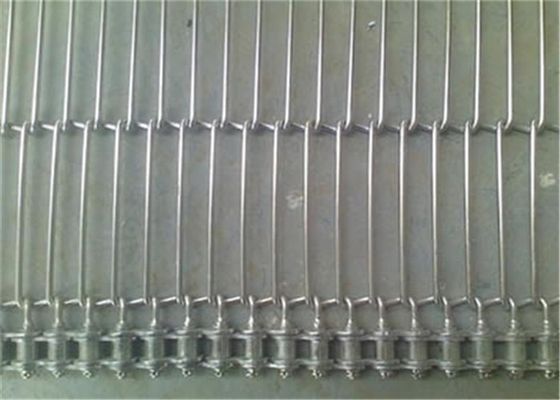

Stainless Steel Wire Mesh Convey Belt/food Industry Chain Conveyor Belt Mesh
Product Description
Food conveyor belt
Flat flex belts can be made for straight conveyors and for curve conveyors.
Flat flex belts are normally driven by toothed sprockets, made of (stainless) steel or plastic. The number of teeth is free to choose and can be made for every new or existing conveyor.
This belts are often used in conveyors for the food industry for the production of:
snacks -fish -pizzas -vegetables -bread
pastry -meat -candy - (small) potatoes
-biscuits -chocolate -nuts and fruits
|
Material
|
Stainless steel wire(AISI304, AISI304L, AISI316, AISI316L),galvanized iron wire,nickel chrome wire,copper wire,polyester wire etc
|
|
Weaving method
|
Common weaving,strength weaving,sectional common weaving,etc.
|
|
Mesh Size
|
6*50mm, 10*70mm, etc
|
|
Thickness
|
1.0mm-2.0mm
|
|
Width
|
500-2000mm
|
|
Length
|
2m-10m
|
|
Features
|
Heat-resisting and high carrying capacity,acid-proof and oxidation-proof.
smooth belt surface,High allowable belt tension,No belt slip,Improved belt design,One module thus minimal clearance,More even heat distribution |
2. run straight without guidance
3.can working at low to high temperatures
4.resistant to acid, alkaline, chemical corrosion, abrasion
5.smooth conveying surface
6.long service life
Packaging:
1. Inside with plastic bag and outside with wooden box.
2. According to customers' request.
Shipping: 7-15 days after received advanced payment.
1.Quick-frozen, baking machinery plane conveyor, screw conveyor.
2.Food machinery of the cleaning, sterilization, drying, cooling, cooking and so on
3.Glass machinery lose bottle annealing, roast flowers, etc.
4.All kinds of pipeline transport.
5.Food processing industry, dehydrated vegetables, frozen food iqf machine pretreatment mesh belt, chain network.
6.Powder metallurgy, metal heat treatment, hardening, sintering, brazing, roasting, bright, black, bearing, carburizing high-temperature LuWang belt, baffle type drying conveyor mesh belt, mesh belt, foam nickel mesh belt production line, washing machine, winding machine, drying machine, dryer, curing LuWang belt.Each delivery such as process equipment.
