Metal siding 20 gauge corrugated steel roofing sheets steel plate
Product Description
as the substrate, after surface pretreatment (chemical degreasing and chemical conversion treatment), the surface coated with a layer or several layers of organic coating, and then through curing products.
Color coated coil substrate have hot dipped galvanized coils, galvalume coils, aluminum coils, etc.
Because of a variety of different colors of organic paint color steel coil plate named, short for color coated coil. or PPGI coils, or PPGL coils.
Use: roof, wall, wall, workshop, partition, partition, ceiling and other buildings.
Product Specification
| |
Shape |
| |
Regular Wave |
T shape |
| Thickness |
0.13-0.4mm |
0.13-0.5mm |
| Width |
665mm/800mm/900mm |
680/840/1000/1025/1050mm |
| Length |
less than 4m |
2-12m |
| Basic Material |
PPGI/PPGL |
| Place of Origin |
Shandong Province,China |
| Grade |
DX51D+Z,DC51D+Z,SPCC,SGCC/SGHC.SGCD,ect. |
| Coating thickness |
Top side: 13-15μm |
| Back side:5-7μm |
| Zinc Coating |
30-275g |
| Color |
According RAL code |
| Package |
Export standard package |
| Tolerance |
Thickness: +/-0.02mm, Width:+/-2mm |
| Regular MOQ |
20 tons or one container, for less quantity, to contact with us for details |
| Shape |
wave and T shape |
| Loading Port |
Any port in China |
| Supply Ability |
30000 Ton/Tons per Month |
| Payment terms |
30% T/T deposit in advance, 70% T/T balance after B/L copy, L/C at sight,. |
| Delivery times |
Within 15-20 days |
|
Application Range
|
building industry, structural use, roofing, commercial use, household appliance, industry facilities, office buildings, etc. |
| Logo |
Customized |

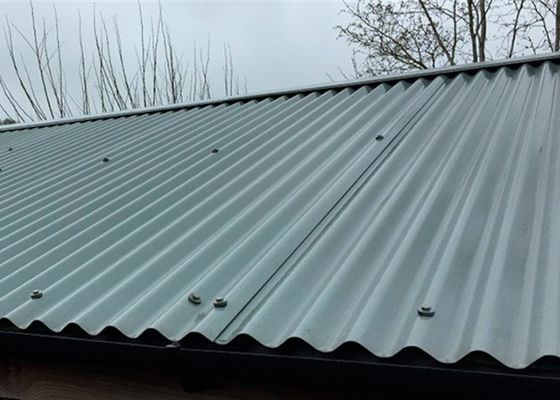

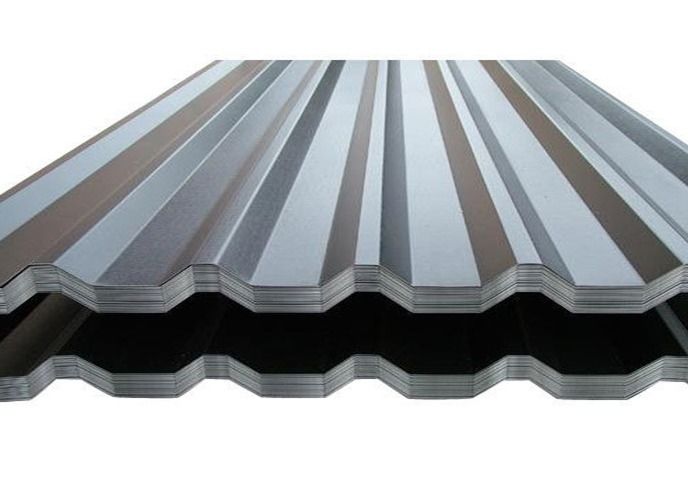

Product Show
Product Details
Product Process
The production process of hot-dip galvanized sheet:preparation of original board → pre-plating treatment → hot dip plating → post-plating treatment → finished product inspection. According to the habits, the hot-dip galvanizing process is divided into two categories: off-line annealing and in-line annealing.
Packing & shipping
FAQ
Q:What is your payment terms?
A:30% deposit & balance against B/L or L/C at sight.
Q :What is your delivery time & loading port?
A:Usually is 15-30days after received advance payment or L/C.loading port: TIANJIN XINGANG.
Q:Do you have MOQ request? Can offer free samples?
A:Our MOQ is usually 1x20ft container. Free samples is OK but need pay the courier charge. Charge can be deduct in future orders.
Q:where is your company located?
A:Our company is located in Anping city, Hebei Province, China.1 hours from Beijing Airport. 1 hours from Shanghai Airport. 2.5hours from Guangzhou Baiyun International Airport. 100km far from Zhengding port
