Product Details:
Payment & Shipping Terms:
|
| Color: | Silvery | Coil Weight: | 1kg-1000kgs/coil |
|---|---|---|---|
| Product Name: | Galvaized Iron Wire,20guage 0.7mm Electro Galvanized Iron Wire For Binding | Name: | High Quality Bwg 21 Bwg 22 Electro Galvanized Binding Wire |
| Package: | 5kg--500 Kg/coil Common,Big Coil Wire | Diameter: | 0.5mm-4.5mm |
| High Light: | 4.0mm chain link fence accessories,hdg chain link fence accessories,chain link fence steel pulling wire |
||
4.0mm Hot Dipped Galvanized Pull Wire For Chain Link Fence Accessories
Pull wire 4.0mm galvanized iron wire is mainly used for tension wire and loop the chain link fabric.
Loop the wire around the chain link on both ends and crimp it. Pull the wire close on both ends to pull the bamboo up against the fence. Then wrap the excess wire around the chain-link next to each end. Wrap it 3-4 times around the chain and use a crimping tool or channel lock to bend the wire firmly at the end to secure it.
Tension wire is an important part of chain link fencing. It secures the bottom and top of your chain link fence to ensure the chain links remain tight to the posts and rails. We have created this how-to guide to teach you the properly install tension wire for fences.
Galvanized Iron Wire Galvanized wire is a major mesh wire (wire material for mesh weaving or welding), binding wire and core wire. The welded mesh can be manufactured with pre-galvanized wire, then powder coated. Galvanized wire is also a ready core wire for making of powder coated wire.
Hot-dip zinc galvanized steel wire enjoys excellent corrosion resistance. Depending on zinc layer thickness, it can be used for several years or decades before heavily oxidized.
Both electro and hot dipped galvanized wire can be used individually, or to be further coated with plastic for a better property.
Materials: Low carbon, medium carbon or high carbon steel.
Finishes: Hot dipped galvanized, electro galvanized, PVC coated, black annealed, bright galvanized or oil painted.
Wire Diameter: From BWG 8# to 34#.
Application:
For mesh weaving and welding;
Core wire for production of powder coated wire;
Binding and tying uses.
Redrawing Galvanized Wire Coils
High tensile brush wire, hose wire, mesh wire
Processing: Redrawing and electric galvanizeded
Feature: Excellent tensile strength and flexibility
Gauge: BWG11 to 34
Wire diameter: 3.00 mm to 0.20 mm.
Packing: in coils.
GI Binding Wire
Mild Steel Galvanized Wire
Size: 1.0mm
Hot Dipped Galvanised Wire
Size: 2.50mm
Zinc Coating : min 60g/m2
Tensile Strength : 35-50kgs/mm2
Roll Weight: 500kgs/roll

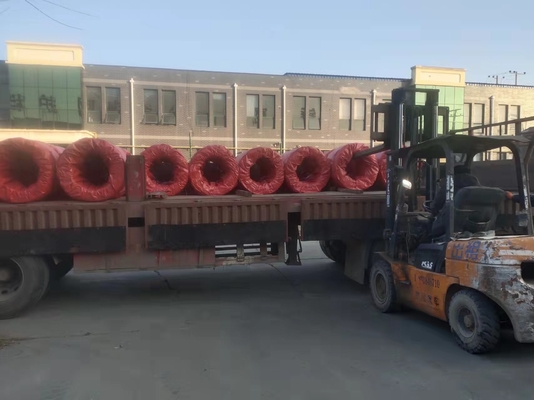

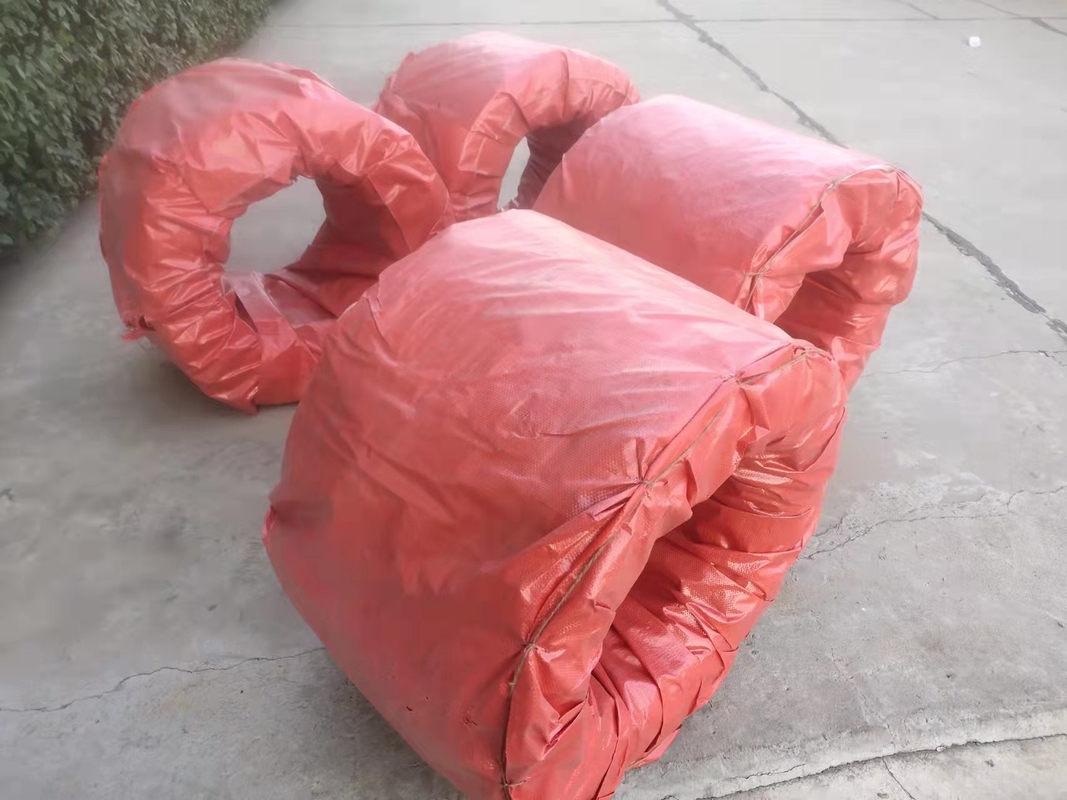

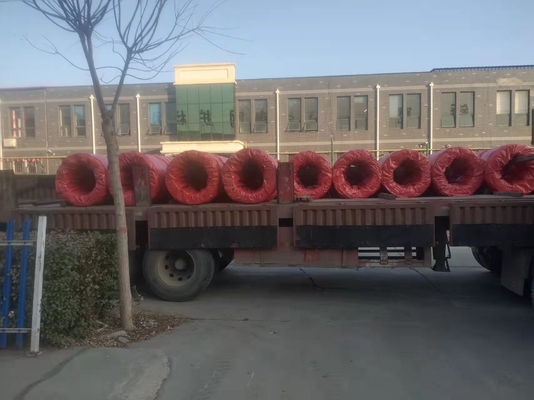

Packing: Inner Plastic Film and Outer Woven Bag
Straightened Cut Electro Galvanized Wire
Size length: 40 cm
Wire diameter: 1mm, 2mm, 2.5mm, 3mm
Straight & Pre-Cutted Galvanised Wire
Wire: 5mm Diameter
Cut length: 3 meter
Material : #45 carbon steel with galv.
Packing: in 5kg, 20kg per box.
First in bundles, plastic film, strap secured.
Electro Galv. Wire Common Specifications
| SIZE | Diameter(mm) | Standard Bundle Weight (Kg) |
| 8# | 4.0 | 50 |
| 10# | 3.5 | 50 |
| 12# | 2.8 | 50 |
| 14# | 2.2 | 50 |
| 16# | 1.6 | 50.25 |
| 18# | 1.2 | 25 |
| 20# | 0.9 | 25 |
| 22# | 0.7 | 10-25 |
Zinc Coating Amount Applied for Cold / Electro Galvanized Steel Wire:
| SIZE mm | (g/㎡)Min. zinc coating | |||||||
| A | AB | B | C | D | E | F | ||
| A1 | B2 | |||||||
| ≤0.25 | 18 | 15 | 12 | 5 | ||||
| 〉0.25-0.40 | 25 | 20 | 12 | 5 | ||||
| 〉0.40-0.50 | 25 | 20 | 15 | 8 | ||||
| 〉0.50-0.60 | 25 | 20 | 15 | 8 | ||||
| 〉0.60-0.80 | 20 | 15 | 10 | |||||
| 〉0.80-1.20 | 25 | 18 | 10 | |||||
| 〉1.20-1.60 | 25 | 18 | 12 | |||||
| 〉1.60-1.80 | 100 | 70 | 40 | 30 | 20 | |||
| 〉1.80-2.20 | 105 | 80 | 50 | 40 | 20 | |||
| 〉2.20-2.50 | 110 | 80 | 55 | 40 | 25 | |||
| 〉2.50-3.00 | 120 | 90 | 70 | 45 | 25 | |||
| 〉3.00-4.00 | 100 | 85 | 60 | 30 | ||||
| 〉4.00-5.00 | 110 | 95 | 70 | 40 | ||||
Hot Dip Galvanized Wire Common Specifications
| Wire size (mm) | Coiled wire (coil diameter) | Spool wire (weight) | Rosette big coil or big carrier with handles | |
| (mm) ID | (mm)OD | |||
| 0.15—0.26 | 6 inch | 1—14 kg | ||
| 0.27—0.60 | 8 inch | 1—100 kg | ||
| 0.61—1.60 | 12 inch, 14 inch, 16 inch | 1—100 kg | 250-400 | 400-770 |
| 1.61—6.00 | 450 508 |
800 840 |
||
Zinc Coating Applied for Hot Dipped Galv. Wire:
| size (mm) | Min. zinc coating (g/㎡) | |||||||
| A | AB | B | C | D | E | F | ||
| A1 | B2 | |||||||
| ≤0.25 | 30 | 20 | 18 | |||||
| 〉0.25-0.40 | 30 | 25 | 20 | |||||
| 〉0.40-0.50 | 30 | 20 | ||||||
| 〉0.50-0.60 | 35 | 20 | ||||||
| 〉0.60-0.80 | 120 | 110 | 40 | 20 | ||||
| 〉0.80-1.00 | 150 | 130 | 45 | 25 | ||||
| 〉1.00-1.20 | 180 | 150 | 50 | 25 | ||||
| 〉1.20-1.40 | 200 | 160 | 50 | 25 | ||||
| 〉1.40-1.60 | 220 | 180 | 35 | 30 | ||||
| 〉1.60-1.80 | 220 | 180 | 70 | 40 | 30 | |||
| 〉1.80-2.20 | 230 | 200 | 80 | 50 | 40 | |||
| 〉2.20-2.50 | 240 | 210 | 80 | 55 | 40 | |||
| 〉2.50-3.00 | 250 | 230 | 90 | 70 | 45 | |||
| 〉3.00-4.00 | 270 | 250 | 100 | 85 | 60 | 30 | ||
| 〉4.00-5.20 | 290 | 270 | 245 | 110 | 95 | 70 | 40 | |
| 〉5.20-6.00 | 290 | 270 | 245 | 110 | 100 | 80 | 50 | |
