| Hole Shape: | Square | Wire Gauge: | 0.3mm-8.0mm |
|---|---|---|---|
| Application: | Construction Wire Mesh,building | Type: | Welded Mesh,Panel Or Roll |
| Width: | 0.5m To 2.2m | Length: | 30m,50m,10m,25m |
| Usage: | Building,construction | Packing: | Waterproof Paper,Pallet,In Roll,Panel |
| Color: | Silver | Feature: | Waterproof,Anti-rust,Anti-corrosion |
| Name: | Welded Wire Mesh | Hole Size: | 5/8'' As Customer Request |
| Wire Diameter: | 1.0mm~4.50mm | ||
| High Light: | 2inch openning heavy welded wire panels,ss316 heavy welded wire panels,6 gauge welded wire mesh fence panels |
||

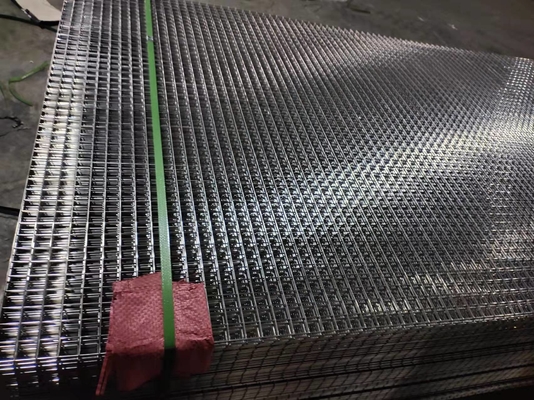

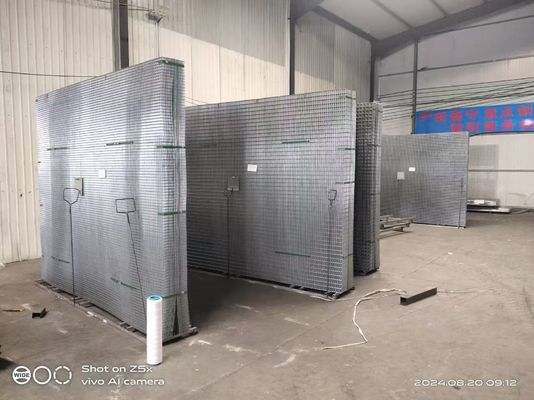

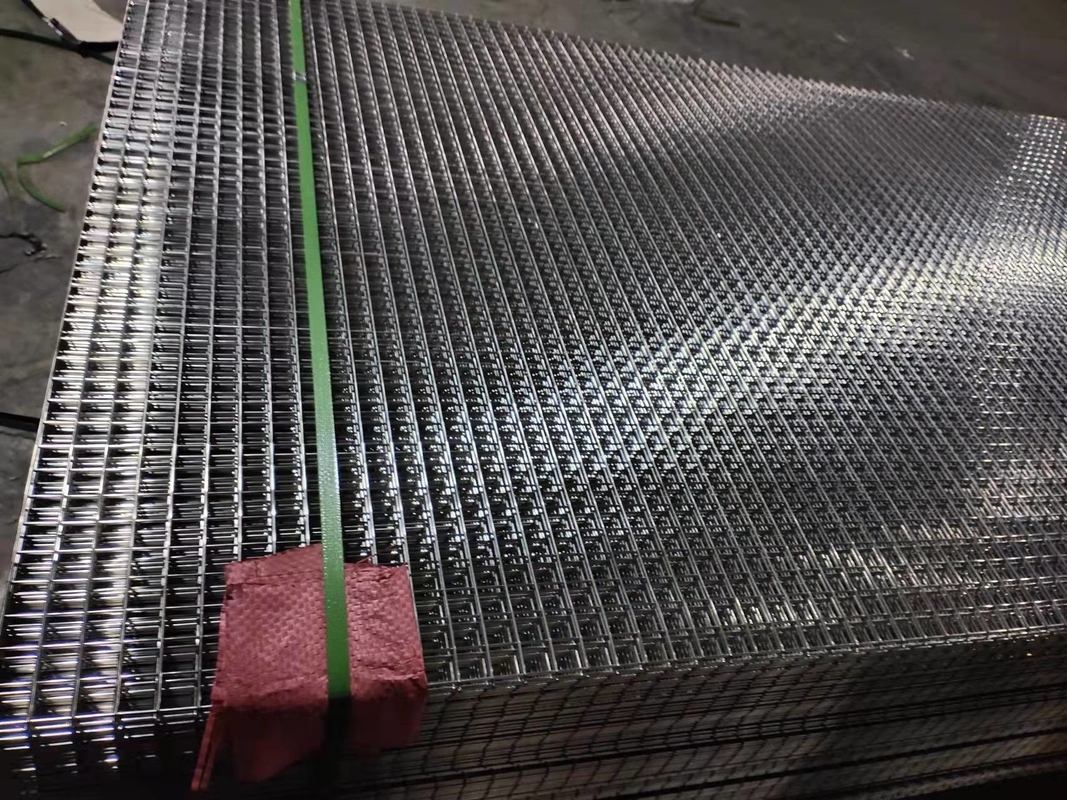

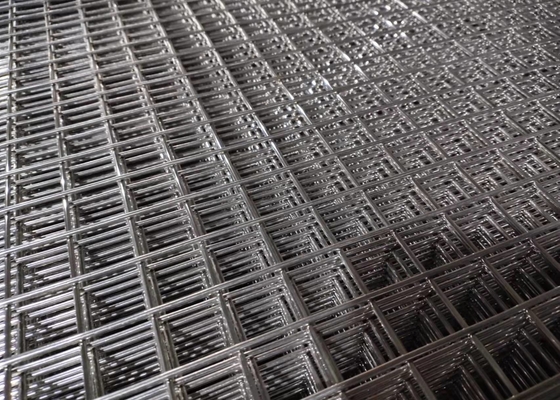

2 Inch Openning Stainless Steel 304 Welded Wire Mesh Panels
We stock a wide range of stainless steel welded mesh panels. Our welded mesh panels are available in Grade 304 and Grade 316 with either square or rectangle apertures.
Welded mesh panels are commonly used for:
Wire Materials:
The main material of stainless steel welded mesh panels are mild steel wire and stainless steel wire.
Characteristics:
Stainless Steel Welded Mesh Panels offer excellent characteristics such as corrosion resistance, oxidation resistance, acid resistance, alkali resistance, aging resistance, sunshine resistance and weather resistance. Besides this kind of product has flat even surface and strong structure, therefore this product has a long service life. Good material life of up to several decades.
Applications:
Stainless Steel Welded Mesh Panel with excellent corrosion resistance and oxidation resistance, is extensively used as fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.
We offer welded mesh panels from our locations in Anping County, China.
The most popular products and specifications
| Item | Mesh Size | Wire Diameter | Panel Width & Length | |
|---|---|---|---|---|
| SWMPS-01 | 12.7 mm | 1/2" × 1/2" | 1.0–2.0 mm | 3 feet × 6 feet 4 feet × 8 feet 5 feet × 10 feet 1 m × 2 m 1.5 m × 3 m 2 m × 4 m |
| SWMPS-02 | 25.4 mm | 1" × 1" | 1.5–3.5 mm | |
| SWMPS-03 | 38.1 mm | 1-1/2" × 1-1/2" | 2.0–5.0 mm | |
| SWMPS-04 | 50.8 mm | 2" × 2" | 2.0–6.0 mm | |
| SWMPS-05 | 76.2 mm | 3" × 3" | 3.0–7.0 mm | |
| SWMPS-06 | 101.6 mm | 4" × 4" | 3.0–8.0 mm | |
| SWMPS-07 | 127 mm | 5" × 5" | 4.0–9.0 mm | |
| SWMPS-08 | 152.4 mm | 6" × 6" | 4.0–10.0 mm | |
| other panel sizes can also be made according to request | ||||
| Mesh mm | Diam mm | Width mm | Length mm | Grade | Panel Kg |
| 25 x 25 | 2.5 | 1200 | 2400 | 304 | 9.2 |
| 25 x 25 | 2.5 | 1200 | 2400 | 316 | 9.2 |
| 25 x 25 | 3 | 1200 | 2400 | 304 | 12.9 |
| 25 x 25 | 3 | 1200 | 2400 | 316 | 12.9 |
| 25 x 50 | 3 | 1200 | 2400 | 304 | 9.7 |
| 40 x 40 | 3 | 1200 | 2400 | 304 | 8.1 |
| 40 x 40 | 3 | 1200 | 2400 | 316 | 8.1 |
| 40 x 40 | 4 | 1200 | 2400 | 304 | 14.6 |
| 40 x 40 | 4 | 1200 | 2400 | 316 | 14.6 |
| 50 x 50 | 3 | 1200 | 2400 | 304 | 6.5 |
| 50 x 50 | 3 | 1200 | 2400 | 316 | 6.5 |
| 50 x 50 | 4 | 1200 | 2400 | 304 | 11.7 |
| 50 x 50 | 4 | 1200 | 2400 | 316 | 11.7 |
| 50 x 50 | 5 | 1200 | 2400 | 304 | 18.3 |
| 50 x 50 | 5 | 1200 | 2400 | 316 | 18.3 |
| 50 x 75 | 5 | 1200 | 2400 | 304 | 15.3 |
| 75 x 13 | 4 | 1200 | 2400 | 316 | 26 |
| 100 x 100 | 3 | 1200 | 2400 | 304 | 3.4 |
| 100 x 100 | 3 | 1200 | 2400 | 316 | 3.4 |
| 100 x 100 | 5 | 1200 | 2400 | 304 | 9.4 |
| 100 x 100 | 5 | 1200 | 2400 | 316 | 9.4 |
| 100 x 100 | 6 | 1200 | 2400 | 304 | 13.5 |
| 100 x 100 | 6 | 1200 | 2400 | 316 | 13.5 |
| 100 x 100 | 8 | 1200 | 2400 | 316 | 24 |
| 150 x 150 | 6 | 1200 | 2400 | 316 | 9.4 |
| 200 x 200 | 6 | 1200 | 2400 | 316 | 7.1 |
