Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Field Installation,commissioning And Training | Wire Diameter: | 2.5mm-4mm,0.45-2.6mm |
|---|---|---|---|
| Welding Speed: | 40-60times/min | Application: | Mesh Fence/construction,for Making Chain Link Fence |
| Width: | 2-4m | Mesh Size: | Can Be Customizable |
| Mesh Width: | 2500mm(customzied) | Control System: | PLC+touch Screen |
| Mesh Type: | Rolling Mesh | Warranty: | 2 Years |
| Color: | Can Be Customized,Customer's Requirement | ||
| High Light: | 3m automatic chain link fence machine,touchscreen automatic chain link fence machine,plc chain link fencing machine |
||

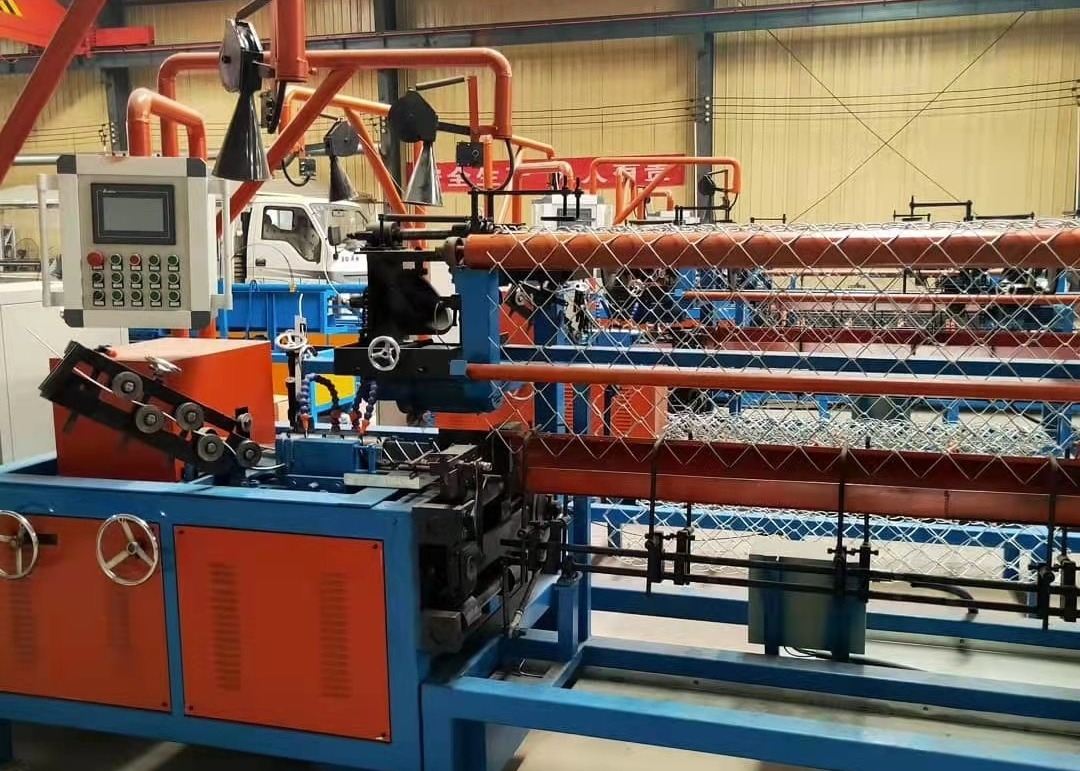

Double Wire Automatic Chain Link Wire Mesh Fence Machine 3m Width
Automatic Double Wire Chain Link Fence Machine
Full automatic chain link fence machine includes:main machine,weaving machine mesh rolling machine and border wire treating machine as well as all related accessories,it can produce many different hole size of the mesh with different molds.The machine is controlled by PLC system,we can set the length of the fence by PLC program.
Chain Link Fence Machine Specifications
| Mesh width | 3000mm |
| Maximum mesh hole size | 100mm |
| Minimum mesh hole size | 25mm |
| Maximum Wire diameter | 4.0mm |
| Minimum Wire diameter | 1.8mm |
| Material type | Galvanized wire, Black wire or cold-drawn uncoated wire |
| Selvage type | Hook edge or Screw edge |
| Machine speed | 80-120 Square meters / hours |
| Machine weight | 3.2T |
| Machine size | 5.0x2.0x1.8m |
| Machine voltage | That we can do 415 v - 240 v, 50 HZ |
| Number of moulds included | 1one set(1Knife plate, 1Mold barrels). |
| Drive system type | Servo motor(EURA) 5.5KW |
| PLC brand | Delta |
| Control system type | YouKong |
| Control system brand | YouKong |
| Adjustment parameters | On the touch screen |
| Delivery time | 15 day |
Our Machine Advantage:
1) Higher productivity:70-100m2/hour and low noise.
2) Fully automatic (feeding wire, twist/ knuckle sides, winding up final rolls,mesh width,length,mesh hole
automatic control);
3) Famous brand PLC like Mitsubishi/Siemens/Delta+touchscreen for your choice;
4) Wide range of wire diameter selection:1.2-4.5mm.
5) Having alarm function when emergency matters occure and stop automaticlly.
6) Distance switch and guiding wheel to inspect feeding system automatically.
7) Free mold which can allow customer to produce different kinds of mesh hole. Molds can be customized as
customer request.
8) Mesh side:Knuckled and twisted, both knuckled, both twisted for your choice.
9) Any customized machine is acceptable and welcome to communicate.

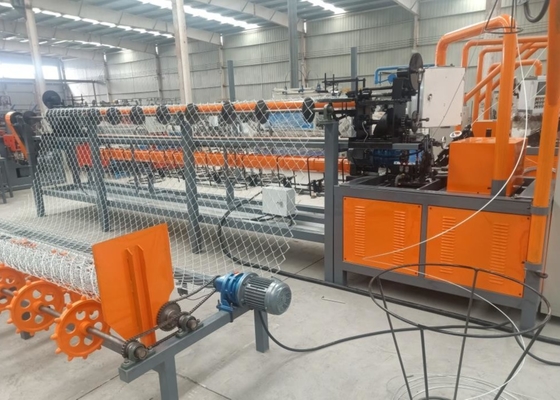

Chain Link Fence Machine Pictures:
Mesh sides:
Knuckled type:
Twisted type:
Some other detailed pictures for your reference:
Compacting Machine:
Compacting machine is optional for your choice which can make the storage of finished
products more convenient and reduce the storage space.
Compacting finished products
Mold Samples
Chain Link Fence Machine Finished Product
Feature /advantage of chain link fence machine
1. Two sets mold for free.
2. Automatic alarm system.
3. Double wire system, more efficient.
4. Mechanical automatic roll wire mesh.
5. The main motor uses the servo motor.
6. The wire mesh width is adjusted automatically.
7. The machine is controlled by the touch screen.
8. Can be used with kinds of galvanized or pvc wire.
About after-sales service and installation machinery.
The seller will send our engineer to install the machine accordingly if the buyer need.
The buyer have to pay the salary $80 per day, and the air ticket, accommodation,
eating and some related fees should be your responsibility.
