Product Details:
Payment & Shipping Terms:
|
| Type: | Welded Wire Mesh | Material: | Black Wire, |
|---|---|---|---|
| Wire Diameter: | 4-12mm | Surface Treatment: | Hot Dipped Galvanized Or Powder Coated |
| Feature: | Good Integrity And A Competitively Long Service Life | Size: | Customized |
| High Light: | construction welded wire mesh panel 8ft x 4ft,4mm galvanised mesh panel,welded wire mesh panel 8ft x 4ft |
||

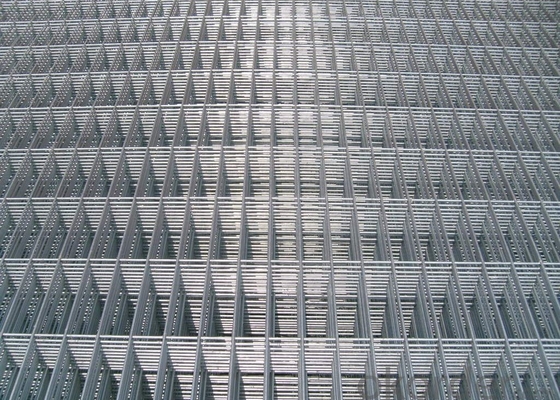

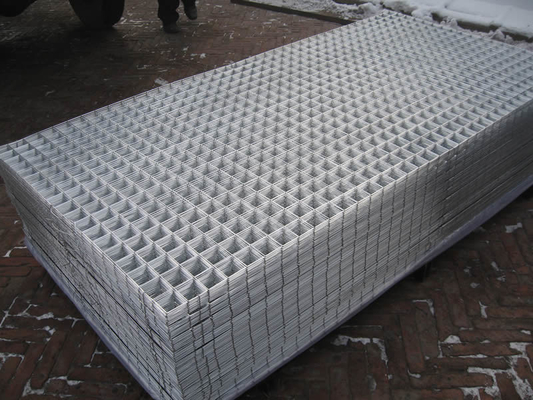

Hot Dipped Galvanized 4mm Construction Welded Wire Mesh Panel
Welded wire mesh also named welded wire mesh plain wire, generally for the square hole, more specifications, can be produced according to customers'' different purposes. Welded by low carbon steel wire.
Mainly used in industry, agriculture, construction, farming and pastoral farming industry security ring protection, but also for machine protection, plant quarantine warehouse, working blue basket and basket products, shelf brackets and decoration can be used in various industries.
Mesh type, black wire mesh, galvanized wire mesh, electro galvanzied after welded wire mesh, hot DIP galvanized after welded wire mesh, plastic coated mesh, PVC coated 5 varieties.
Welded wire mesh baskets used in river rocks, dams, slope protection and erosion protection seawall and reservoirs, rivers, waters, etc...
| Material | Low carbon steel wire, galvanized wire, stainless steel wire, aluminum-magnesium alloy wire |
| Process | Welded after galvanized and galvanized after welding |
| Mesh | 75mm x 150mm |
| Size | 1800mm x 3000mm(or more) |
| PVCCoating Thickness | 0.5mm ~ 1.0mm |

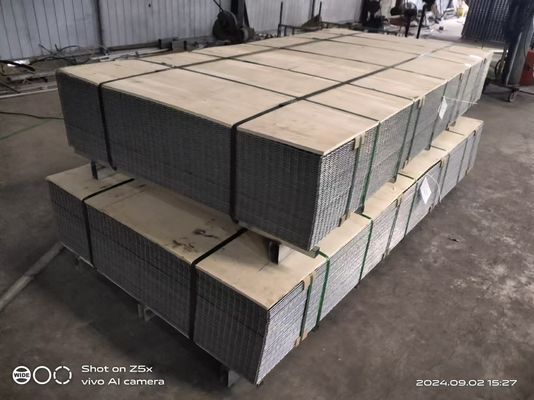

| Packing | Bare or pallet |
| Mesh | Wire Diam | ||
| In Inch | In mm | Wire Gauge | In mm |
| 1″ × 1″ | 25mm × 25mm | 14# - 11# | 2.0mm - 3mm |
| 2″ × 1″ | 50mm × 25mm | 14# - 8# | 2.0mm - 4mm |
| 2″ × 2 " | 50mm × 50mm | 14# - 8# | 2.0mm - 4mm |
| 3″ × 2 " | 75mm × 50mm | 14# - 6# | 2.0mm - 5mm |
| 3″ × 3 " | 75mm × 75mm | 14# - 6# | 2.0mm - 5mm |
| 4″ × 2 " | 100mm × 50mm | 14# - 4# | 2.0mm - 6mm |
| 4″ × 4 " | 100mm × 100mm | 14# - 4# | 2.0mm - 6mm |
| 5″ × 5 " | 125mm × 125mm | 14# - 4# | 2.0mm - 6mm |
| 6″ × 6 " | 150mm × 150mm | 14# - 4# | 2.0mm - 6mm |
| Note: Special specifications can be customized. | |||
