Product Details:
Payment & Shipping Terms:
|
| Material: | Low Carbon Steel Wire, Stainless Steel Wire | Welded Wire Mesh Variety: | Hot Dipped Galvanized After Welding Welding With Hot Dipped Galvanized Iron Wire Electro Galvanized After Welding Welding With Electro Galvanized Iron Wire PVC Coated Welded Wire Mesh. |
|---|---|---|---|
| Characteristics: | It Has The Good Property Of Corrosion-resisting And Oxidation-resisting | Usage: | It Is Widely Used On The Industry, Agriculture, Building, Transportation, Mine, Field, Lawn, Cultivation, Profession's Guard, Decorate, Machie Protection Etc. |
| High Light: | 12gauge galvanized welded iron wire mesh,reinforcing galvanized welded iron wire mesh,12gauge electro galvanized welded wire mesh |
||
| Welded wire mesh panel | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 2''*3'' | 50mm*75mm | 2.0mm,2.mm,1.65mm |
| 3''*3'' | 75mm*756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2''*4'' | 50mm*100mm | 2.11mm,2.5mm |
| 4''*4'' | 100mm*100mm | 2.0mm,2.5mm |
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| PVC Coated Welded Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
| Technical Note: | ||
| 1,Standard roll length: 30m;width: 0.5m to 1.2m | ||
| 2,Special sizes available at request | ||
| 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Packing &Shipping

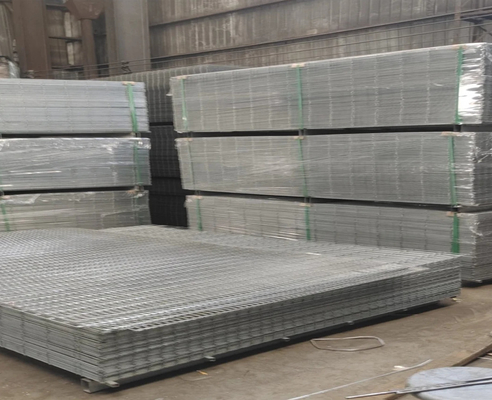

Packed in bundles and stretch films outside or according to your requirement.
Characteristic
smooth and trim mesh surface, solid and uniform structure and superior integral performance, it won't loosen even subject to local cutting or pressure, It has the characteristics of corrosion-resisting and oxidation-resisting.
Application

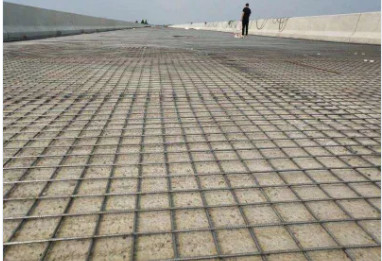

welded wire mesh is extensively used in industry and agriculture construction,transportation and mining for all such purposes as poultry houses, egg baskets,runway enclosures, floor heating draining rack, fruit drying screen, fence, fruit drying screen, fence and other industries.
