Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Wire,82B | Wire Diameter: | 15.2mm |
|---|---|---|---|
| Size: | 12.7mm(0.5"),15.24mm(0.6") | GRADE: | 1860Mpa |
| Construction: | 1x7 | Packing:: | 2.5-3.2tons/coil On 2 Pallets |

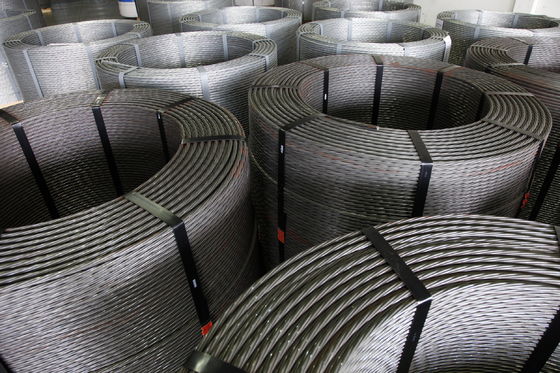

EN10138 PC Wire Strand For Prestressed Concrete (15.2mm/0.6"&12.7mm/0.5")
1.Technical date
7-Wire Uncoated Steel Strand for Prestressed Concrete as per ASTM A 416
| Min.Breaking Strength |
Nominal Dia. |
Dia. Tolerance |
Norminal Steel Area |
Nominal Weight |
Min. Breaking Load |
Min.Load at 1%Extension |
Min.Elongation Lo≥610mm |
0.7 G.U.T.S 1000hNorminal Relaxation |
| MPA | mm | mm | Mm2 | Kg/Km | KN | KN | % | % |
| 1860 | 9.53 |
+0.66,-0.15 |
54.84 | 432 | 102.3 | 92.1 |
≥3.5 |
≤2.5 |
| 11.11 | 74.19 | 582 | 137.9 | 124.1 | ||||
| 12.70 | 98.7 | 775 | 183.7 | 165.3 | ||||
| 15.24 | 140.0 | 1102 | 260.7 | 234.6 | ||||
| 17.80 | 190.0 | 1492 | 353.0 | 318.0 | ||||
| 2000 | 12.70 | +0.66,-0.15 | 98.7 | 775 | 197.4 | 177.7 | ≥3.5 | ≤2.5 |
| 15.24 | 140.0 | 1102 | 280.0 | 252.0 |
7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224
| Min.Breaking Strength |
Nominal Dia. |
Dia. Tolerance |
Norminal Steel Area |
Nominal Weight |
Min. Breaking Load |
Min.Load at 1%Extension |
Min.Elongation Lo≥610mm |
0.7 G.U.T.S 1000hNorminal Relaxation |
| MPA | mm | mm | Mm2 | Kg/Km | KN | KN | % | % |
| 1860 | 9.50 | +0.30,-0.15 | 54.8 | 432 | 102 | 86.6 |
≥3.5 |
≤2.5 |
| 11.10 | 74.2 | 580 | 138 | 117 | ||||
| 12.70 |
+0.40,-0.20 |
98.7 | 775 | 184 | 156 | |||
| 15.20 | 140 | 1101 | 259 | 220 | ||||
| 15.70 | 150 | 1178 | 279 | 251 | ||||
| 17.80 | 191 | 1500 | 353 | 318 | ||||
| 1960 | 12.70 | +0.40,-0.20 | 98.7 | 775 | 193 | 174 | ≥3.5 | ≤2.5 |
| 15.20 | 140 | 1101 | 274 | 247 |
2.The Main products of ours
1.EN10138 PC Steel Strand for Bridges on railway
2.BS5896 Post Tennsion PC Steel Strand(12.7mm)
3.PC Wire Strand for prestressed Concrete(15.2mm)
4.Post Tension PC Wire Strand(15.24mm)
5.Low Relaxation PC Steel Strand for the Construction(15.2mm)
6.Prestressed Concrete Strand for the Construction 12.7mm
7.Post Tension Strand for rock-soil anchoring(0.5”)
8.Post Tension Concrete Strand for construction
9.High Tension PC Steel Strand(15.24mm)
10.High Tension PC Steel Strand(12.7mm)
11.7 PC Steel Wire Strand for Bridge
12.ASTM A 421 Prestressed Precast Concrete Steel Wire 5.0mm
13. 7 Wire 82B Steel Strand 12.7mm Prestressed Concrete Steel Strand
14.Precast Concrete Steel Wire Strand
15.PC Strand for Steel Concrete Engineering
16.Low Relaxation Prestressing Concrete Strand
17.Building Engineering Materials PC Strand
18.ASTM A 416 Post Tension Wire Strand Cable
19.PC Cable for Construction(15.24mm)
20.12.7mm Post Tension PC Cable for Bridge
21. 7 wire Post Tensioning Strand-Seven Wires 12.7mm
22. ASTM A 416 PC Steel Strand for Larg-Span Bridges
23.Steel Wire Strand for Rock-Soil Anchoring Project
24. 7 Wires PC Steel Strand for the Highway
25.Prestressing Concrete 7-wire strand 15.7mm for building/Bridge/Highway Construction
26.Prestressing Concrete 7-wire strand 15.7mm BS5896
27.PC Steel Cable Wire Grade 270KSI
28.Bridge Material PC Steel Strands 15.2mm/0.6”
29.15.2mm Post-Tensioning Steel Cable for Building Construction
30.15.2mm Low Relaxation Prestressed Concrete Steel Strand Wire
31. ASTM A 416 15.2mm PC Strand for Railway Sleeper 1860Mpa
32.ASTM A 416 12.7mm PC Strand for Railway Sleeper 1860Mpa
33.0.5’’ 12.7mm PC Strand 7 –Wire Highwat/Bridge Construction
34.Overhead Crane Beam Used 0.5” 12.7mm PC Strand
3, Structure of pc strand wire
7 wire, 12 wire, 17 wire, 19 wire and more
