Product Details:
Payment & Shipping Terms:
|
| Material: | Hot Dipped Galvanized Wire | Surface Treatment: | Hot Dipped Galvanized, Galvanized, Electro Galvanized |
|---|---|---|---|
| Wire Diameter: | 23gauge, 8gauge,9gauge | Mesh Openning: | 1/2"x1/2", 3/4"x3/4", 1"x1" |
| Width: | 3ft(0.914m), 4ft(1.22m), 5ft(1.52m), 6ft(1.82m) | Length: | 100ft(30.48m), 50ft(15.24m), |
| Function: | Snake Fencing, Animal Fencing | ||
| High Light: | Hot DIP Galvanized Welded Wire Mesh,50mmx50mm Welded Wire Mesh |
||

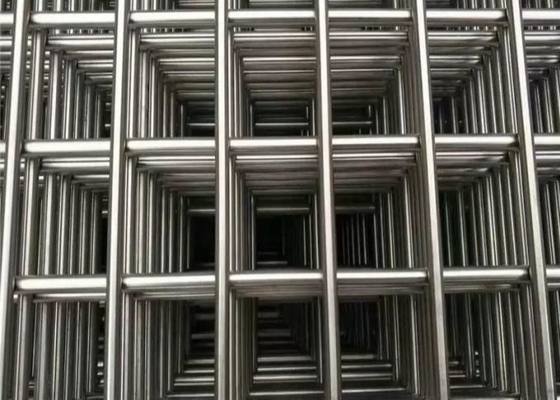

50mm*50mm Hot DIP Galvanized Welded Wire Mesh Panel For Construction For Bird Cage Floor Heating
Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
Feature: corrosion resistance, aging resistance, sunshine resistance and weather resistance.
Forms of corrosion resistance: Electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC coating.
| Wire Diameter | Mesh | Width | |
| inch | mm | ||
| 2.0mm ~ 3.2mm | 1" | 25.40 | 0.914m ~ 1.83m |
| 2.0mm ~ 4.5mm | 2" | 50.80 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 3" | 70.20 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 4" | 101.6 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 5" | 127.0 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 6" | 152.4 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 7" | 177.8 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 8" | 203.2 | 0.914m ~ 2.75m |
Welded Wire Mesh
Welded wire mesh, or welded wire fabric is a steel reinforcement material in concrete. The mesh is used for replacing the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control. The product results in considerable savings in time, labour and money.
Use: The welded wire mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.
Type: Galvanized welded wire mesh, Stainless steel welded wire mesh, PVC coated welded wire mesh.
Stainless Steel Welded Wire Mesh
Stainless steel welded wire mesh is strong and long lasting. By it's very nature stainless steel wire needs no additional finish, such as galvanizing or PVC, to protect it. The wire itself is extremely resistant to rust, corrosion and harsh chemicals. If you need a welded mesh or fence in an area with prolonged exposure to corrosives, stainless steel products will meet the demands.
The following specifications are most commonly available. Heavier gauges and other mesh sizes can be made to order. There may be minimum quantity or set-up charges required.
Material: SS201, SS202, SS302, SS304, SS304L, SS316, SS316L etc.
Weaving and Characteristics: We can also produce ultra-long and ultra-width etc. Special standard welded wire mesh, the width can reach to 2.1m, the biggest wire diameter is 5.0mm, the products is fit for the top quality fence netting, supermarket product frame, decorated inside and outside, food basket, advanced for animal cultivation. It has the merit of the intensity is high, no rust, anti-corrosion acid-resisting, alkali-resisting and anti-high temperature etc.
| Specification List of Welded Wire Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||

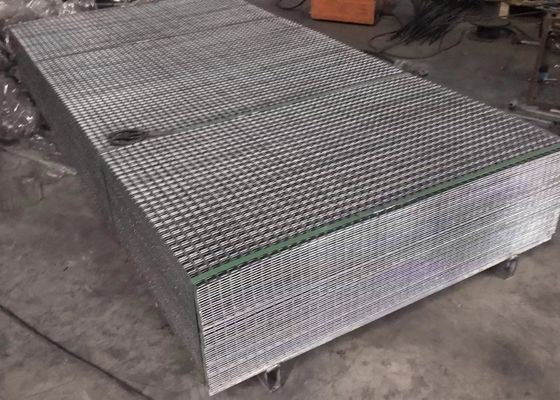

welded wire mesh panels

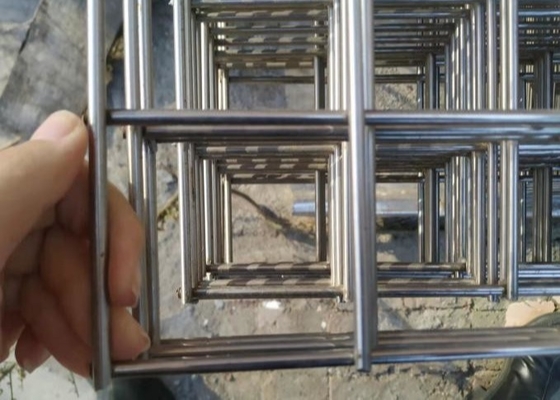

welded wire mesh panels

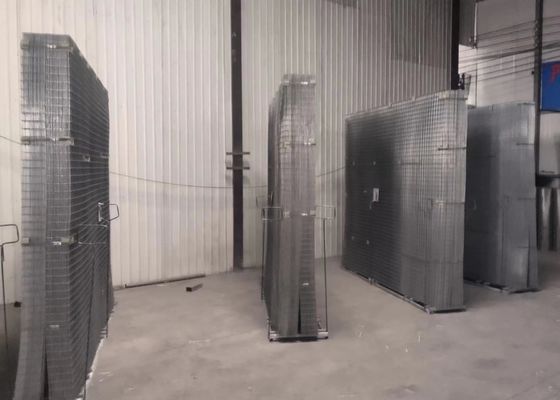

welded wire mesh panels
