Product Details:
Payment & Shipping Terms:
|
| Material: | Hot Dipped Galvanized Wire | Surface Treatment: | Hot Dipped Galvanized, Galvanized, Electro Galvanized |
|---|---|---|---|
| Wire Diameter: | 23gauge, 8gauge,9gauge | Mesh Openning: | 1/2"x1/2", 3/4"x3/4", 1"x1" |
| Width: | 3ft(0.914m), 4ft(1.22m), 5ft(1.52m), 6ft(1.82m) | Length: | 100ft(30.48m), 50ft(15.24m), |
| Function: | Snake Fencing, Animal Fencing | ||
| High Light: | Stainless Steel 304 Welded Wire Mesh,Stainless Steel 316 Welded Wire Mesh |
||
1.22m X 2.44m Stainless Steel 304 316 Welded Wire Mesh Panel For Construction
Product introduction:
Galvanized PVC Or Stainless Steel Welded Wire Mesh
Characteristics:
The welded wire mesh is welded by excellent lowcarbon steel wires and Passivated and plasticized through cold plating (electro plating), hot dipping and PVC plastic coating. With flat surface, even mesh count, firm welding spots and stable structure, it features its strong completeness, partial good machining performance, stability, excellent corrosion resistance and rush prevention.
Material:
Low-Carbon Iron Wire, Galvanized Iron Wire, Stainless Steel Wire
Several common types and surface treatment:
| Welded Wire Mesh | |||
| Opining | Wire Diameter | ||
| Inch | mm | BWG | mm |
| 1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm |
| 2"x1" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm |
| 3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm |
| 4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm |
| 4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm |
| 5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm |
| 6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
| PVC Coated Welded Mesh | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4"x1/4" | 6.35mx6.35mm | 21,22,23,24,24,25 |
| 1/2"x1/2" | 12.7mmx12.7mm | 16,17,18,19,20,21 |
| 3/4"x3/4" | 19mmx19mm | 16,17,18,19,20,21 |
| 1"x1" | 25.4mmx25.4mm | 15,16,17,18,19,20 |
| Technical Note: 1.Standard roll length:30m;width:0.5m to 2.5 2.Special sizes avaliable at request 3.Packing:in plastic in rolls .Custom packing available at request |
||
Production Process:
Welded wire mesh selection of high-quality low-carbon steel wire, through the automation of precision and precision mechanical processing after forming, the use of zinc surface treatment process, the net surface is smooth and tidy, solid structure evenly.
Packing and delivery:
1. Panels: Shrink plastic film then packed in the pallets.
2. RolIs: By water-proof paper then shrink plastic bag. Or according to customer's request.
3. Special packing is accept as your request.
4. Welded wire mesh neatly placed in the transport vehicle, so that products can reach the destination safely.

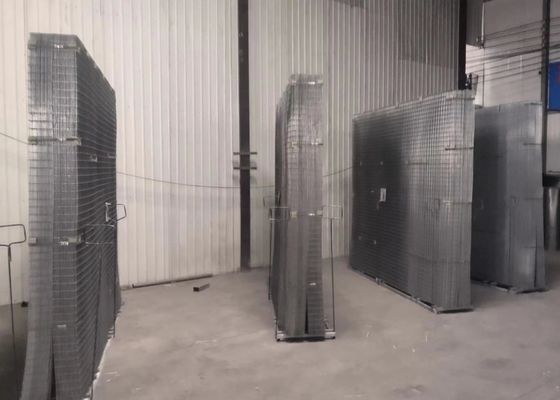

stainless steel welded wire mesh panels
stainless steel welded wire mesh panels
black welded wire mesh panels
