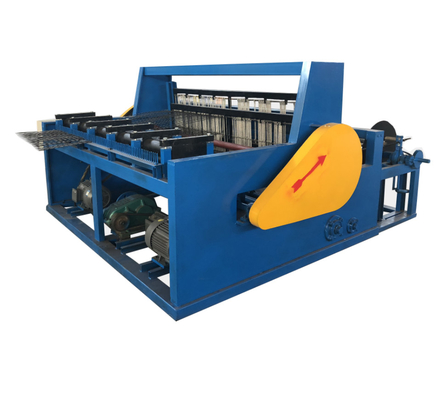

0.4mm - 12mm Crimped Wire Mesh Making Machine customizable

0.4mm - 12mm Crimped Wire Mesh Making Machine customizable
0.4mm - 12mm Crimped Wire Mesh Making Machine customizable 0.4mm - 12mm Crimped Wire Mesh Making Machine customizable 0.4mm - 12mm Crimped Wire Mesh Making Machine customizable

Large Image :  0.4mm - 12mm Crimped Wire Mesh Making Machine customizable

Product Details:
Place of Origin: China
Brand Name: QIJIE
Certification: ISO SGS
Model Number: QJ-CL-068
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: USD 10000/SET
Delivery Time: 15 working days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 6 set/month
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Field Installation,commissioning And Training Wire Diameter: 2.5mm-4mm,0.45-2.6mm
Welding Speed: 40-60times/min Application: Mesh Fence/construction,for Making Chain Link Fence
Width: 2-4m Mesh Size: Can Be Customizable
Mesh Width: 2500mm(customzied) Control System: PLC+touch Screen
Mesh Type: Rolling Mesh Warranty: 2 Years
Color: Can Be Customized,Customer's Requirement
High Light:

Crimped Wire Mesh Making Machine

,

12mm Wire Mesh Making Machine

,

0.4mm Wire Mesh Making Machine

0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale And Manufacturer

This is our other wire mesh machine:



0.4mm - 12mm Crimped Wire Mesh Making Machine customizable 0







Automatic Mine Vibrating Screen Crimped Wire Mesh Making Machine



Crimped wire mesh machine can be divided into three types: semi-automatic crimped wire mesh machine, automatic crimped wire mesh machine, hydraulic Crimped Wire Mesh Machine



* Supply new Semi-automatic crimped wire mesh machine for mine sieve mesh

The series of Semi-automatic crimped wire mesh machine weave crimped wire net of

steel, iron, lead and stainless steel wire with big diameter. The net is weaved by the

machine after the thick wire is formed to crimp by the rolling machine. Breadth of thnet is 0.9-2.5m and the diameter of the wire is 2.0-8.0mm. The size of the mesh is2×2mm-80×80mm. The structure of the machine is compactness and rational.

It performs satisfactorily and runs smoothly.
Breadth of the net produced by each gauge of the machine can be adjusted in a certain extent.





* Fully Automatic Crimped Wire Mesh Weaving Machine Factory

The series of automatic crimped wire mesh machine can finish the work from making the wire crimp
to formation of the net automatically. Breadth of the net is 0.9-2.5m and the diameter of the wire is 0.4-
2.2mm. The size of the mesh is 1×1-20×20mm2. The weaving speed can reach 53times shuttle
/minute.The properties of fast, easy to operate and good performance of the machine are fond by the
users.

1. Full-automatically crimped wire mesh weaving machine

Mesh width 2m (you could choice 2.5m, 3m)
Mesh opening 0.3-20mm
Wire diameter 0.8mm-1.8mm
Dimension 1500*1800*1300mm
Weight 3.4 Ton


Detail:





0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer







0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer



2. Semi automatic crimped wire mesh machine

Mesh width 2.5m (you could choice 2.5m, 3m)
Mesh opening 2-50mm
Wire diameter 2-6mm
Capacity 5 rods/min
Dimension 2.9*2.05*1.7 M
Shipping one 20 GP (FCL)



0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer

0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer

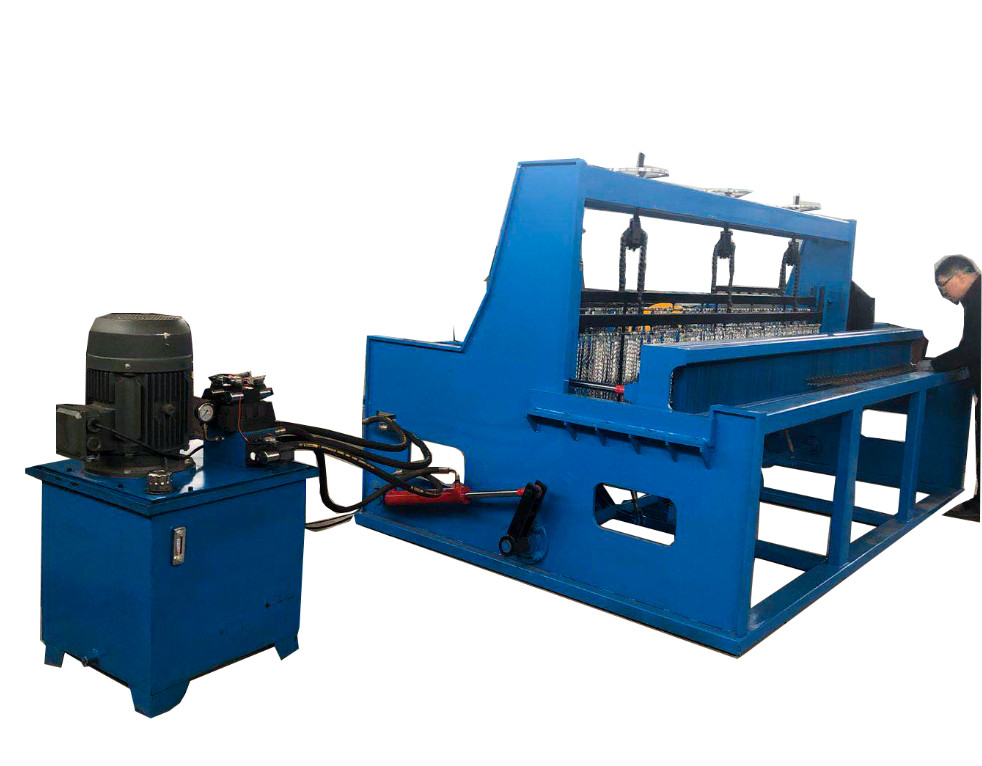

3. Hydraulic pressure Crimped wire mesh machin

Mesh width 2m (you could choice 2.5m, 3m)
Mesh opening 10-100mm
Wire diameter 5-12mm
Capacity 10 rods/min
Dimension 2.8*2.1*1.5M
Weight 3.2 Ton
Shipping one 20 feet container



0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer



0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer





0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer





This is our crimped mesh machine loading pictures



0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer



0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer



0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer



We still had the wire bending machine: 0.5mm to 12mm

0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer



This is our crimped mesh panel beding machine

For the machine could bending 1-3 m wire mesh





0.4mm-12mm Crimped Wire Mesh Making Machine Wholesale and Manufacturer
