100x100mm Stainless Steel 304 Welded Wire Mesh, Rolls And Panels
Stainless Steel Welded Wire Mesh, Rolls and Panels
Stainless steel welded wire mesh is a durable and strong hardware mesh with square hole or rectangular hole structure. Supplied in rolls or flat panels. Formed with stainless wire of same diameter in both directions welded together a flat surface matting or fabric with uniform openings.
The material wire is rust resistant, corrosion resistant that can be exposed to corrosion for a long time. Because of its natural properties, stainless steel welded wire mesh need no additional finish procedures to protect it.
Material: Mainly stainless steel wires. Mild steel, bright annealed mild steel, galvanized steel material can be also applied.
Roll size :
Roll Width: 24inch, 36inch, 1metre, 48inch, or 72inch.
Roll Length: 100 feet or 150 feet.
Note: other roll width or roll length can be made according to request.
Stainless Steel Welded Wire Mesh, 304 and 316 Grade
Stainless Steel Welded Wire Mesh Grade 304
Mesh Size 25x25 (1"x1")
Wire Diameter 3mm (11 SWG)
Welded Stainless Steel 316 Wire Mesh
Open mesh 1/2 "
Wire dia.2mm
Roll size: 5ft widthx500 meters
Stainless Steel Wire Mesh Panels with Free Wire Above the Panels
SS Wire Mesh
Free wire above weld mesh panels for tying
Horizontal wire: 2.5mm diameter
Vertical wire: 3.0mm diameter
Stainless Steel Wire Mesh Welded Panels with Free Wire
Tying of Adjecent SS Welded Wire Mesh with 14 SWG SS Wire
SS Wire Mesh, Welded
SS Wire Mesh
As per drawing.
2.5 mm Dia Horizontal Wire: Spacing 200mm
3mm Dia Vertical Wire: Spacing 100 mm
Free Wire above weld mesh Panel - 1700mm
Height
mm |
Width mm |
Nos per Tower |
Area / Mesh
Sqm |
Area / Tower sqm |
| 5400 |
1200 |
900 |
6.48 |
5832 |
| 5400 |
1200 |
900 |
6.48 |
5832 |
| 5400 |
1300 |
25 |
7.02 |
175.5 |
| 5400 |
1100 |
425 |
5.94 |
2524.5 |
| 5400 |
1200 |
150 |
6.48 |
972 |
| 5400 |
1000 |
25 |
5.4 |
135 |
| 5400 |
1200 |
300 |
6.48 |
1944 |
| Specification List of Welded Stainless Steel Wire Mesh |
| Opening |
Wire Diameter <BWG> |
| In inch |
In metric unit(mm) |
| 1/4" x 1/4" |
6.4mm x 6.4mm |
22, 23, 24 |
| 3/8" x 3/8" |
10.6mm x 10.6mm |
19, 20, 21, 22 |
| 1/2" x 1/2" |
12.7mm x 12.7mm |
16, 17, 18, 19, 20, 21, 22, 23 |
| 5/8" x 5/8" |
16mm x 16mm |
18, 19, 20, 21, |
| 3/4" x 3/4" |
19.1mm x 19.1mm |
16, 17, 18, 19, 20, 21 |
| 1" x 1/2" |
25.4mm x 12.7mm |
16, 17, 18, 19, 20, 21 |
| 1-1/2" x 1-1/2" |
38mm x 38mm |
14, 15, 16, 17, 18, 19 |
| 1" x 2" |
25.4mm x 50.8mm |
14, 15, 16 |
| 2" x 2" |
50.8mm x 50.8mm |
12, 13, 14, 15, 16 |
| Galvanized Welded Wire Mesh for Fence: |
| Opening |
Wire Diameter<BWG> |
| In inch |
In metric unit(mm) |
| 2" x 3" |
50mm x 75mm |
2.0mm, 2.5mm, 1.65mm |
| 3" x 3" |
75mm x 75mm |
2.67mm, 2.41mm, 2.11mm, 1.83mm, 1.65mm |
| 2" x 4" |
50mm x 100mm |
2.11mm, 2.5mm |
| 4" x 4" |
100mm x 100mm |
2.0mm, 2.5mm |
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
Features of Stainless Steel Welded Mesh
- Excellent rust resistance
- Uniform mesh
- High strength
- Long lasting
- Bright surface
- Versatile
Application of Stainless Steel Weld Mesh
- Road fencing & household defending fencing
- Reinforcement for plaster of concrete
- Machine protection
- Architecture Grills
- Detention & Security
- Racks & basket
- Indoor & outdoor decoration
- Test sieve cloth
- Poultry Cultivation
- Zoo animal cages
Characteristics:
Stainless Steel Welded Mesh Panels offer excellent characteristics such as corrosion resistance, oxidation resistance, acid resistance, alkali resistance, aging resistance, sunshine resistance and weather resistance. Besides this kind of product has flat even surface and strong structure, therefore this product has a long service life. Good material life of up to several decades.
The most popular products and specifications
- 4' × 8' panels in stainless steel with 4" opening and 4.0 mm wire diameter.
- 4" × 4" openings mesh panel. Ideally 3' × 16' or similar that can be cut down to size.
- Stainless steel mesh 50 mm × 50 mm, wire diameter 4 mm.
- 304 stainless steel welded mesh panel with 2" × 2" mesh size that is 5 ft. by 10 ft.
- Stainless steel panels, approx 72 × 60, 1/2 ' squares for building an aviary.
- Stainless steel 4" × 4" wire panel. 4 or 6 gauge 10' long by 30" tall or 5' tall.
- Stainless steel welded mesh panel (4 ft. × 8 ft. and 5 ft. × 10 ft.) from 16 or 14 gauge wire 1 × 1/2" for outdoor aviary.
- 51" × 43" × 1-1/2" sq. × 4 mm thick stainless steel weld mesh.
- Stainless steel wire mesh black coated finish 12 mm × 12 mm square mesh.
- Stainless steel wire mesh insect screen 4 mm × 4 mm square black coated.
- 304 Stainless steel and 316 Stainless steel 10' by 10' sections with 2" × 2" openings with the 2 mm diameter used in light weight application.
- 4 ft. long × 3 ft. wide of the 1/2" × 1/2" stainless steel 304 mesh piece, bordering these pieces with 2" × 2" ninety degree angle 304 stainless steel.
- 10 gauge and 8 gauge 2" × 2" stainless steel heavy duty welded mesh guarding bar for bridge building.
- Stainless steel welded mesh panel, 1" × 1", 1-1/2" × 1-1/2", 2" × 2" mesh, 3 mm, 4 mm, 5 mm wire diameter.
- Stainless steel wire welded fencing panels for build a fence around organic garden. It is sturdy (chicken wire is too flimsy), anti-rust, and non-toxic to the soil and plants.
- Stainless steel mesh 25 mm × 25 mm mesh for seagull defence, as barriers against seagulls nesting on roof and chimney.

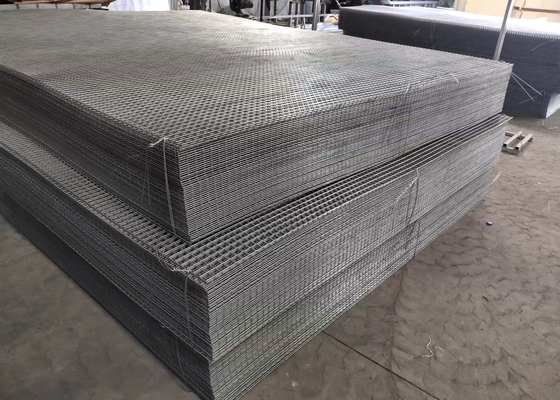

welded wire mesh panels
welded wire mesh panels
welded wire mesh panels

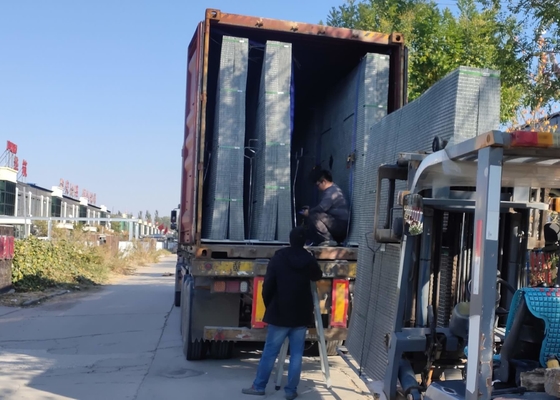

welded wire mesh loading
