Product Details:
Payment & Shipping Terms:
|
| Material: | Mild Steel | Gauge: | 1.2mm |
|---|---|---|---|
| Barbe Distance: | 13cm | Weight Per Roll: | 20kg Per Coil |
| Length Per Roll: | 500m | Name: | 10kgs 15kgs 17kgs 20kgs Per Roll 9 Gauge Military Barbed Wire Pvc Coated |
| Highlight: | Galvanized Double Twist Barbed Wire,20kg/Coil Double Twist Barbed Wire |
||

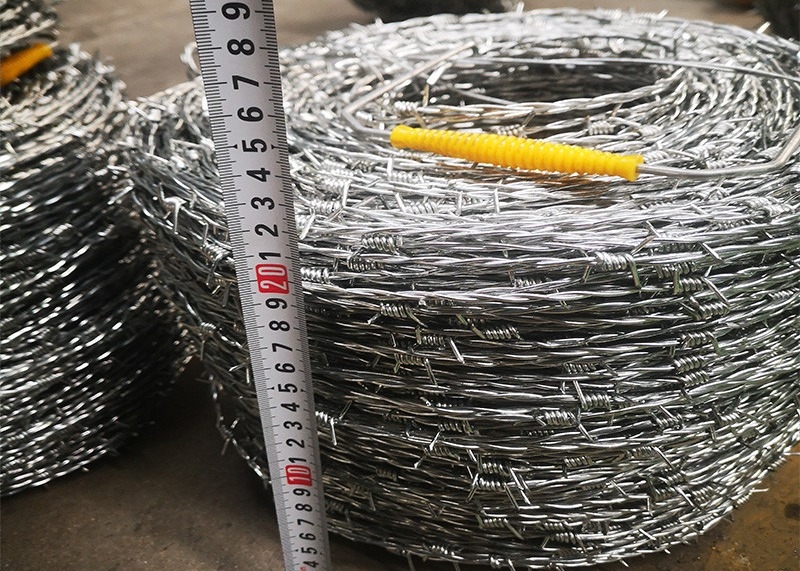

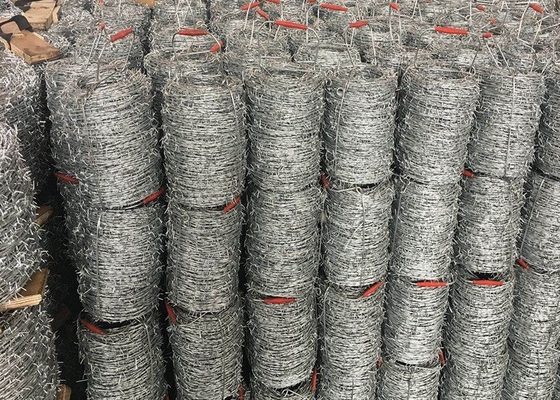

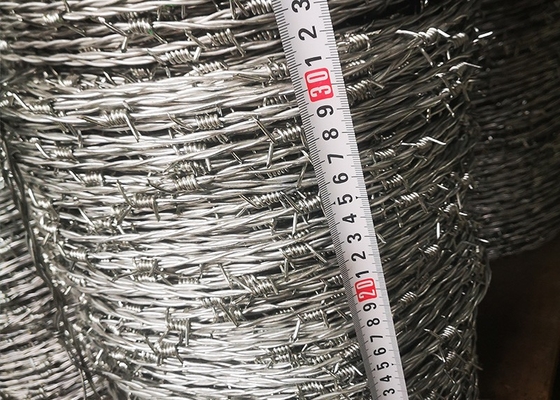

Cheap Galvanized Double Twist Barbed Wire Price Per Roll For Grass Boundary
Barbed wire fence design offers a great protection against corrosion and oxidation caused by the atmosphere. Hot-dip galvanizing is stronger than electric galvanizing.Its high resistance allows greater spacing between the fencing posts. It used for grass boundary, railway, highway isolation protection.
Material: galvanized (cold/hot) iron wire, stainless steel wire, PVC coated wire or metal sheet.
Barb Spacing: 76mm-102mm
Features: fast, pleasant in appearance, erosion and oxidation resistant.
Customer request acceptable.
Barbed wire weave types:
1) single strand barbed wire,
2) double-strand reverse twisted barbed wire;
3) double-strand common twisted barbed wire
Different colors :
Color Available: white, green, blue, yellow, gray, etc.
Common Gauge of Strand and Barb:
1.8X1.8mm / 2.0X2.0mm / 2.2X2.0mm / 2.2X2.2mm / 2.5X2.0mm / 2.5X2.2mm / 2.6X2.2mm / 2.7X2.2mm / 2.8X2.2mm /
3.0X2.0mm.
Barb Spacing: 3''-6'.
Barbed Wire Roll Length:200m/250m/400m/500m/600m.
Characteristic: firm and beautiful.
Barbed Wire Uses:
Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. barbed wire is suitable for industry, agriculture,
animal husbandry, dwelling house, plantation or fencing.
It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection.
Advantages: Because of its convenient delivery, easy installment and unique modal, enable it can bring wonderful protective effects.
Barbed wire fence design specification
| Type | Wire Gauge(SWG) | Barb Distance(cm) | Barb Length(cm) | |||
| Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire |
10#×12# | 7.5-15 | 1.5-3 | |||
| 12#×12# | ||||||
| 12#×14# | ||||||
| 14#×14# | ||||||
| 14#×16# | ||||||
| 16#×16# | ||||||
| 16#×18# | ||||||
| PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 | ||
| 1.0mm-3.5mm | 1.4mm-4.0mm | |||||
| BWG11#-20# | BWG8#-17# | |||||
| SWG11#-20# | SWG8#-17# | |||||
|
PVC PE coating thickness:0.4mm-0.6mm; Different colors or length are available according to customer's request. |
||||||
Main Features.
1) Sharp edge frightens intruders and thieves.
2) High stability, rigidity, and tensile strength to prevent cutting or destroying.
3) Anti-acid and alkali.
4) Harsh environment resistance.
5) Corrosion and rust resistance.
6) Available to combine with other fences for high level security barrier.
7) Convenient installation and uninstallation.
8) Easy to maintain.
9) Durable and long service life.
Barbed wire fence design application
Galvanized barbed iron wire or PVC coated barbed wire are suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
barb wire used as barrier for lawn, railways, expressways, etc
