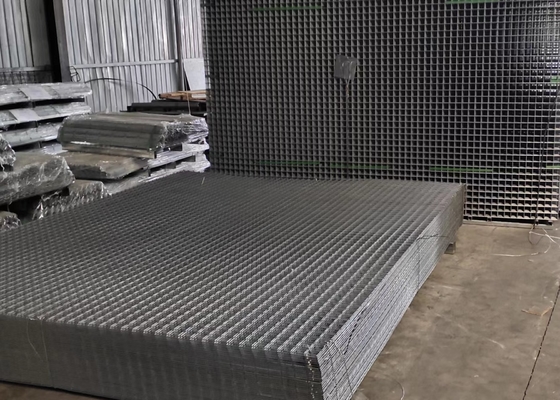

Hot Dipped Galvanized Welded Wire Mesh Panel Regular Size 2 X 2 Inch

Hot Dipped Galvanized Welded Wire Mesh Panel Regular Size 2 X 2 Inch
Hot Dipped Galvanized Welded Wire Mesh Panel Regular Size 2 X 2 Inch

Large Image :  Hot Dipped Galvanized Welded Wire Mesh Panel Regular Size 2 X 2 Inch

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: welded mesh panel
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000pieces
Detailed Product Description
Type: Welded Wire Mesh Material: Black Wire,
Wire Diameter: 4-12mm Surface Treatment: Hot Dipped Galvanized Or Powder Coated
Feature: Good Integrity And A Competitively Long Service Life Size: Customized
High Light:

2 X 2 Inch Welded Wire Mesh Panel

,

Regular Galvanized Welded Wire Mesh Panels

Regular Size 2 X 2 Inch Hot Dipped Galvanized Welded Wire Mesh Panel

Welded wire mesh is a grid metal formed by welding a series of parallel transverse and longitudinal steel wires. The grid is square or rectangular, and the mesh with 1/4 – 1 inch opening is also known as hardware cloth. The material used to manufacture welded mesh is usually low-carbon steel wire, because welding steel wires with higher carbon content is likely to cause stress corrosion cracking (SCC) in the solder joints. According to the application or customer requirements, the delivery conditions of the product include panels/sheets or rolls.
Along with woven wire mesh, welded wire mesh is one of the two main types of wire cloth products. Welded wire mesh is typically the less expensive of the two materials. It consists of a grid pattern featuring a series of parallel longitudinal wires that are welded together at the point where the wires intersect. The strength and thickness of the weld are determined by factors such as weld pressure, time and temperature. Welded wire mesh can also be bent or cut to form a variety of shapes without causing the wires to come apart.

stainless steel welded wire mesh sheets
Material: Low carbon steel wire, stainless steel wire and rebar wire.
Variety: galvanized, PVC etc.
Characteristics: even surface, firm structure, precise opening etc, it has the good property of corrosion-resisting and oxidation-Resisting.
Usage: It is widely used on building, food, agriculture etc. For example, it is useded on reinforced concrete construction, floor slabs reinforcement, brick wall reinforcement, floor warming etc.


Surface Treatment of Weld Mesh Panels and Rolls
The surface treatment of welded mesh panels and rolls generally has the following types:

  • Galvanized: only used for carbon steel to prevent rust or corrosion of materials and increase service life.

  • PVC coating: used for carbon steel to prevent corrosion or rusting of materials and increase aesthetics.

  • Copper, brass or titanium plating: increase corrosion resistance or decoration.



Mesh
Wire Diam
In Inch
In mm
Wire Gauge
In mm
1" × 1"
25mm × 25mm
14# - 11#
2.0mm - 3mm
2" × 1"
50mm × 25mm
14# - 8#
2.0mm - 4mm
2" × 2 "
50mm × 50mm
14# - 8#
2.0mm - 4mm
3" × 2 "
75mm × 50mm
14# - 6#
2.0mm - 5mm
3" × 3 "
75mm × 75mm
14# - 6#
2.0mm - 5mm
4" × 2 "
100mm × 50mm
14# - 4#
2.0mm - 6mm
4" × 4 "
100mm × 100mm
14# - 4#
2.0mm - 6mm
5" × 5 "
125mm × 125mm
14# - 4#
2.0mm - 6mm
6" × 6 "
150mm × 150mm
14# - 4#
2.0mm - 6mm
Note: Special specifications can be customized.



Width of Welded Mesh Panel
1m-2.5m
Technical Note:Sizes can be customized.
Length of Welded Mesh Panel
1m-6m
Opening of Wire Mesh
2.54cm-30cm
Wire Diameter
2.5mm-10mm
Welded Wire Sheet Width0.5m -1.5m2 foot -6 footTechnical Note: Sizes can be customized.
Length of Welded Wire Sheet0.5m –4m2 foot -6 foot
Opening of Welded Wire Mesh2.54cm-20cm1 inch –8 inch
Wire DiameterBWG 18- BWG101.6mm- 3.0mm

Welded Wire Mesh Benefits

Welded wire mesh’s mat-like design and construction enables it to remain firmly in place even when holding heavy materials such as concrete. It works well in bending applications, as the mat is bent as a single unit instead of a series of pieces. This also minimizes the risk of misplacement. Welded wire mesh offers a cost-effective alternative, as it requires less reinforcement than when using steel bars.
Welded wire cloth is also easier to work with than many other types of metal materials. Welded wire fabric is quick and simple to install and is not easily displaced by workers laying concrete. The ease of use can reduce completion time and help projects remain on budget. Faster construction time also minimizes the exposure of building components to the elements, resulting in higher-quality work.
You’ll be able to complete more work with less field labor, which frees up manpower, material, equipment, and resources for other areas of your project.

Applications
Welded wire mesh has a wide range of uses in industrial and commercial fields, such as

  • Construction industry: concrete wire mesh, plaster mesh, wire mesh fences in playgrounds, parks, schools, airports, stair railings, etc.

  • Food industry: Stainless steel oven racks, fruit and vegetable baskets, supermarket shopping baskets, storage baskets, stainless steel frying baskets, barbecue grill racks, etc.

  • Medical industry: medical sterilization basket.

  • Livestock industry: poultry fence, field fence, battery chicken cage, etc.

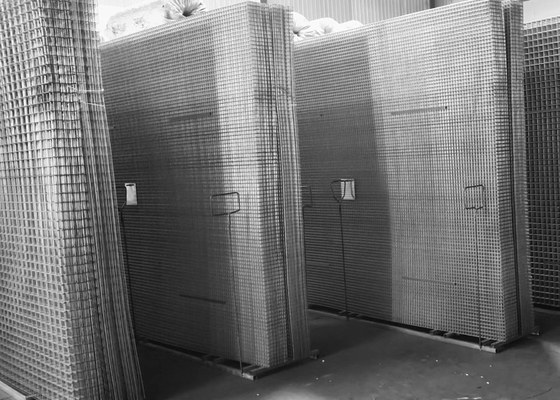

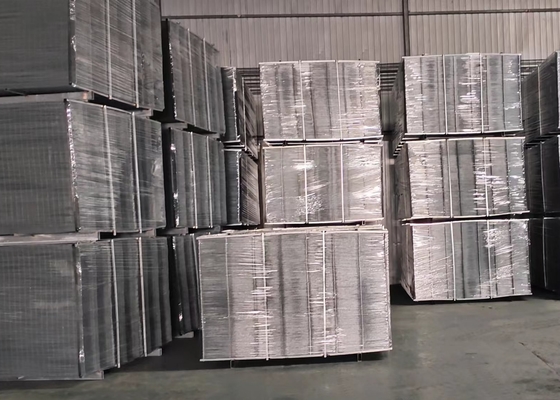

welded wire mesh panels

welded wire mesh panels

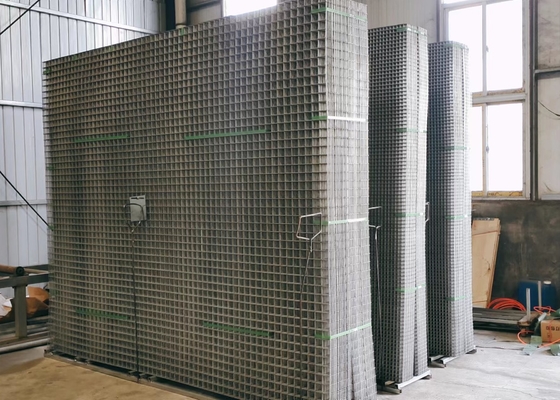

welded mesh panels

welded mesh panels
