Customizable Galvanised 4x4 Welded Wire Mesh For Concrete Durable

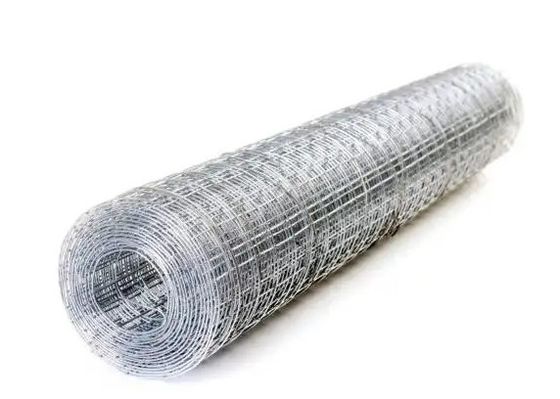

Large Image : Customizable Galvanised 4x4 Welded Wire Mesh For Concrete Durable

Product Details:

Place of Origin:	CHINA HEBEI
Brand Name:	QIJIE
Model Number:	QIJIE01

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	500
Packaging Details:	button
Delivery Time:	10 days
Payment Terms:	L/C, T/T
Supply Ability:	10000M/days

Contact Now

Detailed Product Description

Hole Shape:	Square	Wire Gauge:	0.5mm-14mm,2.0-4.0mm,0.3-2.5mm,0.3mm-8.0mm
Application:	Construction Wire Mesh,Fence Mesh,building,bridge,garden Fence	Material:	Low-Carbon Iron Wire,Galvanized Iron Wire,Plastic Coated Iron Wire
Type:	Welded Mesh	Aperture:	1/2",1/4"-6",1" X 2" Ect,3/4" X 3/4" 3/8"x3/8" 1" X 1'',5/8"
Surface Treatment:	Hot Dipped Galvanized,pvc Coated	Color:	Silver,Green,Grey,or As Request
Name:	Welded Wire Mesh	Hole Size:	5/8'' As Customer Request
Wire Diameter:	0.5-1mm,1.0mm~4.50mm	Mesh Size:	Etc,50x100mm,1x1inch,3/4'',1/2''
Highlight:	Galvanised 4x4 Welded Wire Mesh , Customizable 4x4 Welded Wire Mesh , Customizable Galvanised Welded Wire Mesh

Product Description

WELDED WIRE MESH
Hole Size		Wire Diameter		Width&Length
In inch	In MM	In BWG	In MM
1/2"	12.7mm	BWG16- BWG28	1.65mm-0.356mm	Width:0.5m-2.0m Length:25m,30m Other Sizes can be made as request
3/4"	19.05mm	BWG16- BWG27	1.65mm-0.406mm
1"	25.4mm	BWG14- BWG20	2.1mm-0.88mm
1"×2"	25.4×50.8mm	BWG14- BWG19	2.1mm-1.06mm
2"	50.8mm	BWG12- BWG18	2.76mm-1.24mm
2"×4"	50.8×101.6mm	BWG10- BWG10	3.4mm-1.24mm
1/4"	6.35mm	BWG19- BWG24	1.06mm-0.56mm
3/8"	9.52mm	BWG18- BWG27	1.24mm-0.406mm
5/8"	16mm	BWG18- BWG27	1.24mm-0.406mm
New mesh sizes: 1"×1/2",30×30mm,60×60mm

Specification
Opening		Wire Diameter
Inch	metric Unit(mm)	Wire Diameter
1"x1"	25mmx25mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x2"	50mmx50mm	2.5mm,2.0mm,1.8mm,1.6mm
2"x3"	50mmx70mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
2"x4"	50mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
2"x6"	50mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
2"x8"	50mmx200mm	6.0mm,5.0mm,4.0mm,3.0mm
3"x3"	75mmx75mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
3"x4"	75mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
4"x4"	100mmx100mm	6.0mm,5.0mm,4.0mm,3.0mm
5"x5"	125mmx125mm	6.0mm,5.0mm,4.0mm,3.0mm
6"x6"	150mmx150mm	6.0mm,5.0mm,4.0mm,3.0mm
Technical Note:
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m 2.Special size available at request

Specification

item	value
Place of Origin	CHINA HEBEI
Material	Black Wire Mesh
Type	Welded Mesh
Application	Protecting Mesh
Weave Style	Plain Weave
Technique	woven
Model Number	QIJIE
Brand Name	QIJIE
Processing Service	Welding
Delivery Time	8-14 days
Product name	welded wire mesh
Surface treatment	Hot Dipped Galvanized
Color	Customized
Packing	Pallet
PAYMENT TERM	T/T

Product Show

Welded wire mesh is a type of wire mesh that is created by welding wires together at each intersection point, resulting in a grid
pattern of uniform squares or rectangles. This type of wire mesh is widely used in various industries, including construction,
agriculture, and industrial and residential sectors.

One of the key benefits of welded wire mesh is its strength and durability. The welding process creates a strong bond between the
wires, making it more resistant to wear and tear than other types of wire mesh. Additionally, it is flexible and can be cut, bent,
and shaped to fit specific requirements.

Welded wire mesh is available in various materials, such as galvanized steel, stainless steel, and PVC-coated steel. Each material
has its unique properties and benefits, depending on the application.
At our company, we specialize in producing high-quality welded wire mesh products. Our products are manufactured using the latest
technology and equipment to ensure consistent quality and performance. We offer a range of wire thicknesses, mesh sizes, and
materials to meet our customers' specific needs. Our team of experienced professionals is committed to providing exceptional
customer service and technical support to help our customers achieve their goals.
