Customization Concrete Reinforced Welded Wire Mesh 0.5m To 2.2m Width

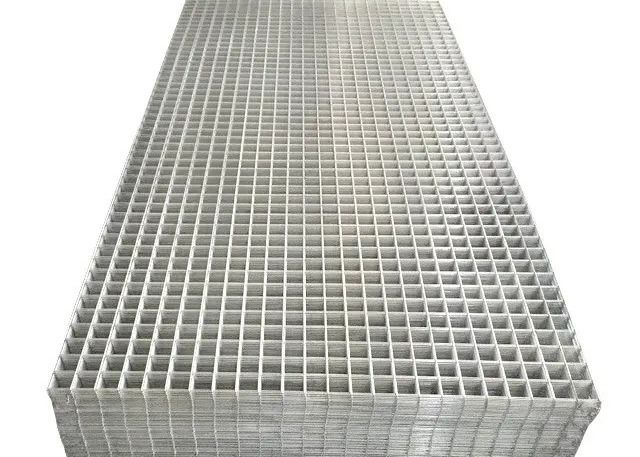

Large Image : Customization Concrete Reinforced Welded Wire Mesh 0.5m To 2.2m Width

Product Details:

Place of Origin:	CHINA HEBEI
Brand Name:	QIJIE
Model Number:	QIJIE01

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	USD 100-200
Delivery Time:	10 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000PCS/DAYS

Contact Now

Detailed Product Description

Hole Shape:	Square	Wire Gauge:	2.0-4.0mm
Application:	Construction Wire Mesh	Material:	Low-Carbon Iron Wire,Galvanized Iron Wire
Type:	Welded Mesh	Aperture:	1/2"
Surface Treatment:	Hot Dipped Galvanized	Width:	0.5-2m,0.5-1.8m,300mm-2500mm,0.5m To 2.2m,1.2m
Length:	5m	Usage:	Building,construction
Packing:	Pallet	Product Name:	Welded Wire Mesh,Galvanized / PVC Coated Welded Wire Mesh
Color:	Silver
Highlight:	Reinforced Welded Wire Mesh 2.2m , Concrete Welded Wire Mesh 0.5m , customization Reinforced Welded Wire Mesh

Concrete Welded Wire Mesh Reinforcing Concrete Panel

The welded wire mesh is welded by excellent low carbon steel wires and
Passivated and plasticized through cold plating (electroplating), hot dipping
And PVC plastic coating. With flat surface, even mesh count, firm welding
Spots and stable structure, it features its strong completeness, partial good
Machining performance, stability, excellent corrosion resistance and rush
Prevention.

Opening (inch)	Opening (mm)	Wire Diameter	Wire Diameter	Panel Length	Panel Width
1"x1"	25mmx25mm	14#-11#	2.0mm-3mm	1.0-5.0m	0.5-1.8m
2"x1"	50mmx25mm	14#-8#	2.0mm-4mm
2"x2"	50mmx50mm	14#-8#	2.0mm-4mm
3"x2"	75mmx50mm	14#-6#	2.0mm-5mm
3"x3"	75mmx75mm	14#-6#	2.0mm-5mm
4"x2"	100mmx50mm	14#-4#	2.0mm-6mm
4"x4"	100mmx100mm	14#-4#	2.0mm-6mm
5"x5"	125mmx125mm	14#-4#	2.0mm-6mm
6"x6"	150mmx150mm	14#-4#	2.0mm-6mm

Customization Concrete Reinforced Welded Wire Mesh 0.5m To 2.2m Width 0

Galvanized welded mesh panel
Hole size		Wire diameter	Panel sizes
In Inch	In mm	In mm	Common sizes : 3' x 6' , 4' x 8' , 5' x 10' 1 x 2m ,2 x 2.9m , 2 x 4m Other sizes can be made as request .
1/2'' x 1/2''	12.7 x 12.7mm	1.0mm-2.0mm
1'' x 1''	25.4 x 25.4mm	1.5mm-3.5mm
1'' x 2''	25.4 x 50.8mm	2.0mm-5.0mm
5/4'' x 5/4''	31.8 x 31.8mm	2.0mm-4.0mm
3/2'' x 3/2''	38.1 x 38.1mm	2.0mm-5.0mm
2'' x 2''	50.8 x 50.8mm	2.0mm-6.0mm
2'' x 3''	50.8 x 76.2mm	2.0mm-6.0mm
3'' x 3''	76.2 x 76.2mm	3.0mm-7.0mm
4'' x 4''	101.6 x 101.6mm	3.0mm-8.0mm
5'' x 5''	127 x 127mm	4.0mm-9.0mm
6'' x 6''	152.4 x 152.4mm	4.0mm-10.0mm

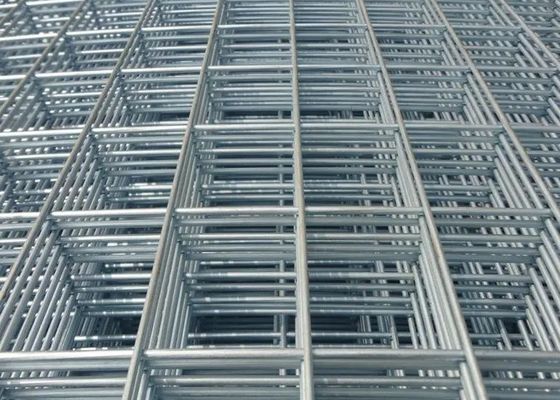

Customization Concrete Reinforced Welded Wire Mesh 0.5m To 2.2m Width 1
