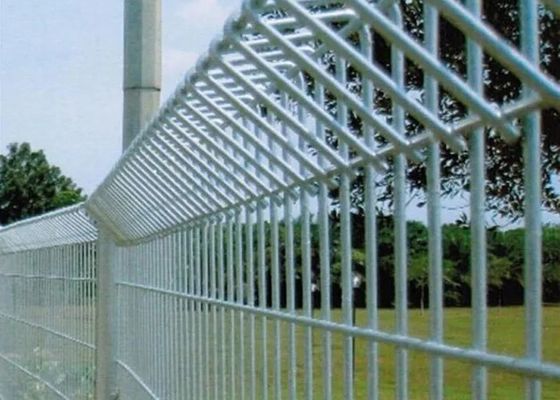

Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated

Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated
Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated

Large Image :  Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated

Product Details:
Place of Origin: CHINA HEBEI
Brand Name: QIJIE
Model Number: QIJIE01
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 500
Packaging Details: button
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000
Detailed Product Description
Type: Fencing Feature: Easily Assembled
Metal Type: Iron,Steel,Aluminum,Iron Or Galvanized Frame Finishing: PVC Coated,Powder Coated
Frame Material: Metal Color: White,black,Green,blue
Surface Treatment: Galvanized+PVC Coated,PVC Coated,Hot Dipped Galvanized Application: Fence Mesh,Garden
Mesh Size: 50x100mm,200mm*50mm / 150mm*50mm/100mm*50mm,50x200 Mm Usage: Protection,Garden Decoration,building,Garden Fence/highway/airport
Width: 1500mm ~ 3000mm Height: 1030mm ~ 2230mm,1.2 M,1030mm / 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm,1.8 M,2.0 M
Wire Diameter: 3-8mm,4.5mm,2.5-6mm,5.0mm Wire Gauge: 2.5-6mm,1.0mm-3.0mm,2.0-4.0mm
High Light:

6ft welded wire mesh fence

,

BRC welded wire mesh fence

,

Roll top fence Panels 50x100mm

Factory Supply Decorative Roll Top 6ft Fence Powder Coated BRC Welded Wire Mesh Fence
Roll top fence
Roll top fence, using a friendly round top and "trigonal" edges bottom to form a rigid fence. The surface treatment of Shengcheng roll top fence and double loop fencing is hot dipped galvanization or electric galvanization + polyester powder. The fittings of roll top fence and double loop fencing are round post or square post. We recommend these fence for park, school, playground, stadium etc.


Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated 0

Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated 1


BRC fence specification:

Height(mm)
1000, 1200, 1500, 1800, 2000, 2500
Post distance(mm)
2500, 3000
Wire diameter(mm)
4.0, 5.0, 6.0
Mesh size(mm)
50 x 150; 50 x 200; 75 x 150
Post(mm)
Round: 48, 60; Square: 50 x 50, 60 x 60, 80 x 80
Material
low carbon steel
Surface treatment
hot dipped galvanized; polyester powder coating; PVC coated
Color
RAL Green or Black, or as your requirement.
Other specification are available on request.

Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated 2

BRC fencing panel:
The panels consist of a unique and attractive, closed beam section located along the top and bottom edge of the panel. It is user friendly with no sharp or raw edges. These type of fencing panels are ideal where safety is a consideration.


Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated 3

Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated 4


BRC fence feature:
• Aesthetic appearance.
• High rigidity.
• Excellent through vision.
• Wide range of color options.
• Available as a complete system

Application



Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated 5

Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated 6

Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated 7

Specification

RBC fence Installation:
Roll top fence is also kind of easy installation production. Need to follow the normal installation process of metal fence products. We will give an example of the BRC fence installation based on 2.5m width.

1.Measure the roll top fence width of per set, calculate correctly if need to install all post together. Setting up the post into the holes on the ground every 2.5 linear meter. If the ground is concrete, we need to set up the post flange plate with M10 (min) anchor bolts into the concrete ground. During measure process, please make sure the line is straight or it is followed your plan.We can not change it after setting up the post.
2.Take the roll top fence panel out and stand up close to the fence panel. Need to make sure there is little space between the BRC fence panel and post. It should be touch or has very small space which will not affect setting up the V clips.
3.Setting up the V clips by vertical distance according to the punched holes on the post. Normally it is about 450mm or 600mm for per V clip. If the bolts are self drilling bolts, then we do not need any holes on post, just drill the bolts into the post wall accordingly.
4.Installing post rain cap on the top of the post in the end. If the height of roll top fence is too difficult for installing post cap, please set up the post cap first before set up the post. If the post cap is metal cap and already been welded on the post, then do not need to do any work on the post cap installation.


Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated 8


Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated 9

Packing & Delivery


Decorative Roll Top BRC Welded Wire Mesh Fence 6ft Powder Coated 10

1. in bulk 2. plastic film or woven on both of the sides 3. on pallet 4. customized
