Knitted Copper Wire Mesh For Industrial Commercial And Agricultural Use

Knitted Copper Wire Mesh For Industrial Commercial And Agricultural Use
Knitted Copper Wire Mesh For Industrial Commercial And Agricultural Use Knitted Copper Wire Mesh For Industrial Commercial And Agricultural Use

Large Image :  Knitted Copper Wire Mesh For Industrial Commercial And Agricultural Use

Product Details:
Place of Origin: China
Brand Name: Qijie
Certification: knitted wire mesh
Model Number: knitted wire mesh
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Packaging Details: paper carton
Delivery Time: 15-18days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100kg
Detailed Product Description
Material: Copper Wire Wire Diameter: 0.07-0.55mm
Openning: 2x3mm, 4x5mm,12x6mm Or Can Be Fine-adjust As Customer Request. Surface: Can Be Flat Or Corrugated
High Light:

Industrial Knitted Copper Wire Mesh

,

2x3mm Knitted Copper Wire Mesh

,

Agricultural Use Knitted Copper Mesh

Knitted Copper Wire Mesh For Industrial, Commercial And Agricultrural Use





Description

Copper wire cloth finds wide usage in traveling water screens, radio frequency interference shielding, sugar processing and marine applications.



Application

Used in the manufacture of wire mesh defoaming machine, wire mesh demister, corrosion resistant filter pad.
Used in the manufacture of automobiles, tractors, etc.

The filter on the air compressor.
Used in the manufacture of gas liquid separator, steam separator.



Features

Copper Knitted Wire Mesh the specific absorption of evaporation, and high temperatures, strong corrosion resistance, the elimination of steam in the attach the gas or liquid droplets.

copper wire mesh



Specification

Wire diameter 0.10mm-0.55mm .Most common:0.20mm-0.25mm.The wire could be flat silk or round silk
Mesh size 4mm×3mm,5mm×6mm,2mmx4mm,4mmx5mm etc
Width 40mm,80mm,100mm,150mm,200mm,300mm,400mm,500mm,600mm,800mm,1000mm,1200mm,1400mm,1500mm.
Length 10m,20m,50m,100m,200m





Common Specifications of Copper Knitted Mesh

Type

Wire Diameter

(mm)

Width

(mm)

Number of Stitches/cm

on Length

Number of Stitches/cm

Across Lay Flat

Fine Mesh

0.08–0.18

6–30

3.5

4.4

Medium-fine Mesh

0.16

40–600

2.4

3.5

Standard Mesh

0.18–0.35

30–1300

1.6

1.9

Coarse Mesh

0.25–0.40

30–1300

1.6

0.74

Super Coarse Mesh

0.4–0.5

100–350

0.5

0.5



Item Knitted wire mesh
Wire Materials Stainless steel, copper, titanium, nickel, monel, inconel, 430,etc
Process Crochet weaving
Length 10-200m
Width 40-1400mm
Mesh Dize 2x3mm, 4x5mm,12x6mm or can be fine-adjust as customer request.
Wire Diameter 0.07-0.55mm
Surface Can be flat or corrugated



Cleaning Materials

Knitted copper mesh can also be used to clean plastic/rubber/fiber extrusion equipment, molds/dies, screws and similar machinery, while the machine or molds are still hot, fast and efficient. Therefore, our knitted copper mesh are very economical where products/machine parts purity/clearance requires frequent maintenance.

Multi-strand round wire/ginning type/ Knitted copper mesh for cleaning of our screw and barrel of melt flow indexer and rheometer.

Knitted copper mesh can be made into copper scrubbers for industrial cleaning.



Advantages of knitted copper mesh

  • 100% copper – never rust.
  • Safe, soft copper won't scratch or mar.
  • Easy cut and operate in craftwork designs.
  • Tough interlocking loops won't pull apart
  • Non-flammable.
  • Its special interlocking loop which acts as a small spring. When subjective to tensile or compressive stresses, knitted wire mesh will not distort beyond its yield point. And the knitted mesh will resume its original shape when stress is moved. In addition, copper mesh will not be troubled by rust and corrosion problems. For this reason, copper wire mesh is often used in outdoor applications such as gardens and roofs.

Available in 20', 30', 60' and 100' lengths and 12", 18" and 24" heights.

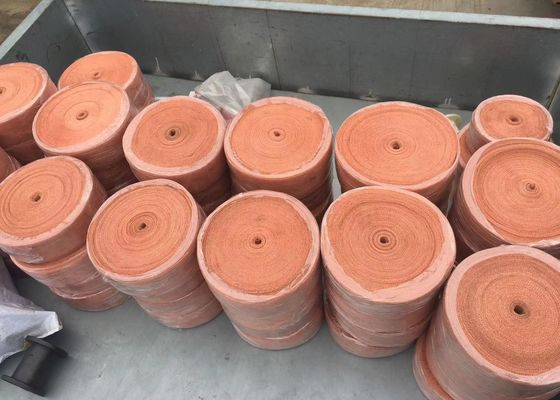

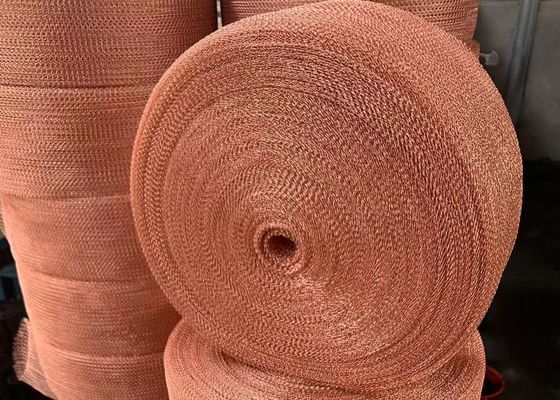

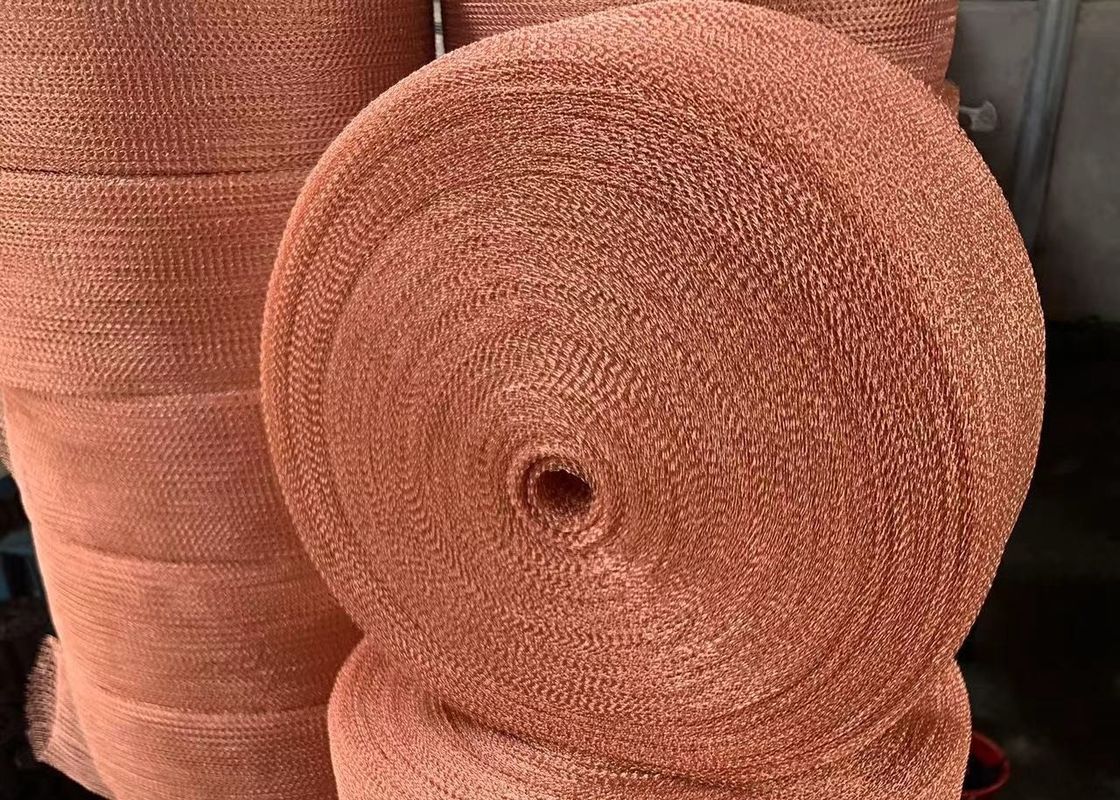

copper knitted wire mesh



copper knitted wire mesh
