Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Wire | Length: | 30meters |
|---|---|---|---|
| Woven Type: | Plain Weave | Width: | 156” |
| Temperatures: | Up To 1400°F | Speeds: | 150fpm |
| High Light: | stainless 304 conveyor belt wire mesh,spiral conveyor belt wire mesh,stainless 304 wire mesh conveyor belt |
||

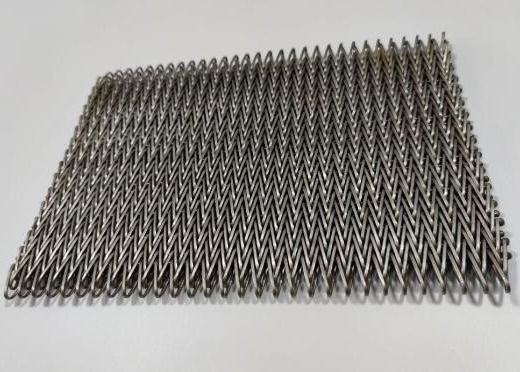

Flat Flex Spiral Wire Stainless Steel 304 Chain Link Converyor Belt Mesh
Chain link conveyor belt / Balanced Spiral belt is an extremely popular mesh design, found in almost every manufacturing industry with a wide ranging number of possible applications.

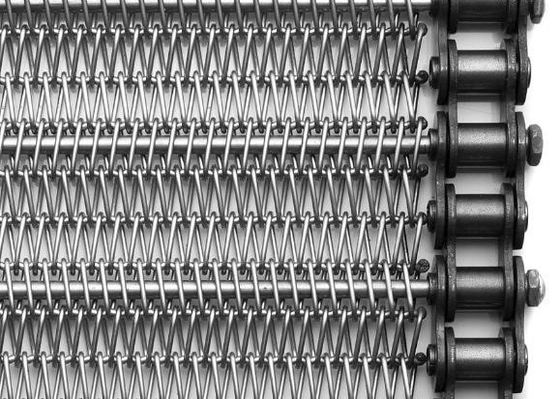

Chain link conveyor belt / Spiral food conveyor belt is made of the chain and the transverse support rod on both sides of the general conveyor belt, the sprocket is driven, and the net belt is fixed with wide band without deformation
Benefits of Balanced Spiral belt include straight-running operation, an excellent strength to weight ratio and an extremely wide variety of mesh specifications to suit each individual application.
1. It can be the delivery of granular materials, can also be carried into the delivery of items.
2. Suitable for high density transportation in small.
3. Smooth motion, strong
4. Convenient installation and replacement,high cost,long service life.
| Production Name | Chain link conveyor belt, Spiral conveyor belt, Spiral Grid Link Conveyor Belts, Flat Spiral Conveyor Belt, Cam Grid conveyor belt, Balanced Spiral belt, Spiral food conveyor belt, chain conveyor belt mesh |
| Material | 304 316 316L 430 310S stainless steel wire, galvanized steel wire, black iron wire |
| Spiral wire diameter (D) | 1mm-3mm. customiz is workable. |
| Spiral pictch (A) | Spiral wire center to wire center. more than 3mm |
| Rod wire diameter (C) | same as spiral wire, or bigger than spiral wire |
| Rod wire pitch (B) | we can do it as your requirement |
| Sopport rod diameter | As your requirement |
| Chain/ pin pitch | 37.5mm, 38.1mm. we can do it according your requirement. |
| Support rod distance | 190.5mm. or as your requirement |
| Overall width | Include chain width; or not include chain width. please kindly note it |
Length |
As your requirement |
a) Small open area
The compound weave conveyor belt has little open area, which is suitable toconveyor the small items.
b) High tensile strength
The compound weave conveyor belt has multiple spirals and cross rods on eachpitch, so it can supply higher tensile strength than other types of conveyorbelt.
c) High temperature resistance
The compound weave conveyor belt is made of high quality materials, includingstainless steel and nickel alloy steel, which have excellent temperatureresistance performance.
d) Durable and long service life
The unique structure and high quality material can ensure the long service lifeof compound conveyor belt.
e) Baffles
Different types of baffles can be added at the both side and center of conveyorbelt for sorting and conveying products.
Applications of compound weave conveyor belt:
The compound weave conveyor belt with little open area is popular in the food,electric, mechanical and other industries. It can be used to convey thefollowing products:
Usage:
It is made of SUS314 or SUS310S, able to stand high temperature more than 1150 degrees centigrade. It is antioxidative. It is compound balanced type. It has good tensile strength. The edge is folded or added back plate to avoid parts leakage. The belt conveys the workpiece to a temperature control heating area, and then it fall into the oil tank. The belt hosit takes out small or middle machine parts in bulk automatically, such as standard parts, bearing, drive chain, tapping screw, textile hard ware, hand tool, spring, spring washer and automobile accessories, etc.
Advantages:
1,It is made of SUS314 able to stand high temperature more than 1150 degrees centigrade.
2,Stable structure for belt straight running.
3,It has different weaving types according to different brazing parts.
4,It has good tensile strength and is difficult to be deformed.
5,It has high-tensile strength and heavy-load capacity.
1.>Quick response for price inquire and solution!
2.>More than 40 years wire mesh production experience history!
3.>6 English products engineers which works in ShuoLong more than 5 years!
4.We can provide professional wire mesh solutions for customers!
5.>More than 10 people's technology team provide technical support and production guarantee!
6.>Stroctly QC system TO keep all producrs of good quality!
7.>More than 300 Chinese and foreign peojects operation experience!
8.>Our object is that help you to save money more than 50% with our high cost performance wire mesh!
