| Material: | Stainless Steel Wire | Application: | Protecting Mesh Fencing |
|---|---|---|---|
| Technique: | Perforated Woven | Color: | Black White Yellow |
| Surface Treatment: | Hot Dipped Galvanized | Advantage: | Rich Experience Good Worker |
| High Light: | 6 ft welded wire fencing panels 2x2,construction 6 ft welded wire fencing panels,construction 2x2 welded wire panels |
||
2*2 Hot DIP Galvanized Welded Wire Mesh Panel Gaw Wire Mesh Panel for Construction for Floor Heating
Welded Wire Mesh Panel is made of superior quality galvanized iron wire or stainless steel wire, then welded with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
Feature: corrosion resistance, aging resistance, sunshine resistance and weather resistance.
Forms of corrosion resistance: Electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC coating.
Usage: widely used in industry, farming, construction, transportation and mining for protection of structure, roof protection , safety segregation, keeping of poultry , like chicken cage, rabbit cage, and livestock, and decorations etc.
sizes:
| Material | Low carbon steel wire Q195, Q235, stainless steel |
| Surface | Black wire, re-drawing wire, electroc galvanized, hot dipped galvanized wire, electro galvanized after welding, hot dipped galvanized after welding, PVC coated |
| Wire Diameter | 1mm-10mm |
| Hole (mesh) | 2.5-25cm |
| Length | ≤8m |
| Width | 0.5-3m |

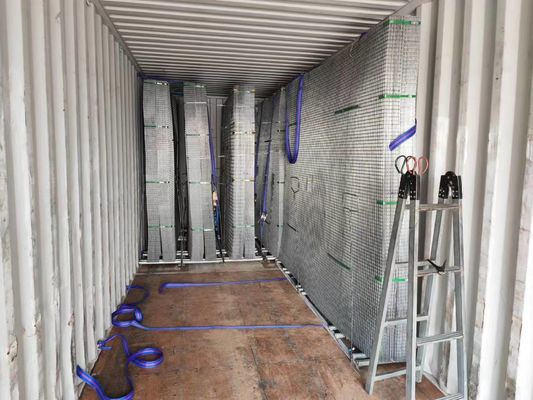

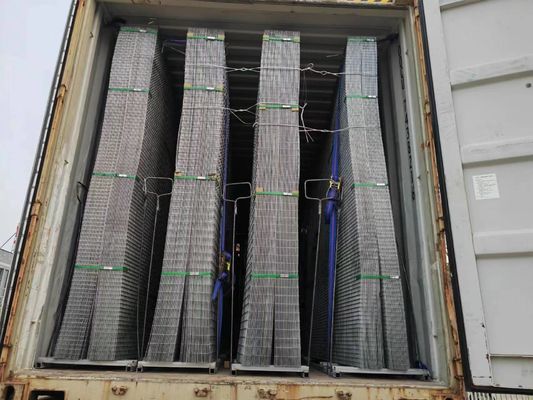

| Package | pallet or nude packing |
| Wire Diameter | Mesh | Width | |
| inch | mm | ||
| 2.0mm ~ 3.2mm | 1" | 25.40 | 0.914m ~ 1.83m |
| 2.0mm ~ 4.5mm | 2" | 50.80 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 3" | 70.20 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 4" | 101.6 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 5" | 127.0 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 6" | 152.4 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 7" | 177.8 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 8" | 203.2 | 0.914m ~ 2.75m |
| Welded wire mesh specification ( Standard length: 30m / roll , Width : 0.3m - 2.5m ) | |
| Opening in inch | Wire diameter (bwg) |
| 1/4 '' x 1/4 '' | 22 , 23, 24 |
| 3/8 '' x 3/8 '' | 19 , 20 , 21 , 22 |
| 1/2 '' x 1/2 '' | 16 , 17 , 18 , 19 ,20 , 21 , 22 , 23 |
| 5/8 '' x 5/8 '' | 18 , 19 , 20 , 21 |
| 3/4 '' x 3/4 '' | 16 , 17 , 18 , 19 , 20 , 21 |
| 1 '' x 1 '' | 16 , 17 , 18 , 19 |
| 1 '' x 1/2 '' | 16 , 17 , 18 , 19 , 20 , 21 |
| 1 '' x 1/4 '' | 14 , 15 , 16 , 18 |
| 1 '' x 2 '' | 14 , 15 , 16 |
| 2'' x 2 '' | 7, 8, 9 , 10 , 11,12 |
| 4'' x 4'' | 7, 8, 9 , 10 , 11,12 |
| 6'' x 6'' | 7, 8, 9 , 10 , 11,12 |
|
Specification of Welded Wire Mesh
|
||
|
Opening
|
Wire Diameter
BWG
|
|
|
In inch
|
In metric unit(mm)
|
|
|
1/4" x 1/4"
|
6.4 x 6.4mm
|
BWG24-22
|
|
3/8" x 3/8"
|
10.6x 10.6mm
|
BWG22-19
|
|
1/2" x 1/2"
|
12.7 x 12.7mm
|
BWG23-16
|
|
5/8" x 5/8"
|
16x 16mm
|
BWG21-18
|
|
3/4" x 3/4"
|
19.1 x 19.1mm
|
BWG21-16
|
|
1" x 1/2"
|
25.4x 12.7mm
|
BWG21-16
|
|
1-1/2" x 1-1/2"
|
38 x 38mm
|
BWG19-14
|
|
1" x 2"
|
25.4 x 50.8mm
|
BWG16-14
|
|
2" x 2"
|
50.8 x 50.8mm
|
BWG15-12
|
|
2" x 4"
|
50.8 x 101.6mm
|
BWG15-12
|
|
4" x 6"
|
101.6 x 152.4mm
|
BWG15-12
|
|
6" x 6"
|
152.4 x 152.4mm
|
BWG15-12
|
|
6" x 8"
|
152.4 x 203.2mm
|
BWG14-12
|
|
Roll Width: 0.4m to 2m; Roll Length: 5m,10m,30m,etc
|
||
|
Material: galvanized, PVC coated, stainless steel
|
||
|
Note: Special specifications can be made according to customers requires
|
||
WELDED WIRE MESH FEATURE:
* Smooth mesh surface
* Well-proportioned meshes
* Strong welded points and bright luster
* Solder joint firm
* Anti-corrosive and anti-rust.
* Strong antiseptic antioxidant
* firm structure, even if local cutting section or partial pressure also does not happen slacken off phenomenon.
