Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Wire | Application: | Protecting Mesh Fencing |
|---|---|---|---|
| Technique: | Perforated Woven | Color: | Black White Yellow |
| Surface Treatment: | Hot Dipped Galvanized | Advantage: | Rich Experience Good Worker |
| High Light: | carbon steel galvanised wire mesh panels,1x2 galvanised wire mesh panels |
||

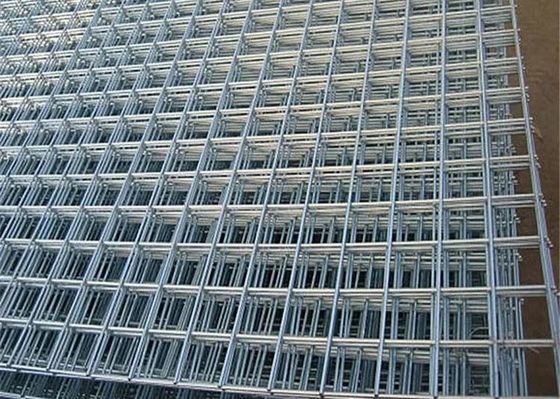

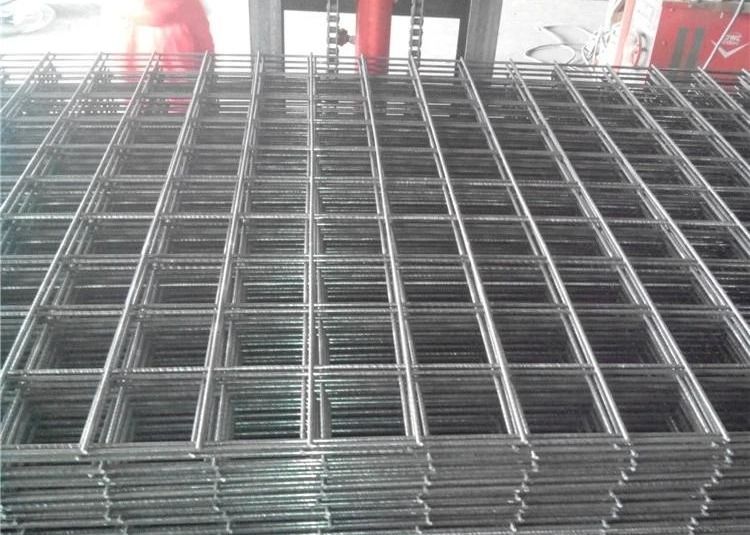

Carbon Steel Galvanized Welded Wire Mesh Panel for Fence
Welded wire mesh made of high quality low carbon steel wire.The adoption plates the zinc craft after welding,it is made from high-quality iron wire by automatic equipment.The finished welded wire mesh offer flat and uniform surface, firm structure, good integrity.The mesh does not come loose even if cut in parts or being exerted force on parts .Compared with general iron wire,the products are better in respects of anti-corrosive and anti rust.
Feature: corrosion resistance, aging resistance, sunshine resistance and weather resistance.
Forms of corrosion resistance: Electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC coating.
Usage: widely used in industry, farming, construction, transportation and mining for protection of structure, roof protection , safety segregation, keeping of poultry , like chicken cage, rabbit cage, and livestock, and decorations etc.
sizes:
| Specification | ||||
| Opening | Wire Diameter | Width 0.4-2m Length 5-50m |
electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
| Inch | Metric Unit | |||
| 1/4"x1/4" | 6.4mmx6.4mm | BWG24-22 | ||
| 3/8"x3/8" | 10.6mmx10.6mm | BWG22-19 | ||
| 1/2"x1/2" | 12.7mmx12.7mm | BWG23-16 | ||
| 5/8"x5/8" | 16mmx16mm | BWG21-18 | ||
| 3/4"x3/4" | 19.1mmx19.1mm | BWG21-16 | ||
| 1"x1/2" | 25.4mmx25.4mm | BWG21-16 | ||
| 1-1/2"x1 1/2" | 38mmx38mm | BWG19-14 | ||
| 1"x2" | 25.4mmx12.7mm | BWG16-14 | ||
| 2"x2" | 50.8mmx50.8mm | BWG15-12 | ||
| 2"x4" | 101.6mmx101.6mm | BWG15-12 | ||
| 4"x4" | 101.6mmx152.4mm | BWG15-12 | ||
| 4"x6" | 101.6mmx152.4mm | BWG15-12 | ||
| 6"x6" | 152.4mmx152.4mm | BWG15-12 | ||
| 6"x8" | 15.4mmx203.2mm | BWG14-12 | ||
| Note:Special specification can be made according to customers requires. | ||||
| Welded wire mesh specification ( Standard length: 30m / roll , Width : 0.3m - 2.5m ) | |
| Opening in inch | Wire diameter (bwg) |
| 1/4 '' x 1/4 '' | 22 , 23, 24 |
| 3/8 '' x 3/8 '' | 19 , 20 , 21 , 22 |
| 1/2 '' x 1/2 '' | 16 , 17 , 18 , 19 ,20 , 21 , 22 , 23 |
| 5/8 '' x 5/8 '' | 18 , 19 , 20 , 21 |
| 3/4 '' x 3/4 '' | 16 , 17 , 18 , 19 , 20 , 21 |
| 1 '' x 1 '' | 16 , 17 , 18 , 19 |
| 1 '' x 1/2 '' | 16 , 17 , 18 , 19 , 20 , 21 |
| 1 '' x 1/4 '' | 14 , 15 , 16 , 18 |
| 1 '' x 2 '' | 14 , 15 , 16 |
| 2'' x 2 '' | 7, 8, 9 , 10 , 11,12 |
| 4'' x 4'' | 7, 8, 9 , 10 , 11,12 |
| 6'' x 6'' | 7, 8, 9 , 10 , 11,12 |
|
Specification of Welded Wire Mesh
|
||
|
Opening
|
Wire Diameter
BWG
|
|
|
In inch
|
In metric unit(mm)
|
|
|
1/4" x 1/4"
|
6.4 x 6.4mm
|
BWG24-22
|
|
3/8" x 3/8"
|
10.6x 10.6mm
|
BWG22-19
|
|
1/2" x 1/2"
|
12.7 x 12.7mm
|
BWG23-16
|
|
5/8" x 5/8"
|
16x 16mm
|
BWG21-18
|
|
3/4" x 3/4"
|
19.1 x 19.1mm
|
BWG21-16
|
|
1" x 1/2"
|
25.4x 12.7mm
|
BWG21-16
|
|
1-1/2" x 1-1/2"
|
38 x 38mm
|
BWG19-14
|
|
1" x 2"
|
25.4 x 50.8mm
|
BWG16-14
|
|
2" x 2"
|
50.8 x 50.8mm
|
BWG15-12
|
|
2" x 4"
|
50.8 x 101.6mm
|
BWG15-12
|
|
4" x 6"
|
101.6 x 152.4mm
|
BWG15-12
|
|
6" x 6"
|
152.4 x 152.4mm
|
BWG15-12
|
|
6" x 8"
|
152.4 x 203.2mm
|
BWG14-12
|
|
Roll Width: 0.4m to 2m; Roll Length: 5m,10m,30m,etc
|
||
|
Material: galvanized, PVC coated, stainless steel
|
||
|
Note: Special specifications can be made according to customers requires
|
||
WELDED WIRE MESH FEATURE:
* Smooth mesh surface
* Well-proportioned meshes
* Strong welded points and bright luster
* Solder joint firm
* Anti-corrosive and anti-rust.
* Strong antiseptic antioxidant
* firm structure, even if local cutting section or partial pressure also does not happen slacken off phenomenon.
