Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Wire | Application: | Protecting Mesh Fencing |
|---|---|---|---|
| Technique: | Perforated Woven | Color: | Black White Yellow |
| Surface Treatment: | Hot Dipped Galvanized | Advantage: | Rich Experience Good Worker |
| High Light: | hdg welded wire mesh panel,1/4 inch welded wire mesh panel,1/4 inch welded wire fence panels |
||

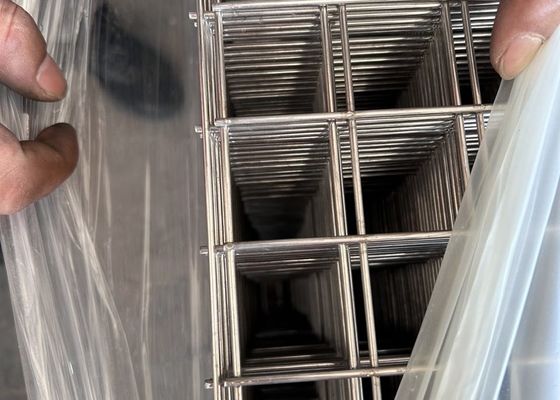

Hot Dipped Galvanised Welded Wire Mesh Panel/Welded Wire Netting
Welded wire mesh is high quality low carbon steel wire welded row, and then cold plating (electroplating), hot galvanized, PVC coated surface passivation, plastics processing. To achieve smooth surface, uniform mesh, strong joints, local good mechanical properties, stability, corrosion, corrosion resistance.

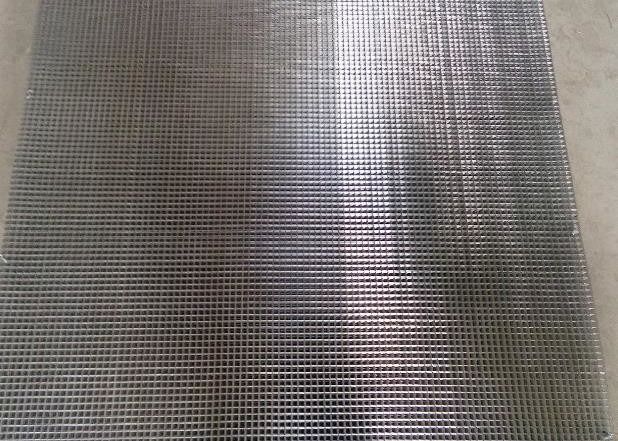

We present a selection of highly sought-after specifications for stainless steel welded wire mesh, catering to the specific requirements of our valued users. The opening sizes span from approximately 6" to 1", paired with diameter wires that are widely favored by our customers. These meticulously crafted specifications are available in sheet form.

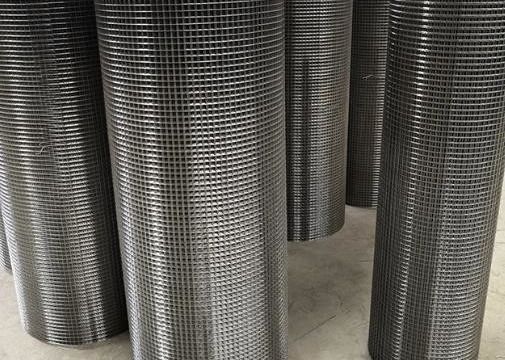

Additionally, we offer specifications with opening sizes ranging from approximately 1" to 1/4", featuring diameter wires commonly embraced by the majority of our esteemed clientele. These specifications are thoughtfully manufactured in roll form, ensuring easy handling.Welded mesh is available in widths of 36", 48", and 60".
| Opening Size | Opening Size (mm) | Wire Diameter | Wire Diameter (mm) | Common Uses |
| 1/4 inch | 6.35 mm | 23 gauge | 0.64 mm | Chicken coops, rabbit cages, dog kennels, etc. |
| 1/2 inch | 12.7 mm | 19 gauge | 1.07 mm | Plastering, fencing, sieving, etc. |
| 3/4 inch | 19.05 mm | 16 gauge | 1.65 mm | Gardening, decoration, protection, etc. |
| 1 inch | 25.4 mm | 14 gauge | 2.11 mm | Fencing, partitioning, sieving, etc. |
| 2 inch | 50.8 mm | 12 gauge | 2.77 mm | Fencing, partitioning, sieving, etc. |
| 3 inch | 76.2 mm | 10 gauge | 3.40 mm | Fencing, partitioning, sieving, etc. |
| 4 inch | 101.6 mm | 8 gauge | 4.19 mm | Fencing, partitioning, sieving, etc. |
Material : Low carbon steel wire, Stainless steel 302, 304, 304L, 316 316L ,Special materials, specifications can be customized according to customer requirements
Type : Hot-dipped Galvanized Welded Wire Mesh
Eletric Galvanized Welded wire mesh
PVC Coated Welded wire mesh
Redrawing wire Welded wire mesh
Stainless Steel Welded Wire Mesh
sizes:
| Specification | ||||
| Opening | Wire Diameter | Width 0.4-2m Length 5-50m |
electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
| Inch | Metric Unit | |||
| 1/4"x1/4" | 6.4mmx6.4mm | BWG24-22 | ||
| 3/8"x3/8" | 10.6mmx10.6mm | BWG22-19 | ||
| 1/2"x1/2" | 12.7mmx12.7mm | BWG23-16 | ||
| 5/8"x5/8" | 16mmx16mm | BWG21-18 | ||
| 3/4"x3/4" | 19.1mmx19.1mm | BWG21-16 | ||
| 1"x1/2" | 25.4mmx25.4mm | BWG21-16 | ||
| 1-1/2"x1 1/2" | 38mmx38mm | BWG19-14 | ||
| 1"x2" | 25.4mmx12.7mm | BWG16-14 | ||
| 2"x2" | 50.8mmx50.8mm | BWG15-12 | ||
| 2"x4" | 101.6mmx101.6mm | BWG15-12 | ||
| 4"x4" | 101.6mmx152.4mm | BWG15-12 | ||
| 4"x6" | 101.6mmx152.4mm | BWG15-12 | ||
| 6"x6" | 152.4mmx152.4mm | BWG15-12 | ||
| 6"x8" | 15.4mmx203.2mm | BWG14-12 | ||
| Note:Special specification can be made according to customers requires. | ||||
| Welded wire mesh specification ( Standard length: 30m / roll , Width : 0.3m - 2.5m ) | |
| Opening in inch | Wire diameter (bwg) |
| 1/4 '' x 1/4 '' | 22 , 23, 24 |
| 3/8 '' x 3/8 '' | 19 , 20 , 21 , 22 |
| 1/2 '' x 1/2 '' | 16 , 17 , 18 , 19 ,20 , 21 , 22 , 23 |
| 5/8 '' x 5/8 '' | 18 , 19 , 20 , 21 |
| 3/4 '' x 3/4 '' | 16 , 17 , 18 , 19 , 20 , 21 |
| 1 '' x 1 '' | 16 , 17 , 18 , 19 |
| 1 '' x 1/2 '' | 16 , 17 , 18 , 19 , 20 , 21 |
| 1 '' x 1/4 '' | 14 , 15 , 16 , 18 |
| 1 '' x 2 '' | 14 , 15 , 16 |
| 2'' x 2 '' | 7, 8, 9 , 10 , 11,12 |
| 4'' x 4'' | 7, 8, 9 , 10 , 11,12 |
| 6'' x 6'' | 7, 8, 9 , 10 , 11,12 |
|
Specification of Welded Wire Mesh
|
||
|
Opening
|
Wire Diameter
BWG
|
|
|
In inch
|
In metric unit(mm)
|
|
|
1/4" x 1/4"
|
6.4 x 6.4mm
|
BWG24-22
|
|
3/8" x 3/8"
|
10.6x 10.6mm
|
BWG22-19
|
|
1/2" x 1/2"
|
12.7 x 12.7mm
|
BWG23-16
|
|
5/8" x 5/8"
|
16x 16mm
|
BWG21-18
|
|
3/4" x 3/4"
|
19.1 x 19.1mm
|
BWG21-16
|
|
1" x 1/2"
|
25.4x 12.7mm
|
BWG21-16
|
|
1-1/2" x 1-1/2"
|
38 x 38mm
|
BWG19-14
|
|
1" x 2"
|
25.4 x 50.8mm
|
BWG16-14
|
|
2" x 2"
|
50.8 x 50.8mm
|
BWG15-12
|
|
2" x 4"
|
50.8 x 101.6mm
|
BWG15-12
|
|
4" x 6"
|
101.6 x 152.4mm
|
BWG15-12
|
|
6" x 6"
|
152.4 x 152.4mm
|
BWG15-12
|
|
6" x 8"
|
152.4 x 203.2mm
|
BWG14-12
|
|
Roll Width: 0.4m to 2m; Roll Length: 5m,10m,30m,etc
|
||
|
Material: galvanized, PVC coated, stainless steel
|
||
|
Note: Special specifications can be made according to customers requires
|
||
WELDED WIRE MESH FEATURE:
* Smooth mesh surface
* Well-proportioned meshes
* Strong welded points and bright luster
* Solder joint firm
* Anti-corrosive and anti-rust.
* Strong antiseptic antioxidant
* firm structure, even if local cutting section or partial pressure also does not happen slacken off phenomenon.
