| High Light: | double strand barbed wire making machine,ordinary barbed wire making machine,70kg/hour barbed wire machine |
||
|---|---|---|---|
Double-Strand Ordinary Barbed Wire Machine
| Barbed wire machine specifications | |
| Name | Double-strand ordinary barbed wire machine |
| Model | CS-A |
| Motor power | 3KW |
| Twist number | 2.5 |
| Main wire diameter | 2.2mm-2.8mm |
| Barbe wire diameter | 1.8mm-2.2mm |
| Output production | 70KG/hour |
| Barbe distance | 7.5-10-12.5-15cm |
| weight | 1000KG |
|
Machine dimension |
Main part:1900mm×1300mm×980mm Assistant part:1800mm×750mm×980mm
|
| The machine contains: |
Main 1set Assistant 1set Racks 4pcs Wearing parts of devices(1 piercing head, 1 conveying rod, 1 pair of groove knives) |
| quality-guarantee period | 1year(Except for wearing parts) |
| Packing | Wood case |
|

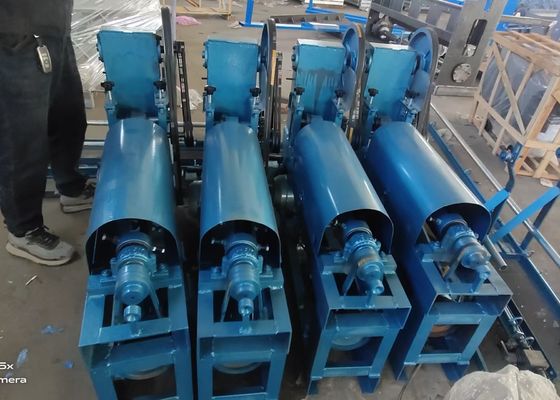

Machine photo |
 |
| Payment terms | 30%TT in advance, balance before loading. |
| Leadtime | 15days |
| Packing method | Plastic film inside Outer wooden case packing |
| Labor requirements | 1person |
| Machine life | More than 10 years |
| Barbed wire machine specifications | |
| Name | Double-strand forward and reverse twisting barbed wire machine |
| Mold | CS-C |
| Motor power | 2.2KW |
| Twist number | 4 or 6 |
| Main wire diameter | 1.6-2.3mm |
| Barbe wire diameter | 1.6-2.0 mm |
| Output | 50KG/hour |
| Barbe distance | 7.5-10-12.5-15 |
| Weight | 1000KG |
|
Machine dimension |
Main part:1900mm×1300mm×980mm Assistant part:1300mm×800mm×700mm
|
| The machine contains: |
Main 1set Racks 4pcs Wearing parts of devices(1 piercing head 1 pair of groove knives) |
| quality-guarantee period | 1year(Except for wearing parts) |
| Packing | Wood case |
|
Machine photo |
|
| Payment terms | 30%TT in advance, balance before loading. |
| Leadtime | 15days |
| Packing method | Plastic film inside Outer wooden case packing |
| Labor requirements | 1person |
| Machine life | More than 10 years |
