Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Wire | Mesh Opening: | 12 × 12, 20 × 20, 25 × 25, 12 × 25mm |
|---|---|---|---|
| Wire Diameter: | 0.4mm - 1.5mm | Roll Width: | 0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m |
| Roll Length: | 15M,30M,50M Ect | Surface Treatment: | Hot Dipped Galvanized Or Electric Galvanized |
| Model Number: | Xx-01001 | Application:: | Fence Mesh |
| High Light: | 15 * 15 cm welded wire mesh panel,carbon construction welded wire mesh panel,15 x15 cm welded wire fence panels |
||

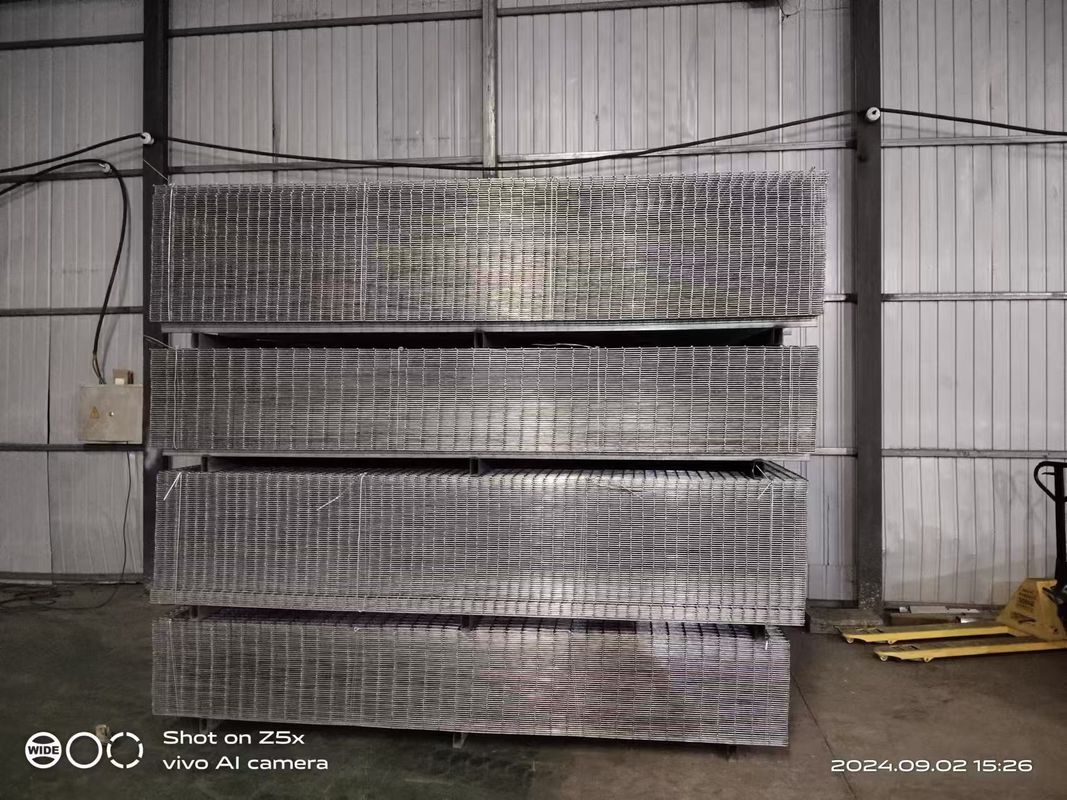

15 * 15 Cm Low Carbon Steel Construction Use Welded Wire Mesh Panel For Canada Market

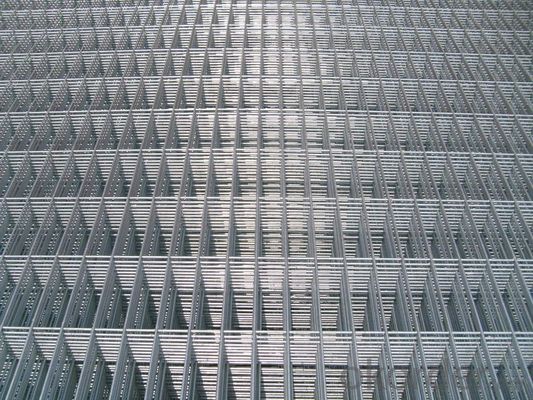

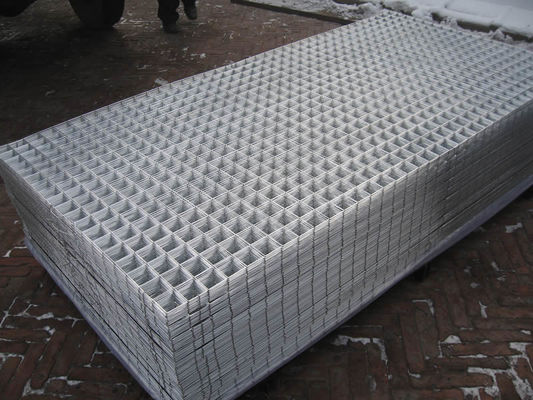

This kind of welded wire mesh panel is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.
Hot dipped zinc coated welded wire mesh panel is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.
Hot Dipped Galvanized After/Before Welding;
Electro Galvanized After/Before Welding;
PVC Coating With Green, Black, Color, Etc.
Welded Mesh made of Stainless Steel Wire.
Product Specification of welded wire mesh:
| Welded wire mesh specification ( Standard length: 1m - 6m / pc , Width : 0.3m - 2.5m ) | |
| Opening in inch | Wire diameter (bwg) |
| 1 '' x 1 '' | 16 , 17 , 18 , 19 |
| 1 '' x 1/2 '' | 16 , 17 , 18 , 19 , 20 , 21 |
| 1 '' x 1/4 '' | 14 , 15 , 16 , 18 |
| 1 '' x 2 '' | 14 , 15 , 16 |
| 2'' x 2 '' | 7, 8, 9 , 10 , 11,12 |
| 4'' x 4'' | 7, 8, 9 , 10 , 11,12 |
| 6'' x 6'' | 7, 8, 9 , 10 , 11,12 |
| 8'' x 8'' | 7, 8, 9, 10, 11, 12 |
| 10'' x 10'' | 7, 8, 9, 10, 11, 12 |
| 12'' x 12'' | 7. 8, 9, 10 |
| 15'' x15'' | |
Product Characters of welded wire mesh :
1 . Excellent heat resistant and high intensity .
2 . High strength and strong integration .
3 . Flat and smooth surface combined with firm structure .
4 . Perfect Anti - Rust Property .
5 . Stay Holistiv even cut into fragmented parts .
6 . Long Using Life
7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.
Product Application of welded wire mesh:
It is very popular in breeding industry: Can be made into floor heating, contruction use, various animal cages or fences for breeding with its excellent anti-corrosion property. The zinc coating offers a kind of decorative outlook with its flat surface.
With first-class anti-corrosion property, it is widely used in mine sieving industries as sieving screen. The low carbon steel wire for making of hot-dipped welded wire mesh offers flexibility that can be made in many further fabrication applications.
Product Characters of welded wire mesh :
1 . Excellent heat resistant and high intensity .
2 . High strength and strong integration .
3 . Flat and smooth surface combined with firm structure .
4 . Perfect Anti - Rust Property .
5 . Stay Holistiv even cut into fragmented parts .
6 . Long Using Life
7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.
