| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Field Installation,commissioning And Training | Wire Diameter: | 2.5mm-4mm,0.45-2.6mm |
|---|---|---|---|
| Welding Speed: | 40-60times/min | Application: | Mesh Fence/construction,for Making Chain Link Fence |
| Width: | 2-4m | Mesh Size: | Can Be Customizable |
| Mesh Width: | 2500mm(customzied) | Control System: | PLC+touch Screen |
| Mesh Type: | Rolling Mesh | Warranty: | 2 Years |
| Color: | Can Be Customized,Customer's Requirement | ||
| Highlight: | woven wire mesh crimping machine,adjustable width wire mesh crimping machine |
||
Woven Technique Wire Mesh Crimping Machine Adjustable Width 2 - 20mm Mesh
1. Our machines could produce wire diameter range from 0.4 to 12 mm and width 1000 – 2500 mm 3 series,10kinds specifications crimped wire mesh machine .
2. Our machines could produce every kind of high quality common curl type, plain crimped, intermediate crimped, lock crimped, flat top crimped.
3. This series of machine widely used for every technical-net, warehouse fence mesh, vibrating screen, wall net building etc.
| Weaving Breadth(mm) | Overall Dimensions(mm) | Overall dimensions(KW) | Matched power(kg) |
| 1000mm | 2500mmx2000mmx1500mm | 0.75 | 800 |
| 1200mm | 2800mmx2000mmx1500mm | 1.1 | 1000 |
| 1300mm | 3200mmx2000mmx1500mm | 1.1 | 1100 |
| 1500mm | 3500mmx2500mmx1700mm | 1.5 | 1250 |
| 1800mm | 4000mmx2500mmx1700mm | 1.5 | 1500 |
| 2000mm | 4200mmx3000mmx1800mm | 2.2 | 1800 |
| 2300mm | 4500mmx3000mmx1800mm | 2.2 | 2000 |
Simple structure and easy operation, high working speed and low noise.
Mechanical Parameters:
1: Dimensions:
Length: 1900mm
Width: 1300 Mm
Height: 1350mm
2: Motor Power
Wire Rolling Motor: 7.5kw
Broken Wire Motor: 3kw
3: The Speed Is Adjustable

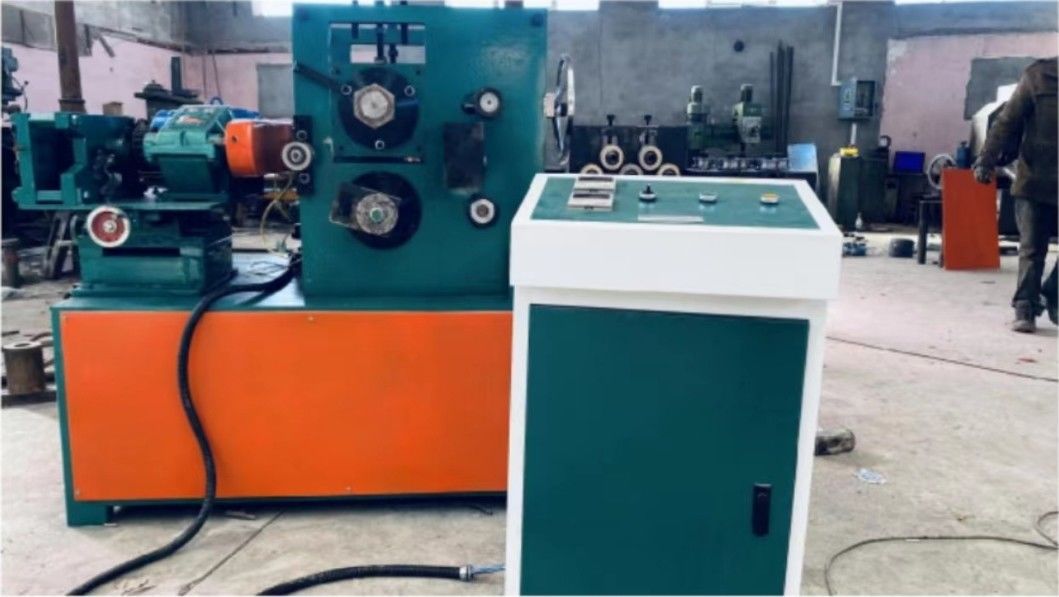

Product Introduction: The Wire Rolling Part Of The Broken Wire Machine Is Made Of 40mm Thickness Steel Plate Wire Cutting Processing, So That The Two Wire Rolling Shafts Are In a Center Line Up And Down, Saving The Trouble Of Adjusting The Upper Shaft Left And Right, And The Rear Part Adopts 4 Guide Wheel Transmission, So That The Mold Range Is Between 240mm-300mm, Which Is Convenient To Make The Mold More Accurate, And There Will Be No More Mesh Error.
The Broken Wire Part Is Made Of 30mm Thick Steel Plate Wire Cutting Processing, And The Broken Wire Material Is Made Of White Steel Knife, Which Is Easy To Change And Hard In Strength.
The Wire Feeding Part Is Made Of 30mm Thickness Cold-Drawn Steel Wire Cutting Processing, And The Pulley Makes The Steel Wire Release The Coiling Force Of The Coiled Wire Before Entering The Mold, And Then Achieves a Slight Straightening Effect.
In Terms Of Electric Power, The Wire Rolling Mill Adopts a 7.5kw Inverter Brake Motor, And The Inverter Adopts 11kw To Make It Not Cause Torque Protection, And The Speed Is Acceptable
To Regulate.

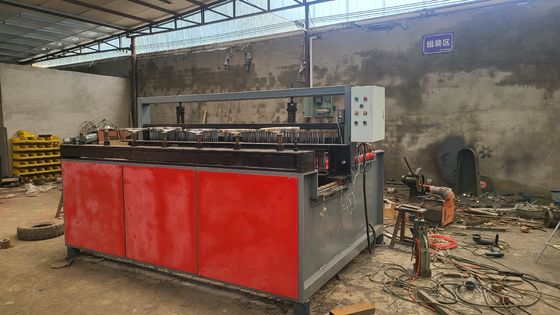

The weaving range of the braiding machine is 3000mm
Length 3500mm
Width 2150mm
Height 1800mm
Hydraulically driven, motor power 11kw
Weight 2000kg
