Plc Control Heavy Duty Gabion Box Machine For Hexagonal Wire Mesh

Large Image : Plc Control Heavy Duty Gabion Box Machine For Hexagonal Wire Mesh

Product Details:

Place of Origin:	China
Brand Name:	QIJIE
Certification:	ISO SGS
Model Number:	QJ-CL-032

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	USD 10000/SET
Delivery Time:	15 working days
Payment Terms:	TT,LC,
Supply Ability:	1000/pcs

Contact Now

Detailed Product Description

After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Field Installation,commissioning And Training	Wire Diameter:	2.5mm-4mm,0.45-2.6mm
Welding Speed:	40-60times/min	Application:	Mesh Fence/construction,for Making Chain Link Fence
Width:	2-4m	Mesh Size:	Can Be Customizable
Mesh Width:	2500mm(customzied)	Control System:	PLC+touch Screen
Mesh Type:	Rolling Mesh	Warranty:	2 Years
Color:	Can Be Customized,Customer's Requirement	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	plc control gabion box machine , hexagonal wire mesh gabion box machine , heavy duty gabion box making machine

PLC Control Heavy Duty Hexagonal Wire Mesh Gabion Box Machine

I Machine Description

1. Gabion mesh machine is also known as a heavy-duty hexagonal wire mesh machine, which is the professional equipment to produce hexagonal wire mesh.

2. The heavy-duty hexagonal wire mesh machine, produced by our company is a special braiding machine to fabricate hexagonal meshwork, which is a newly developed market-suitable product integrating the merits of domestic and oversea products.

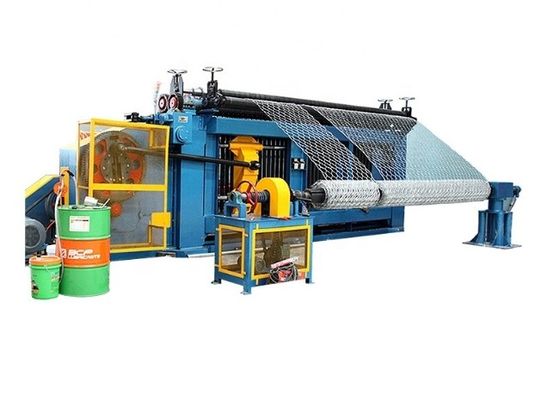

Machine Image

Servo motor to drive weaving process, more precise, adjustable speed, running fast, less noise.

Inching / Single-step control button, easy to operate.

Extra alarm to stop machine (when wire/ mesh broken, or set numbers finished).

Automatically wind up mesh into rolls.

Can weave 2-4 nets with the same machine.

Automatically central lubrication system to reduce machine damages;

Plc Control Heavy Duty Gabion Box Machine For Hexagonal Wire Mesh 0

Technical Parameter

Mesh Size (mm)	Max. Netting (mm)	Max.Dia of Weaving wire (mm)	Max.Dia of Bordering wire (mm)	Max Weaving- vein No.	Power (kw)	Exact Manu -facturing Speed		Exterior Size (m)	Weight (T)
Mesh Size (mm)	Max. Netting (mm)	Max.Dia of Weaving wire (mm)	Max.Dia of Bordering wire (mm)	Max Weaving- vein No.	Power (kw)	Mesh Hole netting Count/Minute	Meter /Hour	L×W×H	Weight (T)
80×100	2500	3.2	4.0	3/5	11	42	170	5.2×1.4×2.4	13
	3500	3.2	4.0	3/5	15	42	170	6.2×1.4×2.4	14
	4500	3.2	4.0	3/5	30	42	170	7.2×1.4×2.4	15
100×120	2500	3.5	4.0	3/5	11	42	195	5.2×1.4×2.4	13
	3500	3.5	4.0	3/5	15	42	195	6.2×1.4×2.4	14
	4500	3.5	4.0	3/5	30	42	195	7.2×1.4×2.4	15
60×80	2700	3.5	4.0	3/5	11	42	150	5.2×1.4×2.4	13
	3700	3.5	4.0	3/5	15	42	150	6.2×1.4×2.4	14
	4700	3.5	4.0	3/5	30	42	150	7.2×1.4×2.4	15

Finished Product:
Our gabion machine is used for manufacturing heavy-duty hexagonal wire netting to make stone cages, which is widely used to protect and support the seawall, hillsides, road and bridge, and so on.

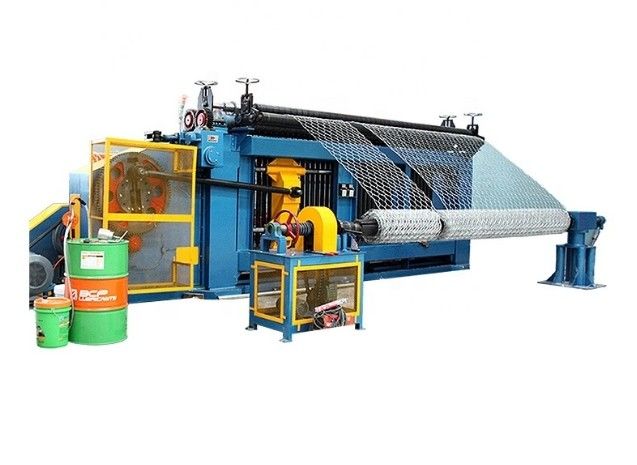

Plc Control Heavy Duty Gabion Box Machine For Hexagonal Wire Mesh 1
