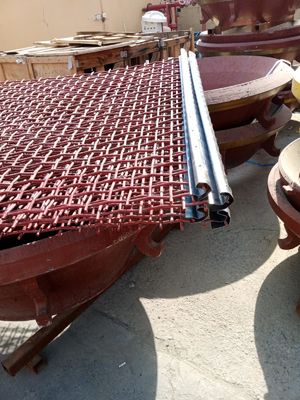

200t-3200mm Cnc Bending Machine For Vibrating Screen Mesh Hooks

200t-3200mm Cnc Bending Machine For Vibrating Screen Mesh Hooks
200t-3200mm Cnc Bending Machine For Vibrating Screen Mesh Hooks

Large Image :  200t-3200mm Cnc Bending Machine For Vibrating Screen Mesh Hooks

Product Details:
Place of Origin: China
Brand Name: QIJIE
Certification: ISO SGS
Model Number: QJ-CL-032
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: USD 10000/SET
Delivery Time: 15 working days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 6 set/month
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Field Installation,commissioning And Training Wire Diameter: 2.5mm-4mm,0.45-2.6mm
Welding Speed: 40-60times/min Application: Mesh Fence/construction,for Making Chain Link Fence
Width: 2-4m Mesh Size: Can Be Customizable
Mesh Width: 2500mm(customzied) Control System: PLC+touch Screen
Mesh Type: Rolling Mesh Warranty: 2 Years
Color: Can Be Customized,Customer's Requirement
High Light:

3200mm cnc bending machine


vibrating screen mesh cnc bending machine

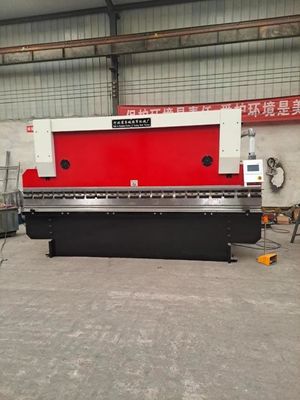

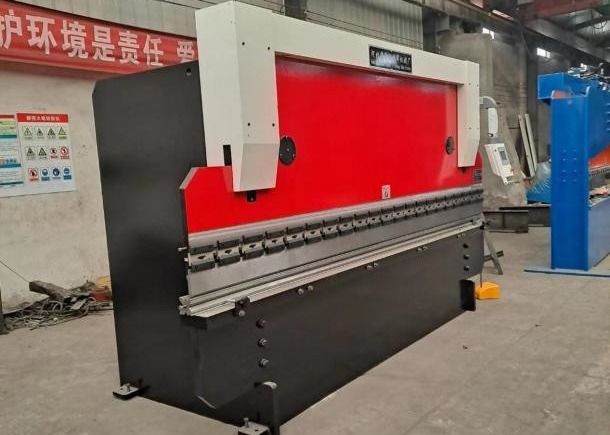

200T-3200mm CNC Bending Machine Parameters For Vibrating Screen Mesh Hooks


I Machine Description

The machine body is in Overall welded and overall processed structure en ANSYS finite element analysis software is applied to main parts of the machine body for analysis which has ensured the reliability of machine tool and the precision of entire machine.
Closed lop control mode composed of electric hydraulic servo valve imported from Germany
and imported grating ruler is adopted for the main oil cylinders on both Sides to break through
the stroke control pattern of traditional bending machines of mechanical stopper type typical of
high feed back precision for position of gliding block accurate and stable operation good synchronization performance and high repeated positioning precision of gliding block.
Imported parts are used for all the functional parts in the rear stopper to ensure the stopping
precision of rear stopper and the mechanism of rear stopper with multiple stopper shafts for more complete functions is employed up to customer requirements.
Integrated control system imported from Germany is adopted for the whole hydraulic system to simplify the installation of pipelines and 10 ensures stable operation as well as simple and nice
appearance of the machine tool.
C shaped plates are fitted on both sides of the machine body and the high- precision grating ruler is. Mounted on the C shaped plates thus to avid the Influence over bending precision arising from distortion of machine body during bending process.
The lower workbench is fitted with automatic compensation mechanism for hydraulic deflection to achieve an effective dead zone free compensation with high bending precision and long stability guaranteed.
The numeric control system refers to the numeris-control system special for electric hydraulic servo bending machines of ltalian ESA Netherland DELEM or Swiss CYBELEC Companies able to achieve the functions of graphic programming for bending angle compensation for angle amendment automatic calculation and adjustment of bending pressure automatic calculation of compensation for workbench distortion extending length of work pieces bending pressure for sole pressing open distance and automatic with drawal of rear stopper etc.




200T-3200mm CNC bending machine parameters

Nominal Power: 2000KN

Pillars distance: 2300mm

Depth of the throat: 500mm

Rear -blocking itinerary: 500mm

Oil pump pressure: 25KP

Oil pump displacement: 50m/s

Oil cylinder caliber: φ220mm

Electric: 15 kWh

Dimensions: 3200mmx1800mmx2500mm

Self -weight: 12000 kg

CNC system: dual servo TP10 system

Rear -blocking material: roller screw, linear guide rail, 4 blocking materials

Mold: 3200x110x110mm 1

810x150x30mm 4 pieces


CNC Bending Machine


Technical Parameter
Type 63T/2500 80T/3200 100T/3200 160T/3200 200T/3200 250T/3200 320T/3200
Nominal force(KN) 630 800 1000 1600 2000 2500 3200
Bending length(MM) 2500 3200 3200 3200 3200 3200 3200
Slider Travel(MM) 150 150 200 200 200 200 200
Throat Depth(MM) 350 350 400 400 400 400 400
Power(KW) 5.5 7.5 7.5 11 15 15 18.5
Back gauge travel(MM) 500 500 500 500 500 500 500
Back gauge speed(MM/S) 100 100 100 100 100 100 100
Dimension(MM) 3100x1450x2050 3500x1550x2100 3500x1580x2400 3500x1650x2500 3500x1680x2550 2500x1700x2600 3500x1800x2730
