Product Details:
Payment & Shipping Terms:
|
Features: | High Tensile Strength, Good Flexibility, Corrosion Resistance | Advantage: | Strong Corrosion Resistance |
---|---|---|---|
Barb Length: | 10mm-65mm | Coil Weight: | 7 Kgs |
Color: | Silver | Diameter: | 0.5mm-4.5mm |
Galvanised Zinc: | Binding Wire | Gauge: | 3.0mm, 2.5mm,2.0mm |
Material: | Low Carbon Steel Wire | Size: | 12.7mm(0.5 |
Structure: | 6x36ws+IWRC | Surface: | Galvanized |
Technique: | Twist | Wire Diameter: | 0.5mm-5.0mm |
Wire Gauge: | 0.7mm-4.0mm | ||
Highlight: | 3.0mm electro galvanized wire,u type electro galvanized wire |
High Quality Low Price PVC &Electro Galvanized U Type Cut Tie Wire

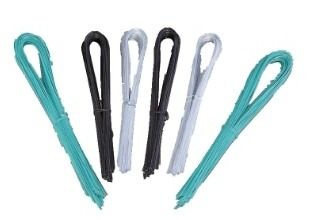

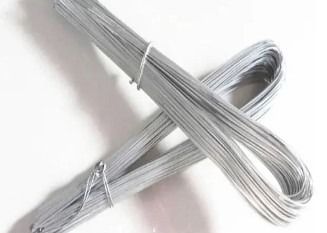

U Type Steel Wire
U type wire is a kind of tie wire, which is made by iron wire, annealed wire, galvanized wire and PVC coated wire, etc. Its
forming process is cutting the straight wires into certain U type sizes. Because of the PVC coated or galvanized surface, U type wire has good anti-corrosion and anti-oxidization. In addition, with a long service life, U type wire is widely applied to fix daily subjects, tie flowers, strengthen plant landscape, making handicrafts and industrial construction tying, etc.
Wire Gauge # | SWG | BWG | ||
inch | mm | inch | mm | |
6 | 0.192 | 4.88 | 0.203 | 5.16 |
7 | 0.176 | 4.47 | 0.179 | 4.57 |
8 | 0.16 | 4.06 | 0.164 | 4.19 |
9 | 0.144 | 3.66 | 0.147 | 3.76 |
10 | 0.128 | 3.25 | 0.134 | 3.40 |
11 | 0.116 | 2.95 | 0.12 | 3.05 |
12 | 0.104 | 2.64 | 0.109 | 2.77 |
13 | 0.092 | 2.34 | 0.095 | 2.41 |
14 | 0.081 | 2.03 | 0.083 | 2.11 |
15 | 0.072 | 1.83 | 0.072 | 1.83 |
16 | 0.064 | 1.63 | 0.065 | 1.65 |
17 | 0..056 | 1.42 | 0.058 | 1.47 |
18 | 0.048 | 1.22 | 0.049 | 1.24 |
19 | 0.04 | 1.02 | 0.042 | 1.07 |
20 | 0.036 | 0.92 | 0.035 | 0.89 |
21 | 0.032 | 0.81 | 0.031 | 0.81 |
22 | 0.028 | 0.71 | 0.028 | 0.71 |
23 | 0.024 | 0.61 | 0.025 | 0.64 |
24 | 0.023 | 0.56 | 0.023 | 0.56 |
25 | 0.02 | 0.51 | 0.020 | 0.51 |
26 | 0.018 | 0.46 | 0.018 | 0.46 |
