Product Details:
Payment & Shipping Terms:
|
Material: | Wire Mesh | Mesh Size: | 2mm-100mm |
---|---|---|---|
Application: | Conveyor Belt | Surface Treatment: | Galvanized, PVC Coated |
Color: | Silver, Green, Black, Etc. | Port Of Loading: | Shanghai, Ningbo, Etc. |
Width: | 0.5m-2.5m | Edge Treatment: | Welded, Cut Edge |
Highlight: | Food Baking Conveyor Belt Wire Mesh,Flat Wire Mesh Conveyor Belting |

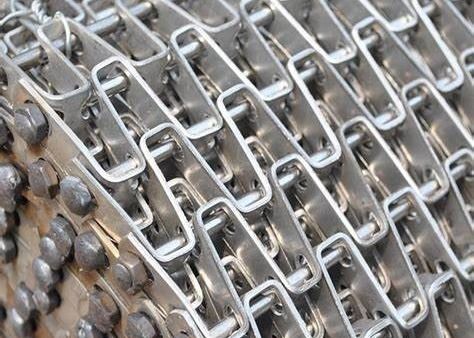

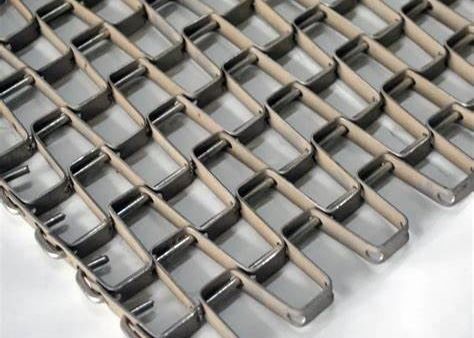

T -316 Stainless Steel Flat Wire Mesh Conveyor Belting For Food Baking
Flat wire belts made from slat strip ,with very good open area, heavy load work capacity and fast movement.
Application:
Washing, drying, cooling, heat treatment of the conveyor line, food and bread lines, refrigeration machinery in the spiral tower transport, spraying, cleaning machinery and heavy transport machinery in general use;
Widely used in industrial field of sterilization machine, silk printing and dyeing, food, pharmaceutical, power generation, garment processing industries such as transportation.
Materials:
Carbon steel, ss420,ss304 or ss316. with good performance of high temperature and corrosion resistance.
Product Description
Item: standard duty flat wire belts.
Rod diameter: 3 mm, 4 mm, 5 mm, 6 mm, 8 mm.
Cross rod: 11 & 12 gauge.
Flat strip: 9.52 mm wide x 1.17 mm thick, round edge.
Spiral pitch: 12.7 mm to 40 mm.
Rod pitch: 12.7 mm, 25.4 mm, 38.1 mm, 50.8 mm.
Belt width: 200 mm to 4, 000 mm.
E dge style: clinched edge or welded edge.
Material available for flat wire belting: Carbon steel, SS 201, SS 304, SS 316.
Flat Wire Mesh Belt Product Material:
carbon steel, galvanized iron wire, spring steel wire, corrosion-resistant and high-temperature resistant stainless steel materials (304, 310, 310S, 314, 316, 316L, 430, etc.) A3 low-carbon steel, 45 # steel, 1Cr13 heat-resistant steel, 201 stainless steel 304 stainless steel 1Cr18Ni9Ti stainless steel 0Cr18Ni14NO2CU2 heat-resistant acid-resistant steel
Item No. | Mesh | Flat strip | Cross rod | Edge Finish | Width | |
Min. | Max. | |||||
Inch | inch | gauge | inch | inch | ||
SFW01 | 1× 1 | 3/8 × 0.046 | 11 & 12 | Clinched edge | 4.5 | 240 |
SFW02 | 1/2× 1 | 3/8 × 0.046 | 11 & 12 | Clinched edge | 4.125 | 240 |
SFW03 | 1/2× 1 Modified | 3/8 × 0.046 | 11 & 12 | Clinched edge | 4.125 | 240 |
SFW04 | 3/4× 1 | 3/8 × 0.046 | 11 & 12 | Clinched edge | 4.5 | 240 |
SFW05 | 1× 1 | 3/8 × 0.046 | 11 & 12 | Welded edge | 3 | 240 |
SFW06 | 1/2× 1 | 3/8 × 0.046 | 11 & 12 | Welded edge | 3.25 | 240 |
SFW07 | 1/2× 1 Modified | 3/8 × 0.046 | 11 & 12 | Welded edge | 3.25 | 240 |
Advantages of stainless steel honeycomb mesh belt
open mesh for easy drainage and flow of air, or liquids through the belt
flat surface
easily cleanable
endless splicing
positive sprocket drive
easy to replace a section that is damaged or worn down
Economical versus woven wire belts.
Applications: Commonly used in washing, drying, cooling, heat treatment conveyor lines, food bread lines, spiral tower conveyors in refrigeration machinery, spray coating, cleaning machinery and heavy-duty conveying machinery.
